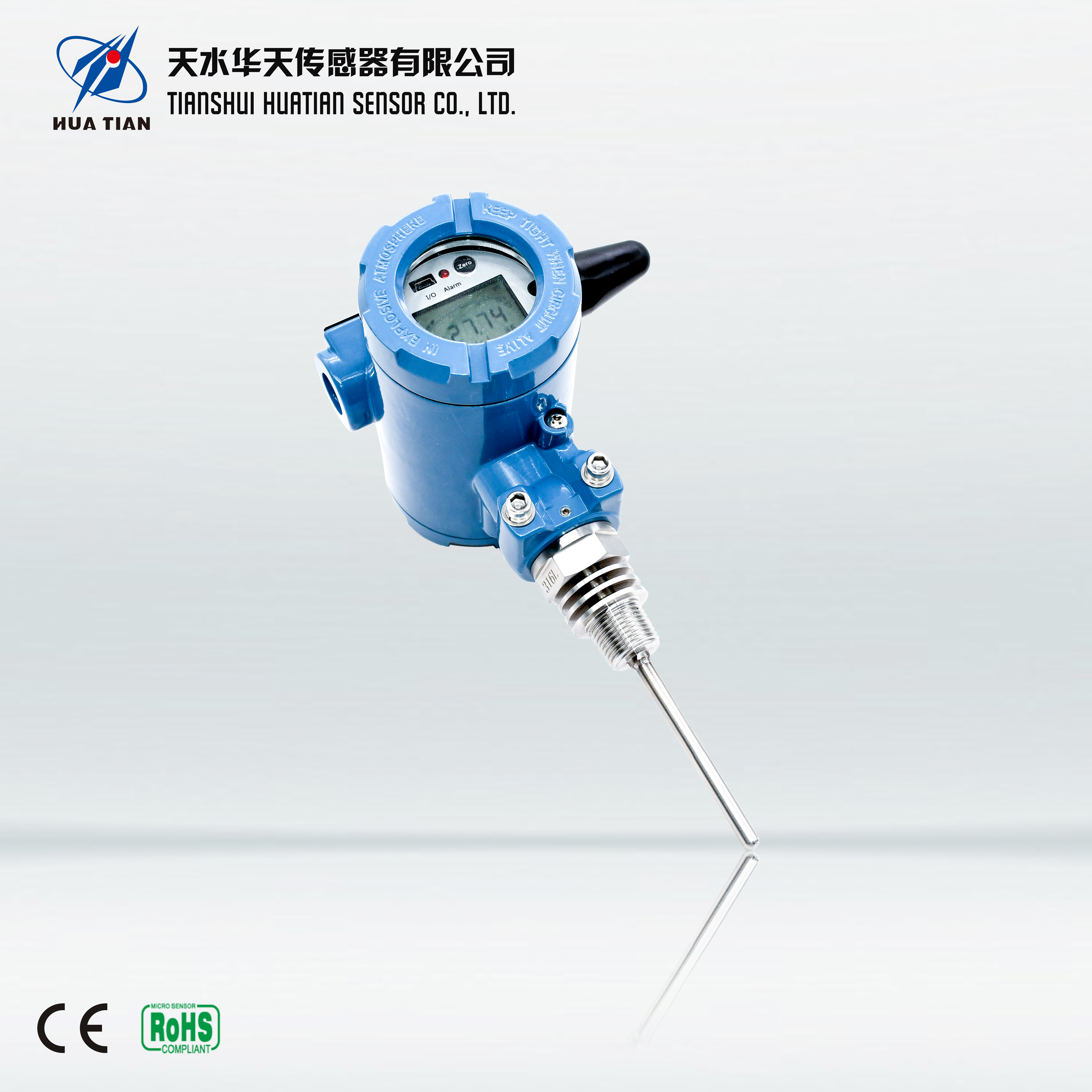

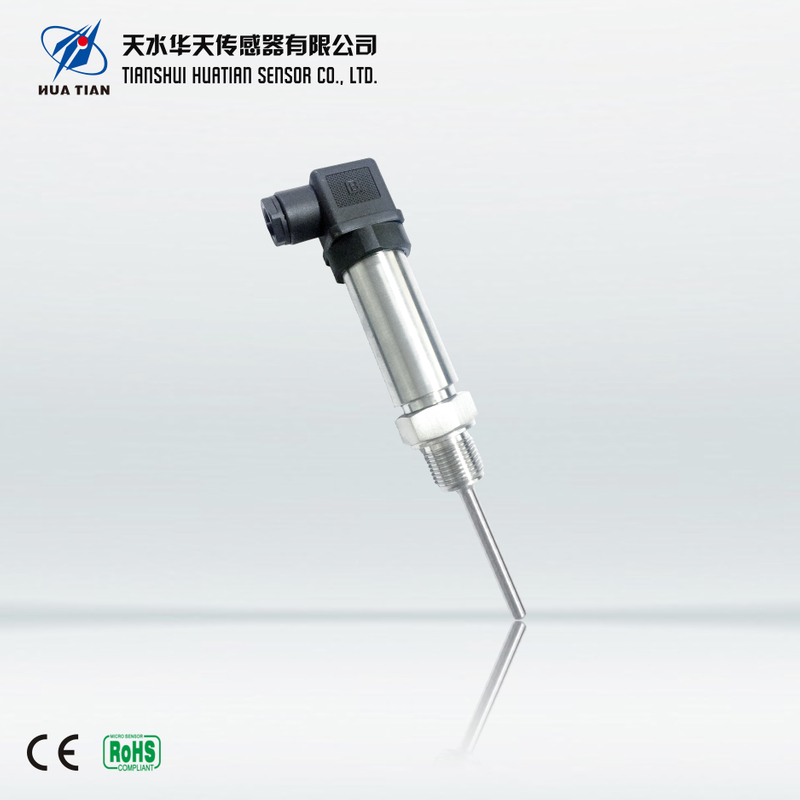

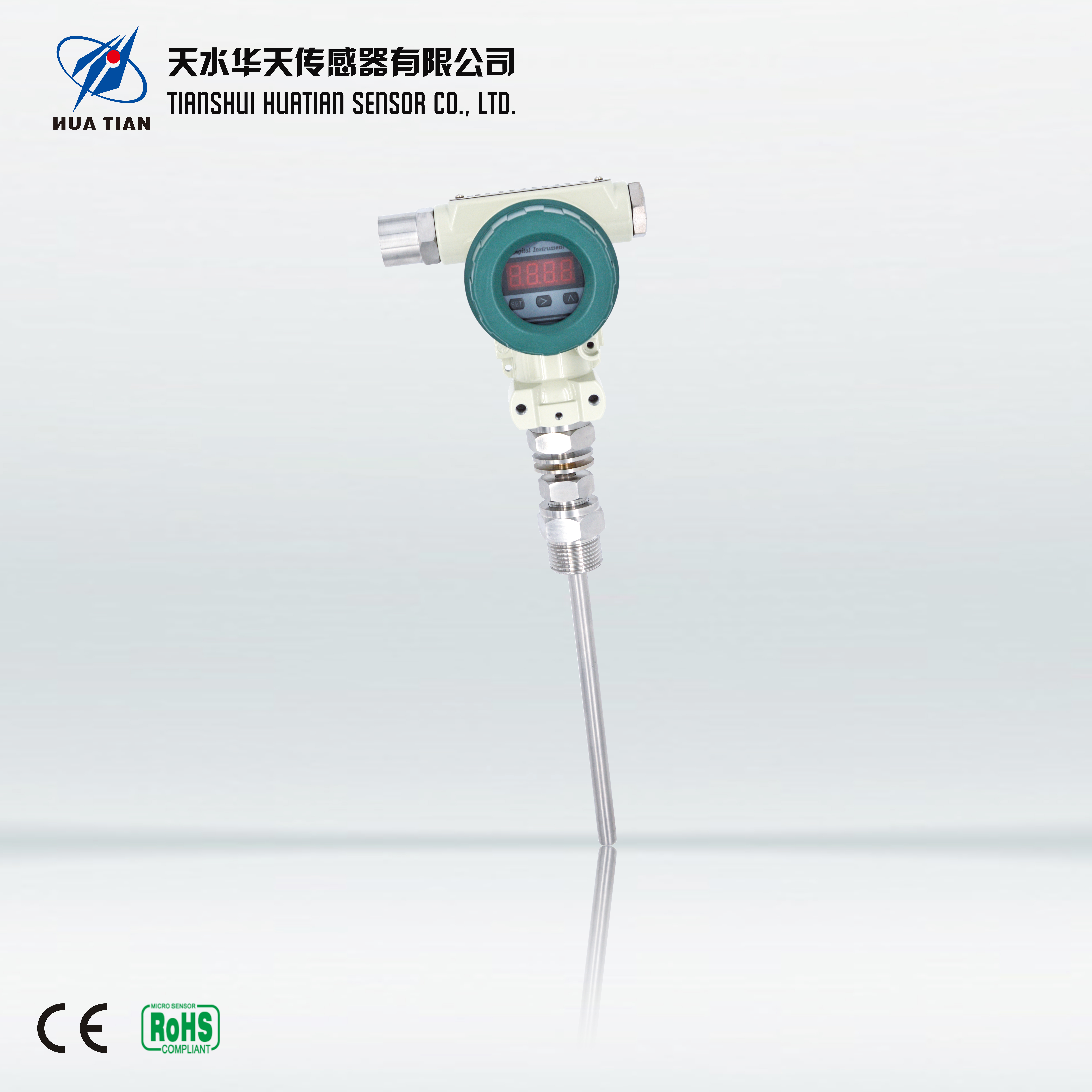

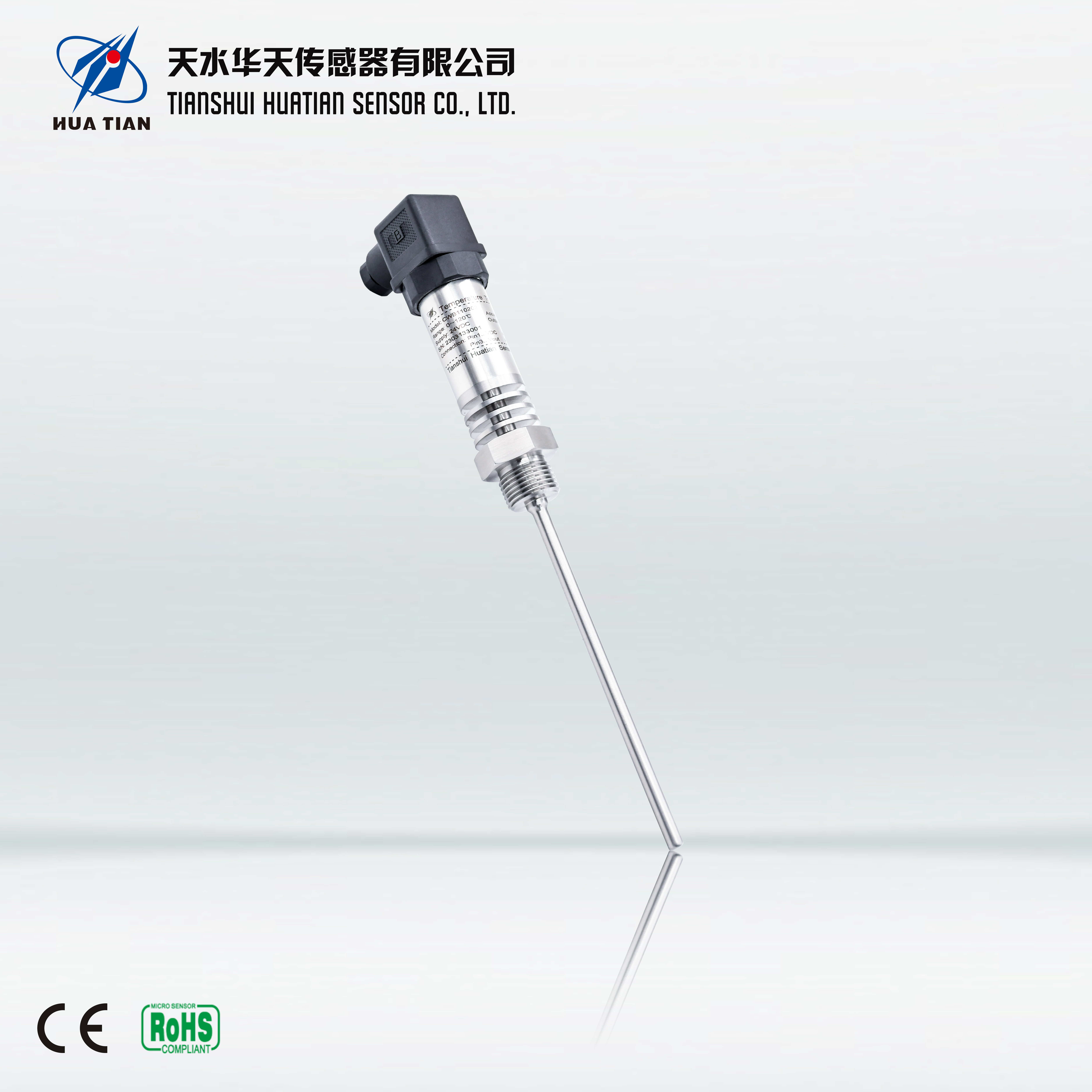

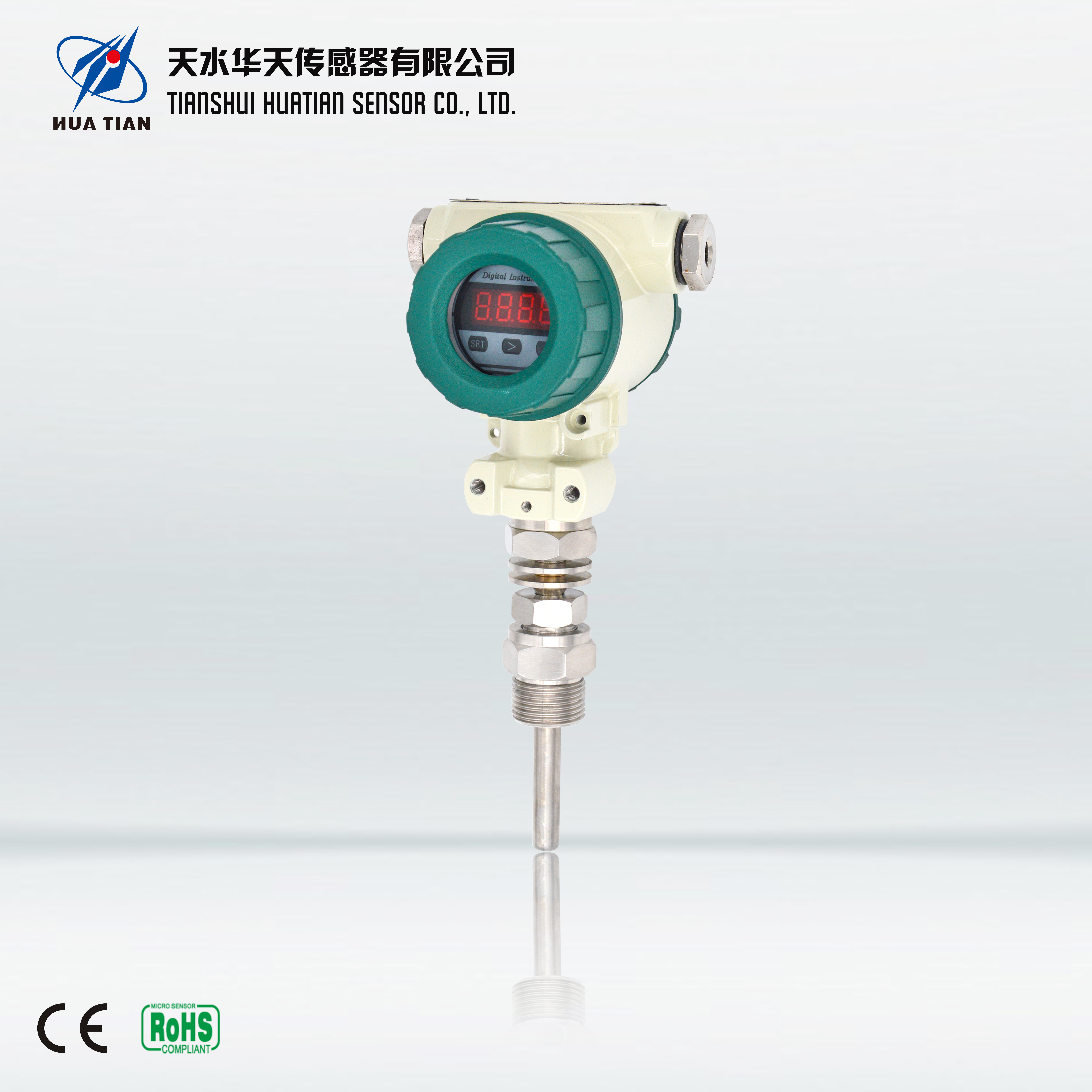

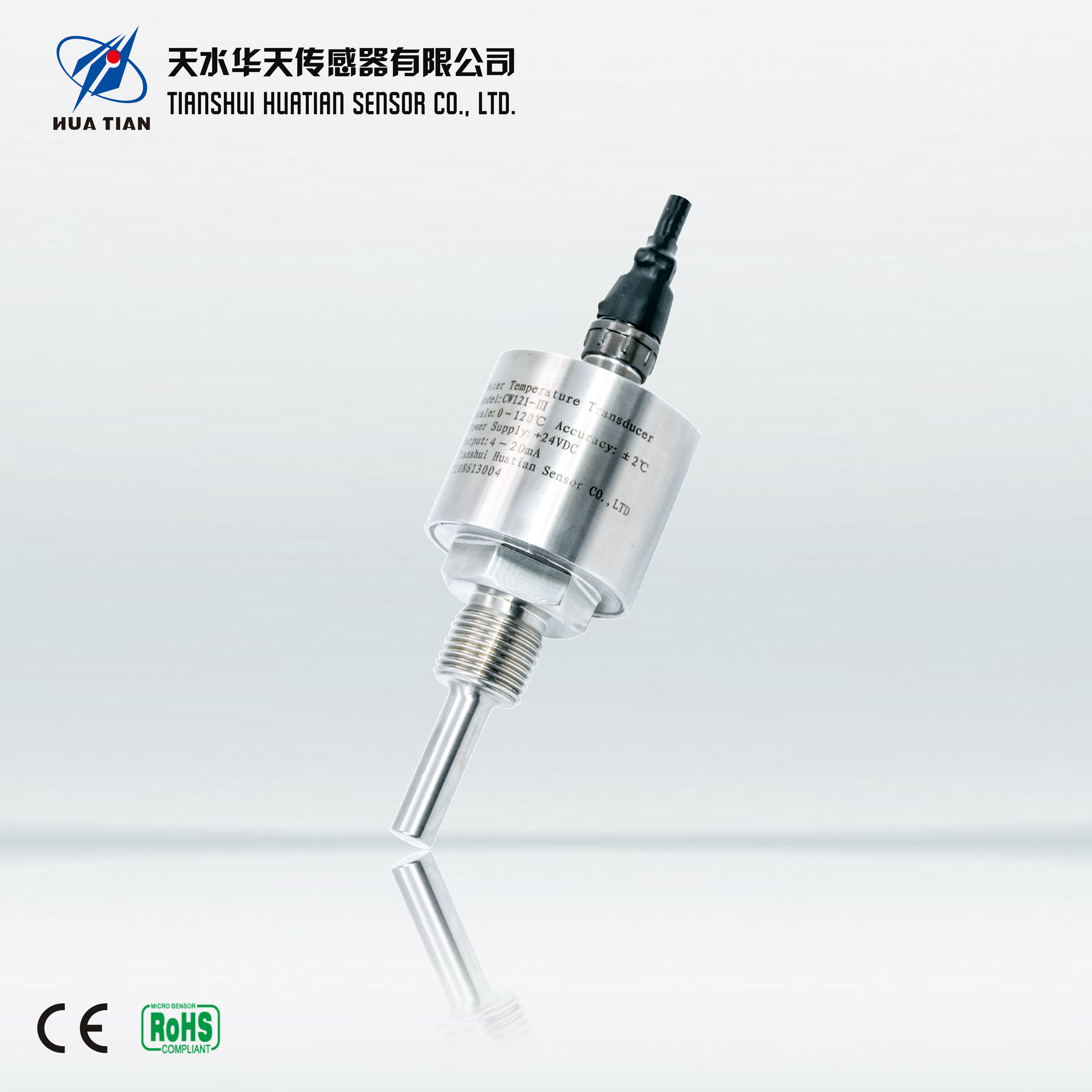

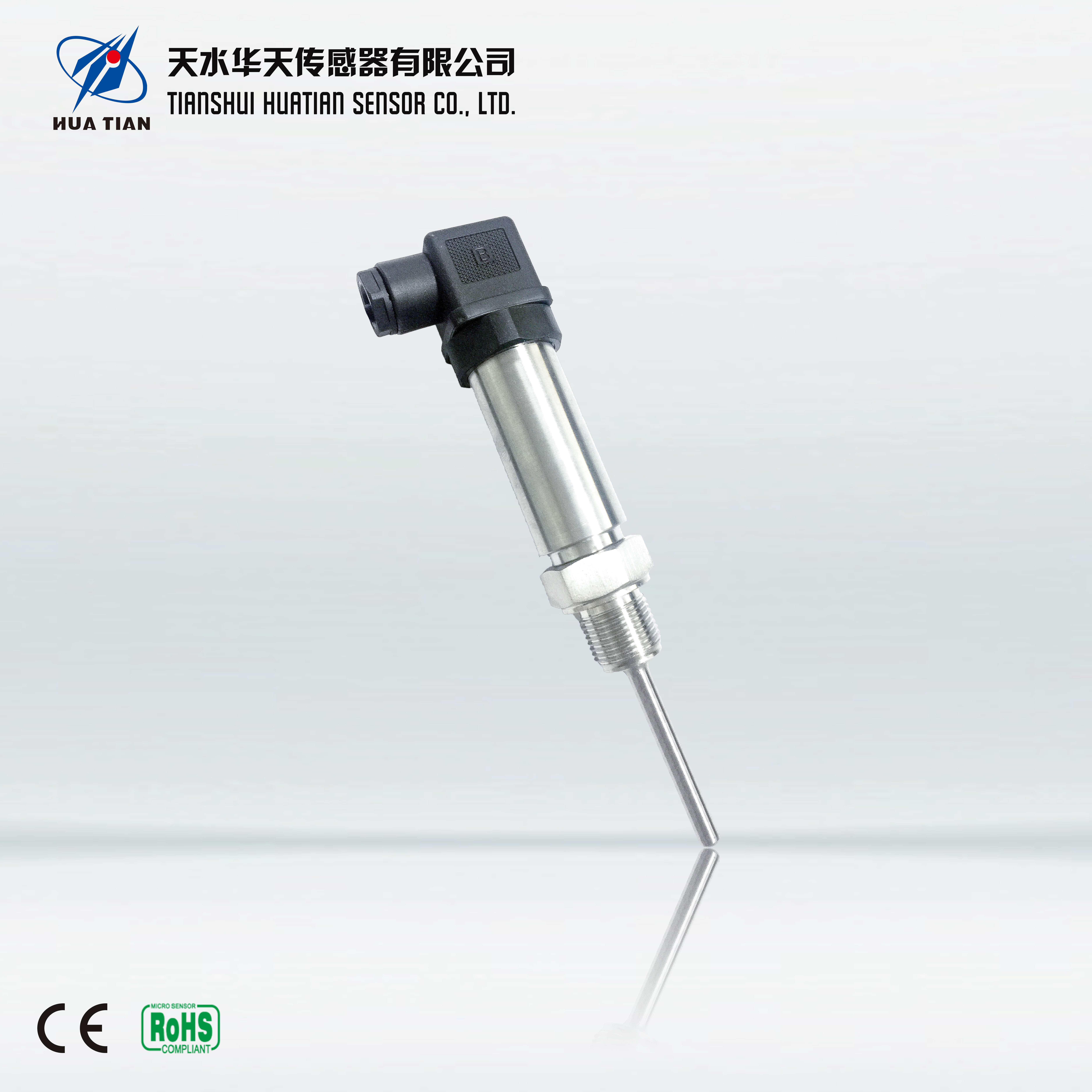

Model | CWB series temperature transmitters |
Introduction | CWB series temperature transmitters use semiconductor temperature sensors, platinum resistances, etc. as temperature sensitive components, and output standard industrial signals after temperature compensation, digital circuit correction and signal conditioning. Each type of product has undergone careful design, component screening, process verification and curing, environmental simulation testing and other processes to ensure that each product is stable and reliable. |
Features | ● Range (℃): -60~450 (optional range) ● Electrical connection: Hirschmann socket, Direct cable outlet, Aviation socket, Industrial terminal ● Accuracy: ±0.25℃ (customized), ±0.5℃, ±1.0℃ ● Output signal: 4mA~20mA, 0V~10VDC, I2C,RS485 ● Response time: 20s (typical value, 10%~90%) ● Measuring medium: fluid compatible with 304 and 316L |
Applications | ● Railway locomotives ● Chemical industry ● Coal mines ● Oil field ● Civil explosions |

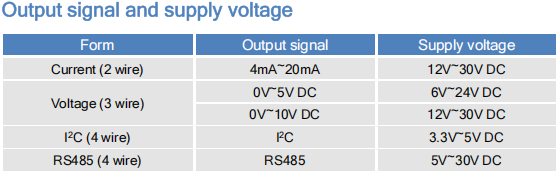

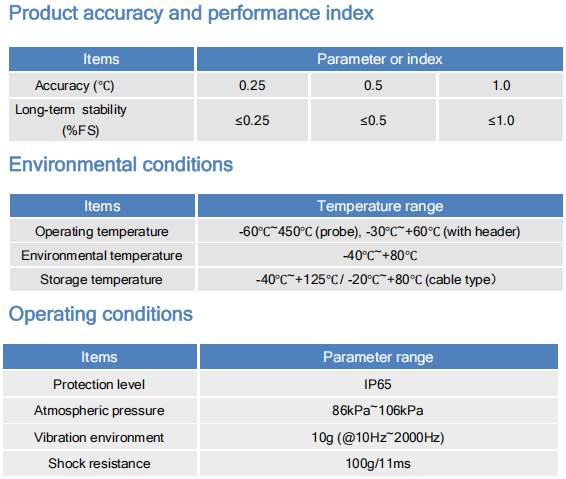

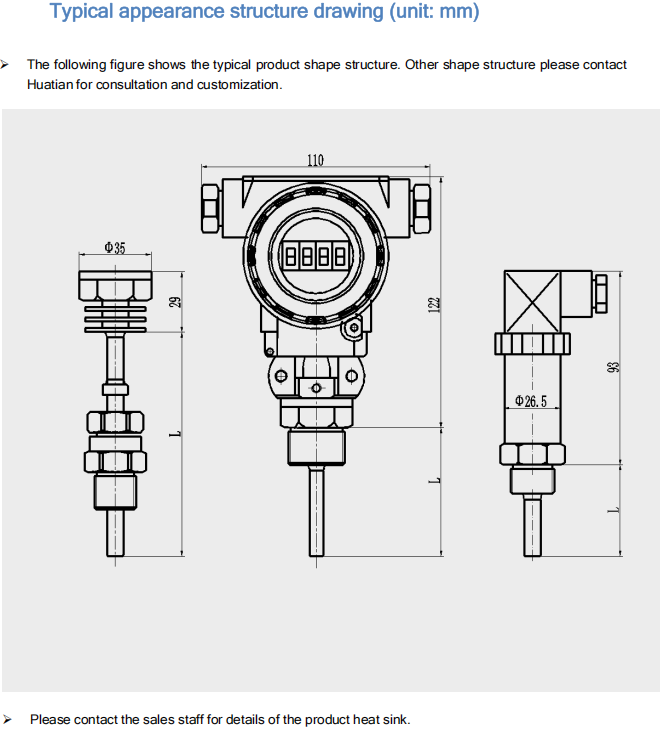

Technical specifications |    |
