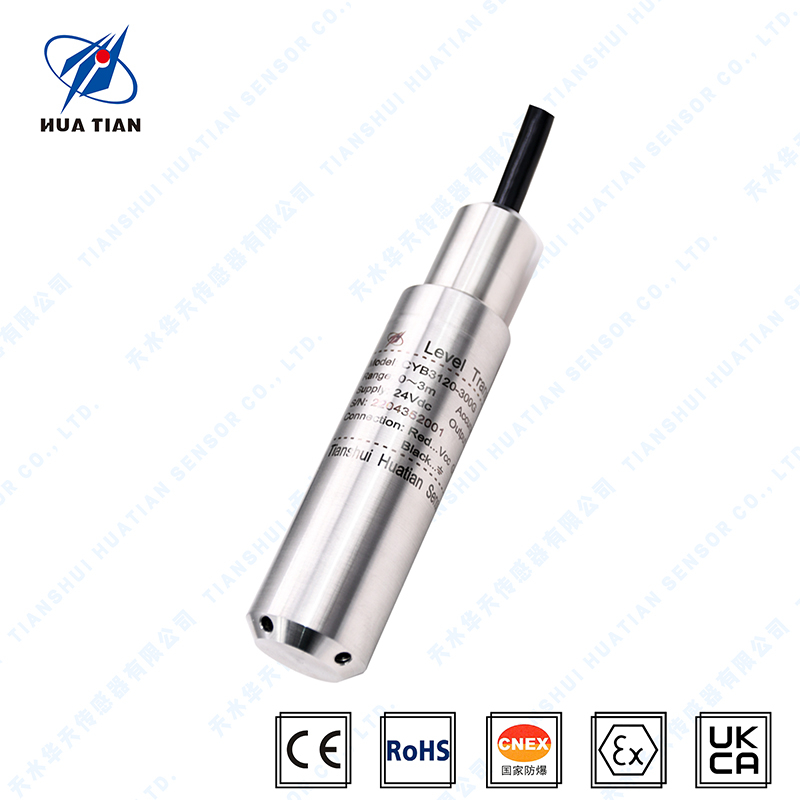

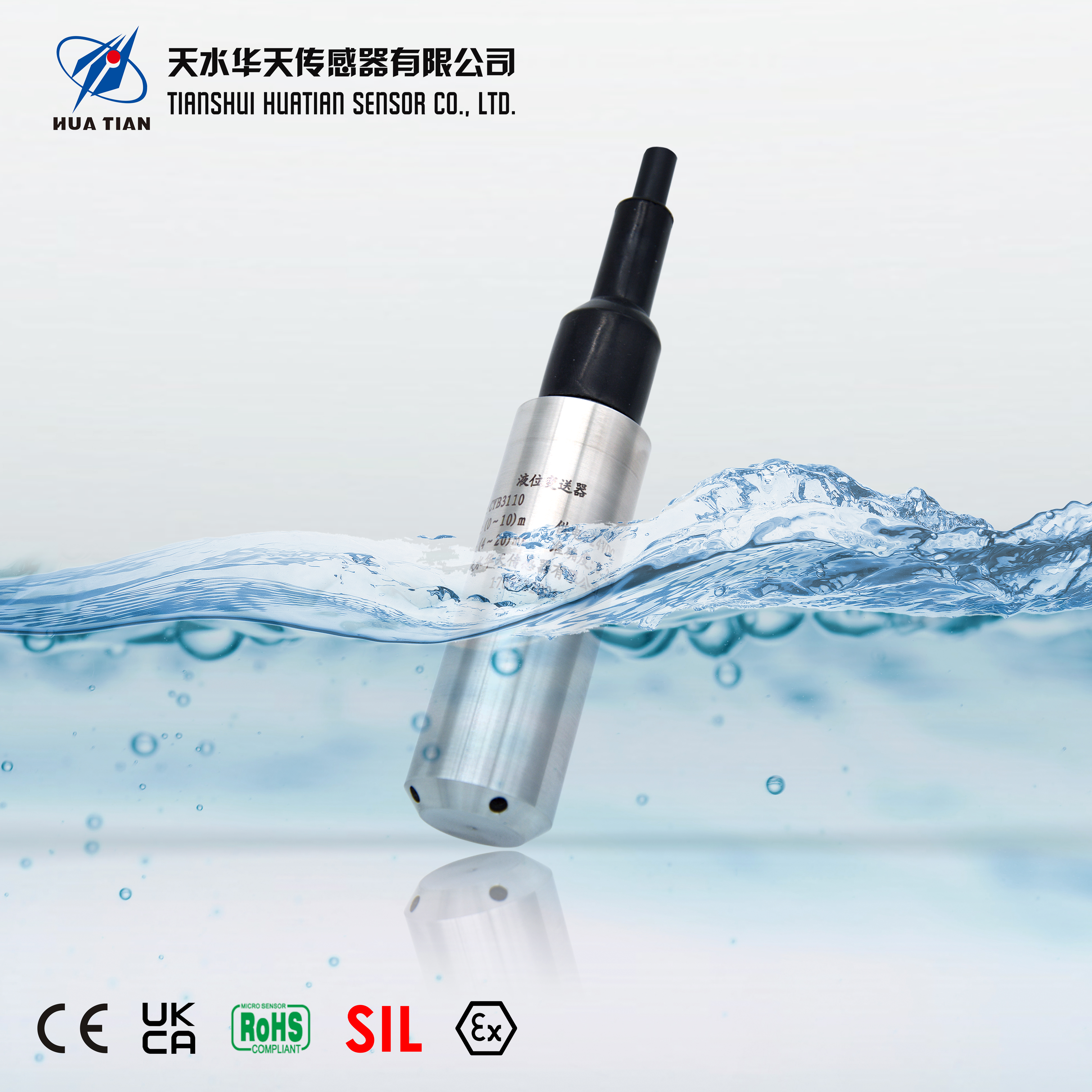

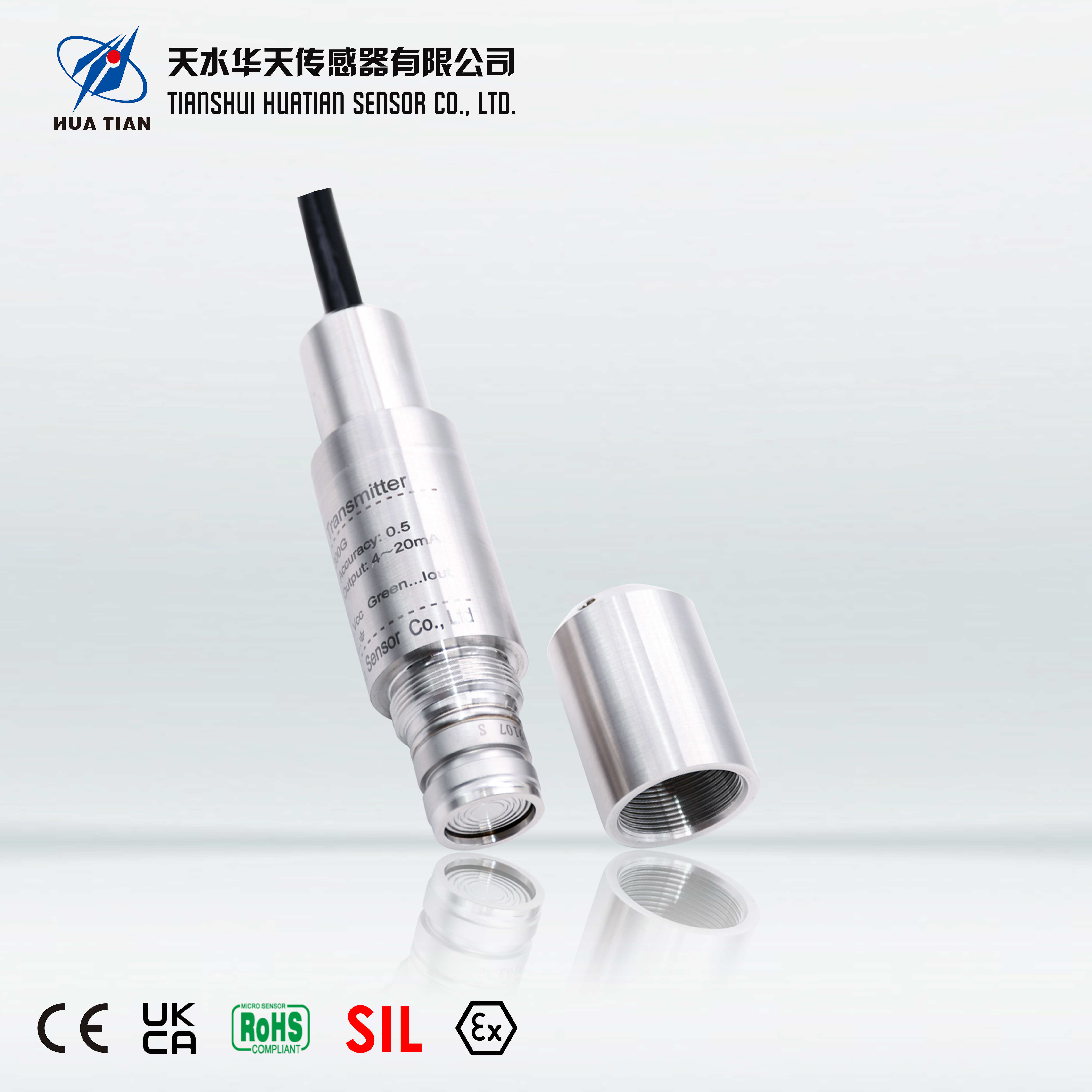

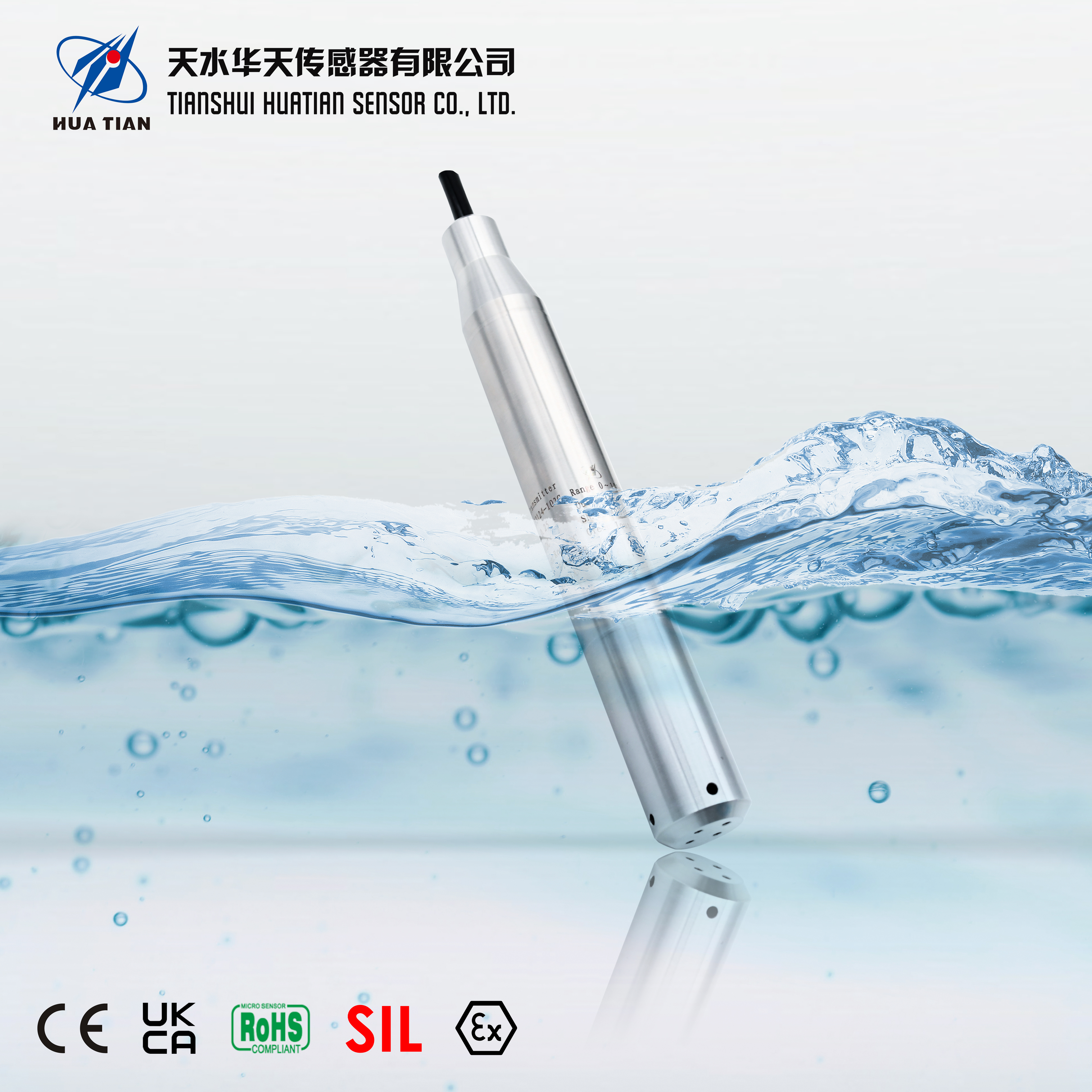

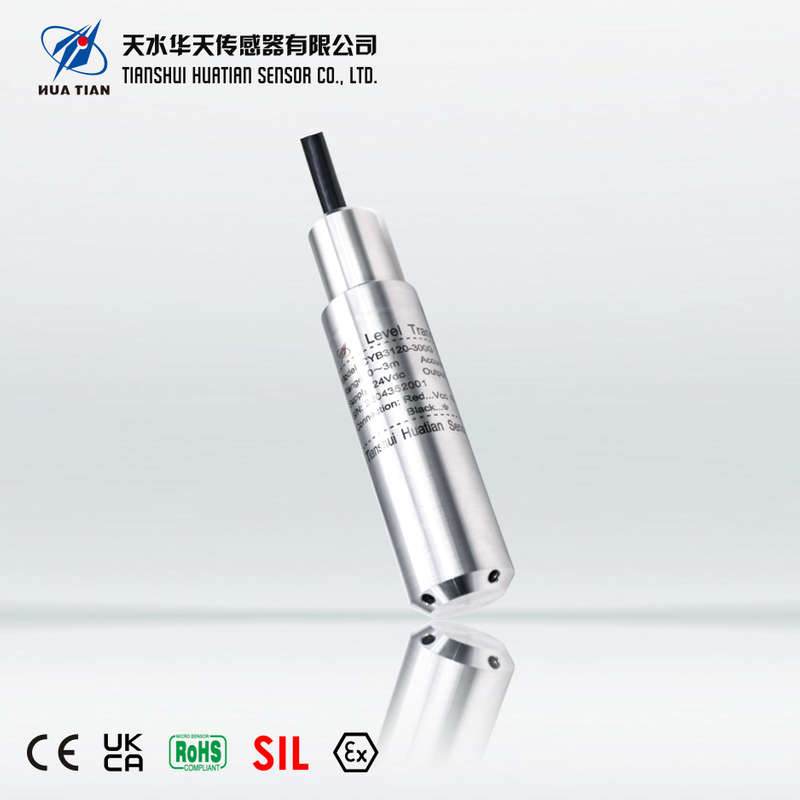

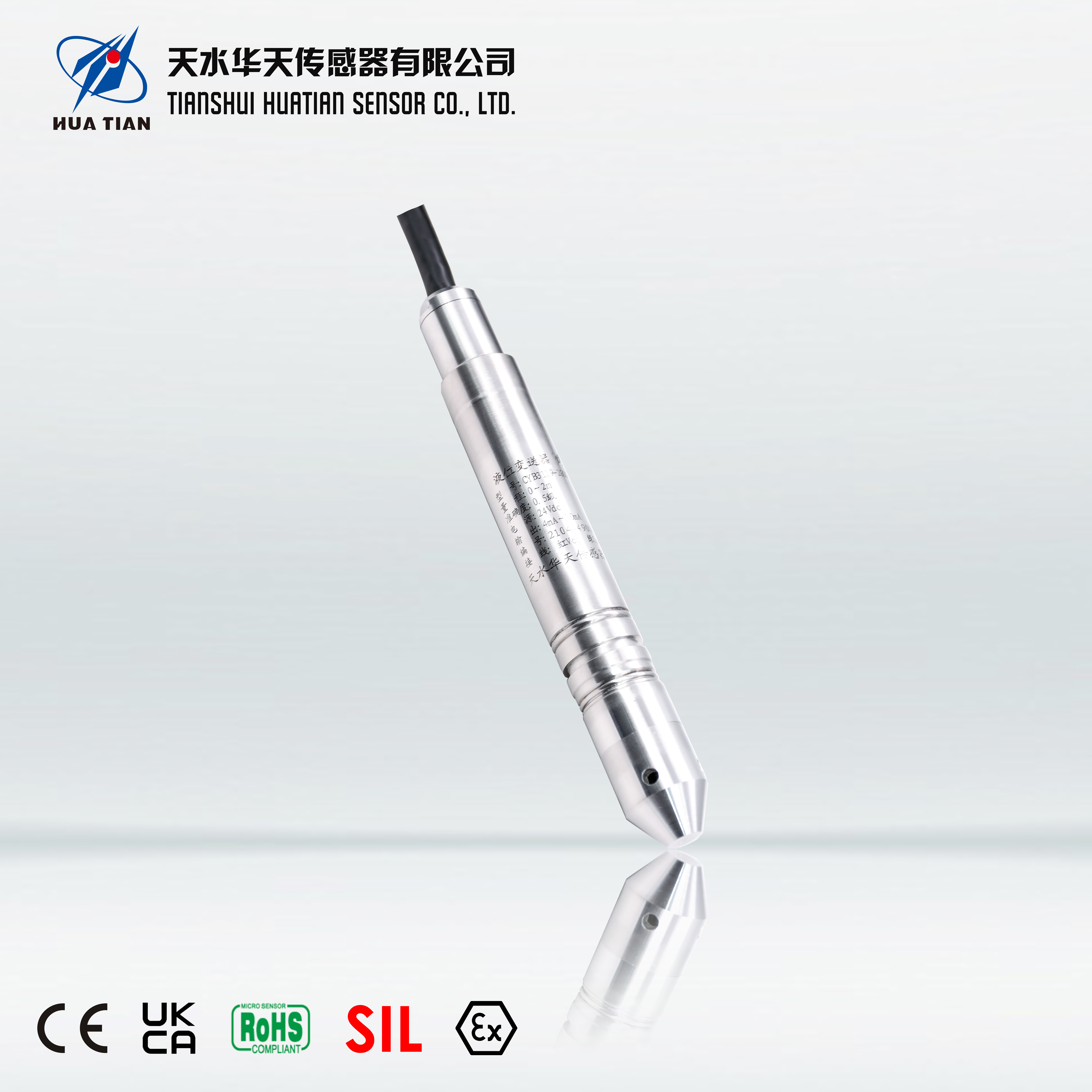

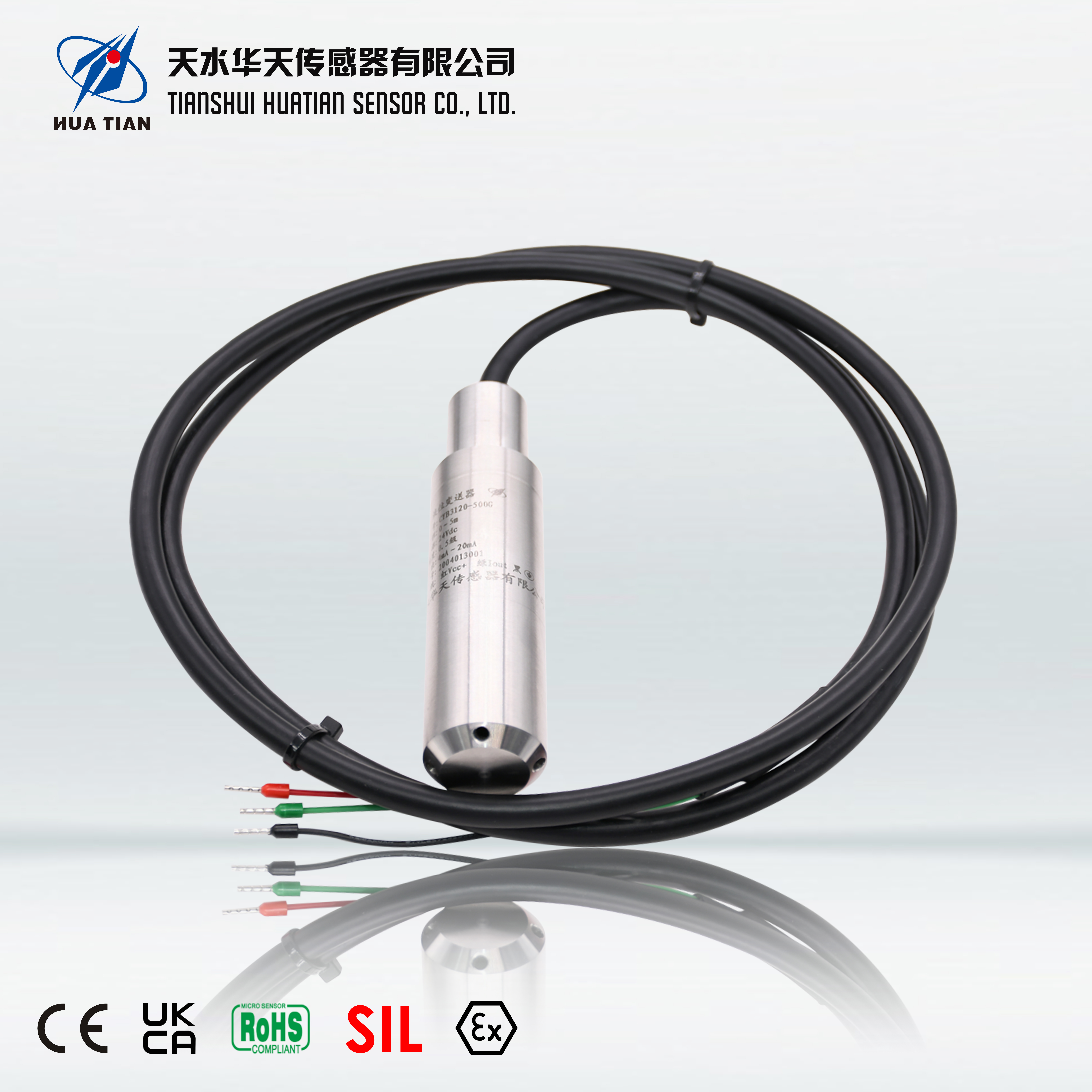

| Model | CYB3000 |
| Introduction | CYB3000 series level transmitter is our advantageous product with large sales volume, which is admired by many companies in the industry. This series of products according to different industry applications, carefully selected the company's highly reliable silicon piezoresistive pressure sensor as the pressure sensitive core, after fully automatic temperature compensation, programmable digital circuit correction and signal conditioning, the output of standard industrial applications and networking signals. The series has both universal design products suitable for multi-industry applications and specially designed products for different industry applications, which can be tailor-made according to the different needs of users to design suitable products. |
| Features | Form of pressure: gauge pressure, absolute pressure |
| Range: 0m～0.5m … 300m | |
| Overload capacity: ≤5 times | |
| Electrical connection: Industrial terminal, direct cable outlet | |
| Accuracy: ±0.1%FS(customized), ±0.25%FS, ±0.5%FS | |
| Output signal: 4mA～20mA（with HART protocol), RS485, 0V～10VDC (Output range can be customized), I2C | |
| Response time: ≤3ms (10% to 90%) | |
| Measuring media: fluids compatible with 304, 316L or ceramics | |
| Applicable | Coal Mines |
| Oilfield | |
| Chemical | |
| Civil Explosives | |
| Medicine | |
| Water affairs | |
| Shipping | |
| Dyeing and printing | |

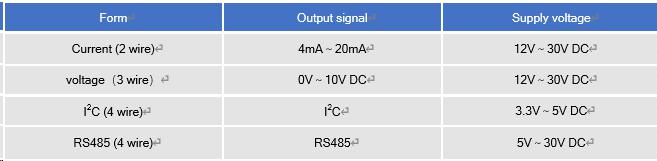

| Technical specifications |  Output signal and supply voltage |
 | |

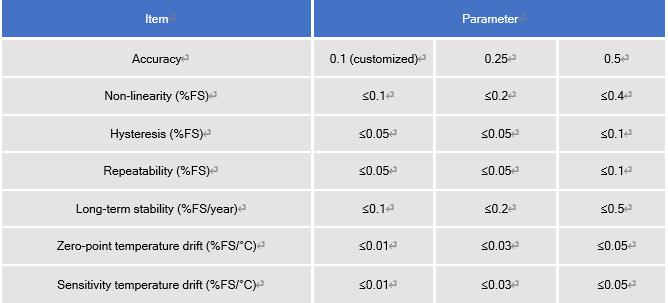

| Product accuracy and performance index | |
 | |

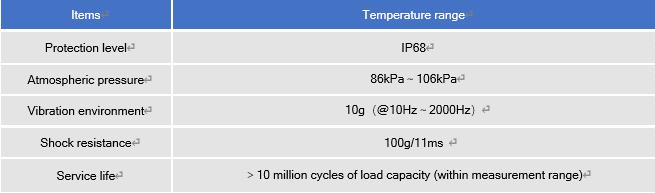

| Environmental conditions | |
 | |
| Operating conditions | |
 | |

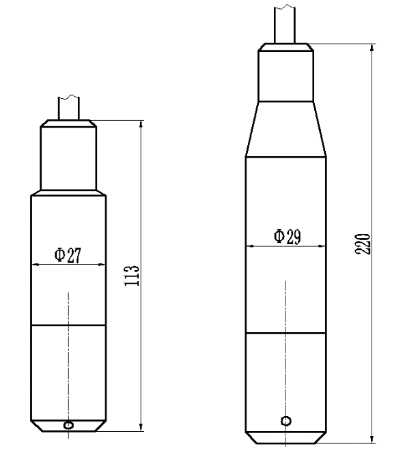

| Typical appearance structure drawing (unit: mm) | |
 |
