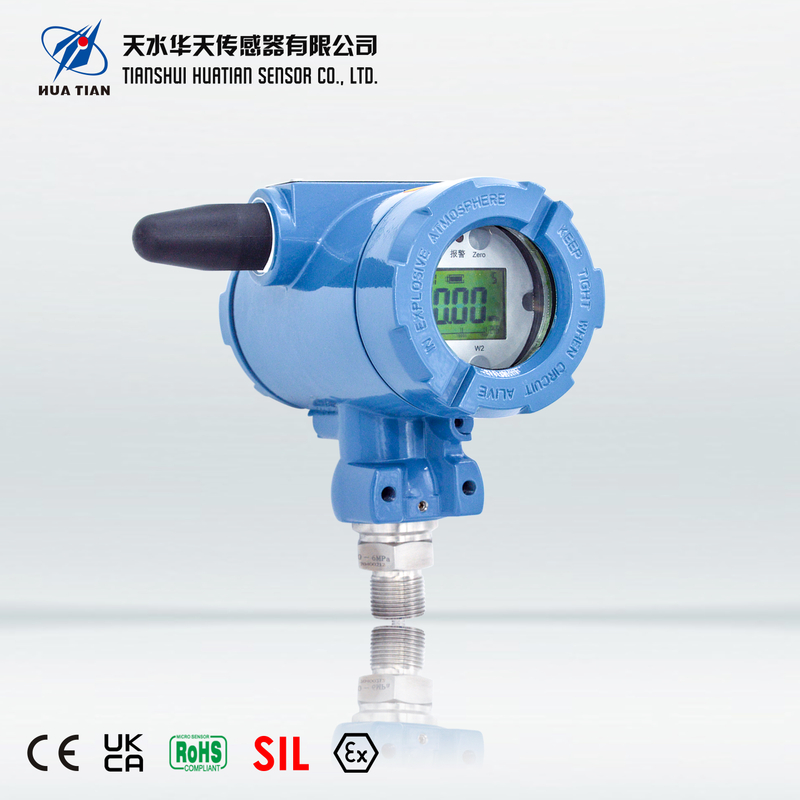

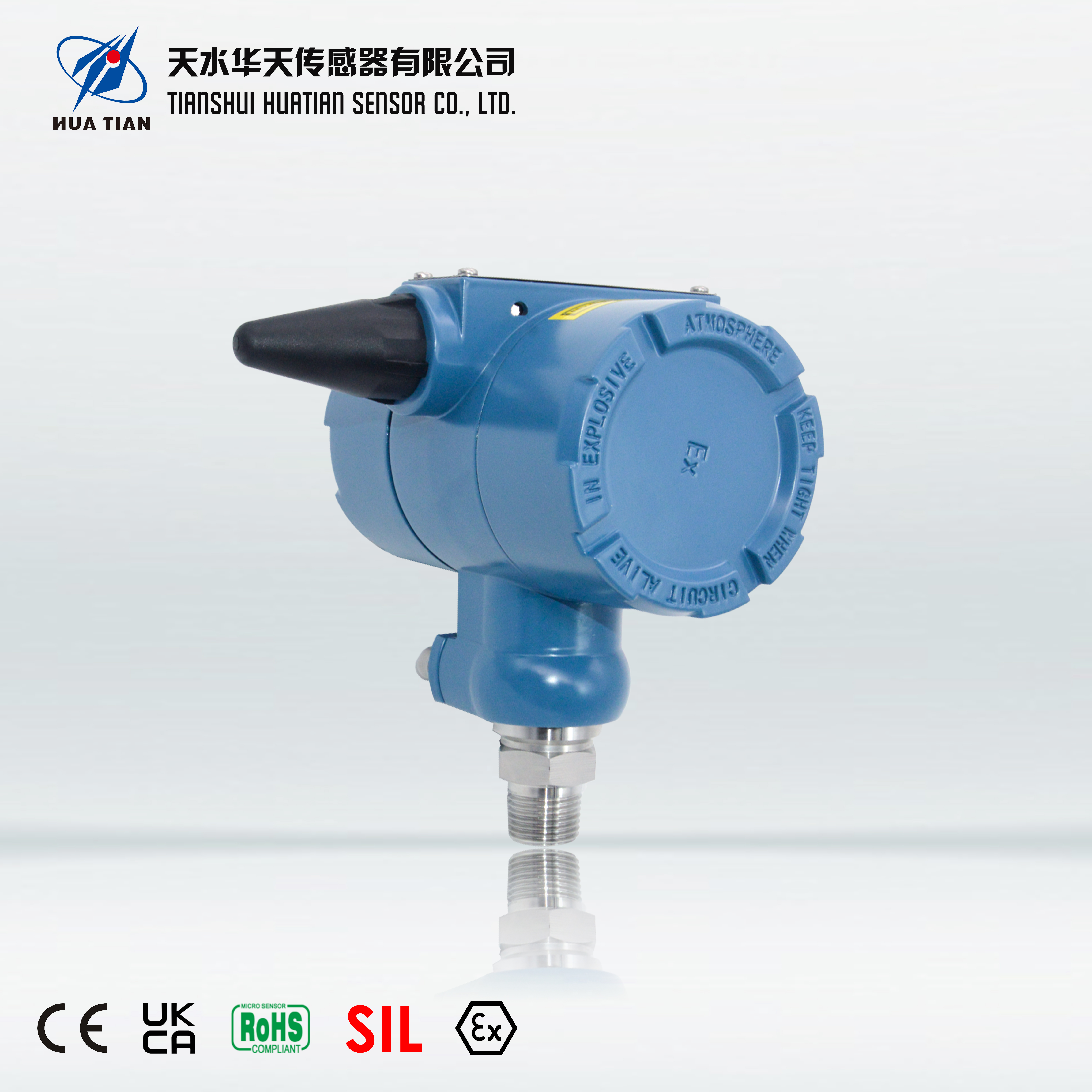

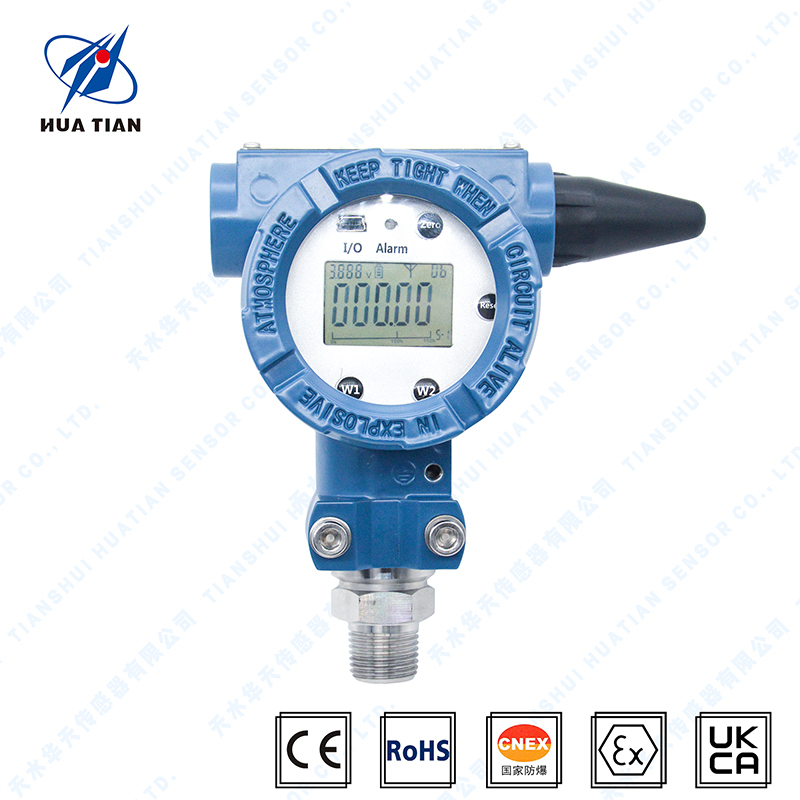

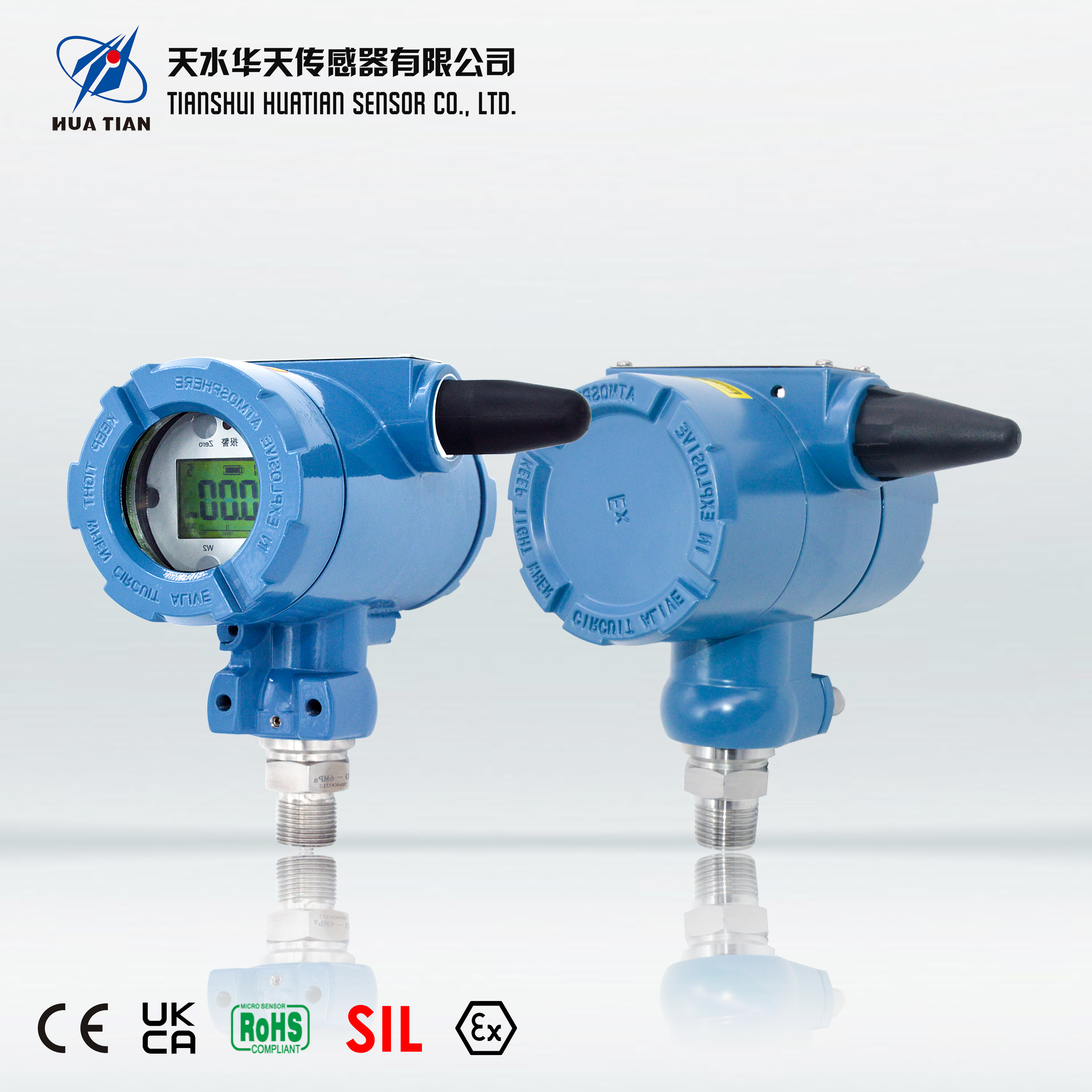

| Model | CYB4500/CWB5100 |
| Introduction | CYB4500/CWB5100 series products are a kind of wireless transmitter that can work in the field without single point wiring. Adopting micro-power wireless communication mode, the installation is faster, safer, and more convenient, and there is a supporting wireless adapter device, which can convert the wireless signal to MODBUS standard signal through Ethernet or serial transmission, and can be easily connected to the measurement and control system. Each type of this series of wireless transmitter is carefully designed, component selection, process verification curing, cyclic loading stress relief, old refining, environmental simulation testing and other processes to ensure that each product is stable and reliable. |
| Features | Pressure type: gauge pressure, absolute pressure, sealed gauge pressure |
| Range：-0.1MPa … 0kPa～10kPa … 100MPa, -60℃～450℃(Range is optional) | |
| Accuracy：±0.1%FS (Customized) / ±0.25%FS / ±0.5%FS | |
| Overload capacity：≤2 times (＜10MPa)；≤1.5times (≥10MPa) | |
| Display：4-digit LCD/4-digit LED | |
| Output signal：LoRa / NB-IoT / 4G | |
| Operating voltage：3.6V DC Lithium Battery | |
| Battery life：≤3 years (Related to data upload interval) | |
| Reporting Cycle：1 minute ~ 1 hour can be set | |
| Transmission distance：≤1000m (Open environmental conditions) | |
| Measurement medium：Fluids compatible with 304, 316L or ceramic | |
| Applicable | Coal Mining |
| Oil field | |
| Chemical | |
| Civil Explosion | |
| Water Affairs | |
| Shipping | |
| Medicine | |
| Environmental Protection | |

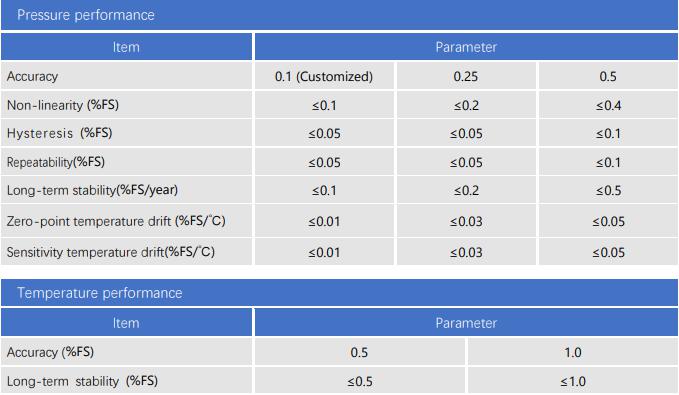

 Technical specifications | Product accuracy and performance |
 | |

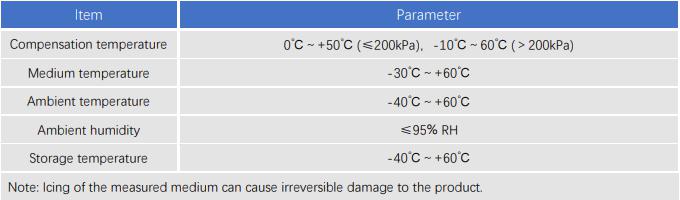

| Environmental conditions | |
 | |

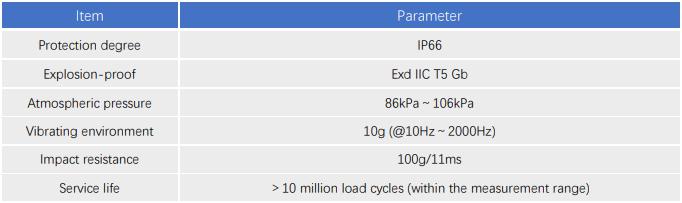

| Working conditions | |
 | |
| Dimension and structure diagram (Unit：mm) | |
 |
