Model | CYX12 |

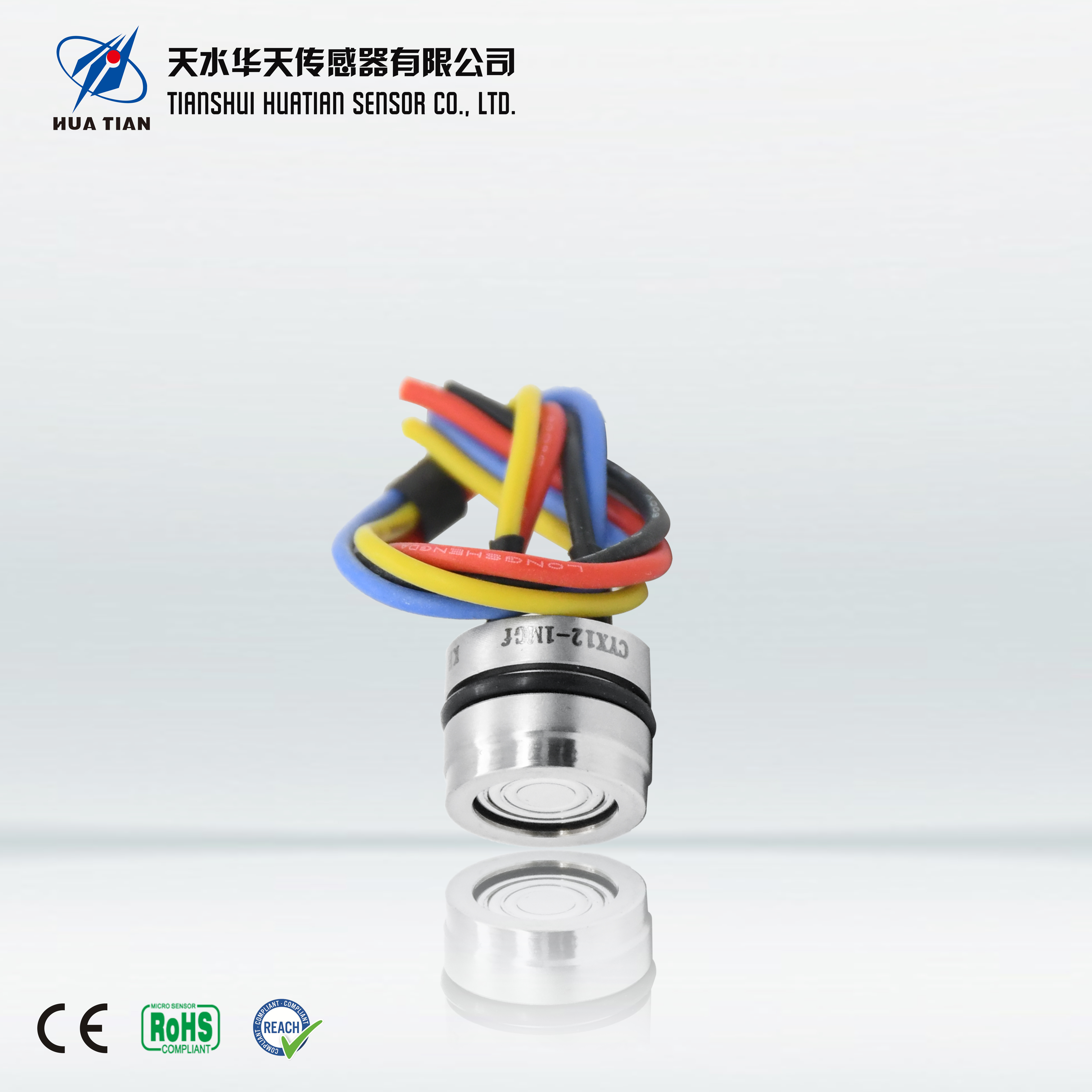

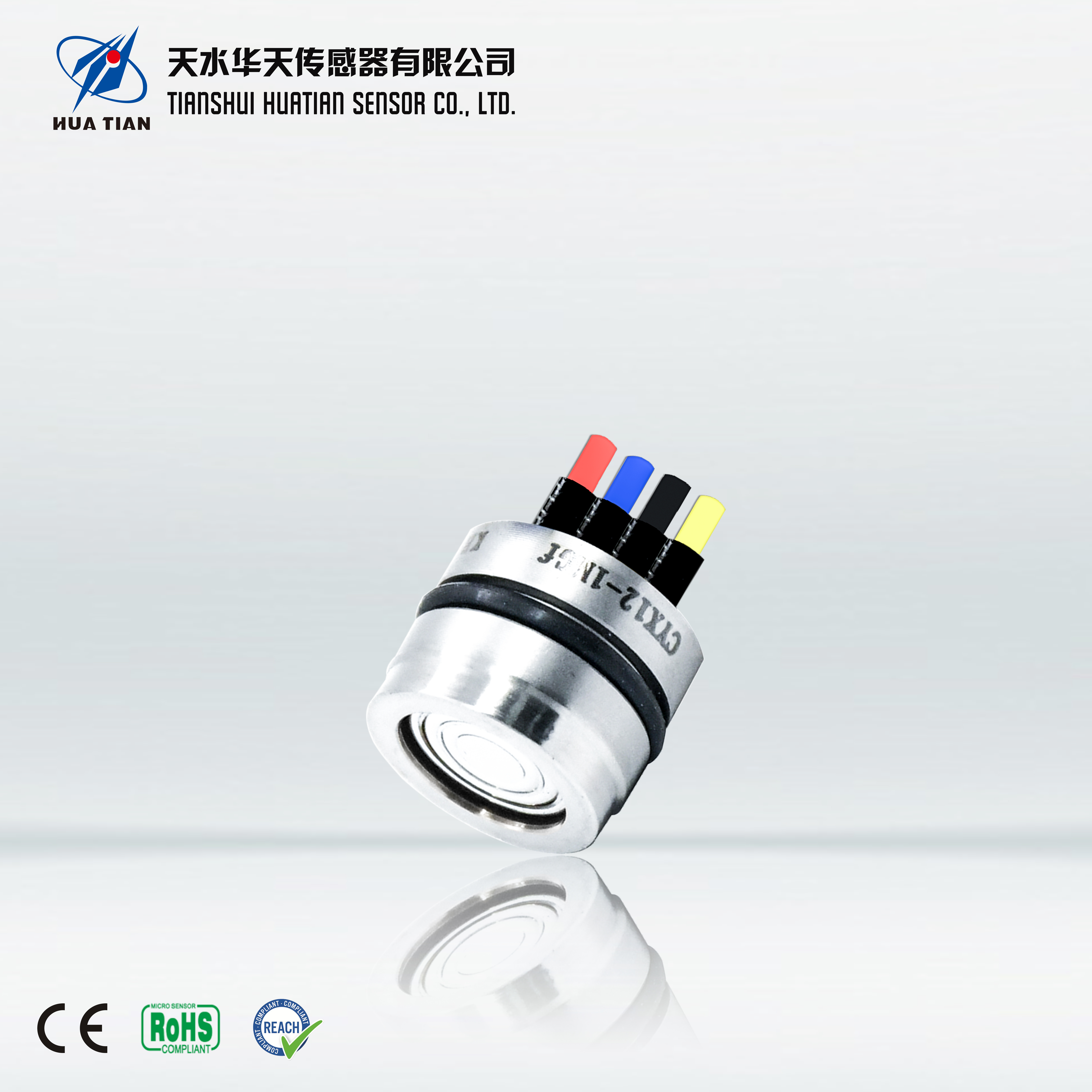

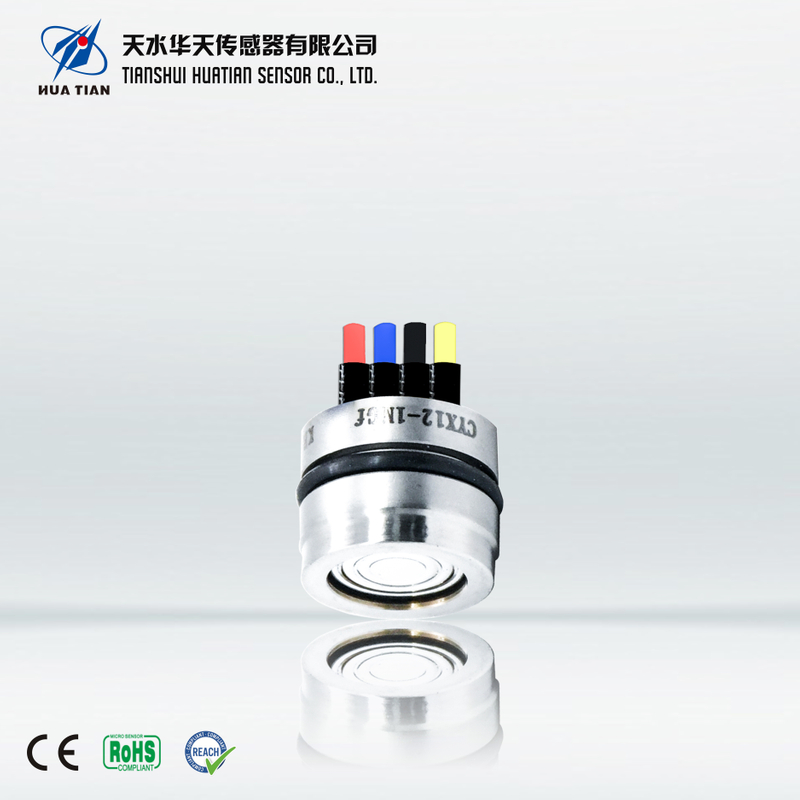

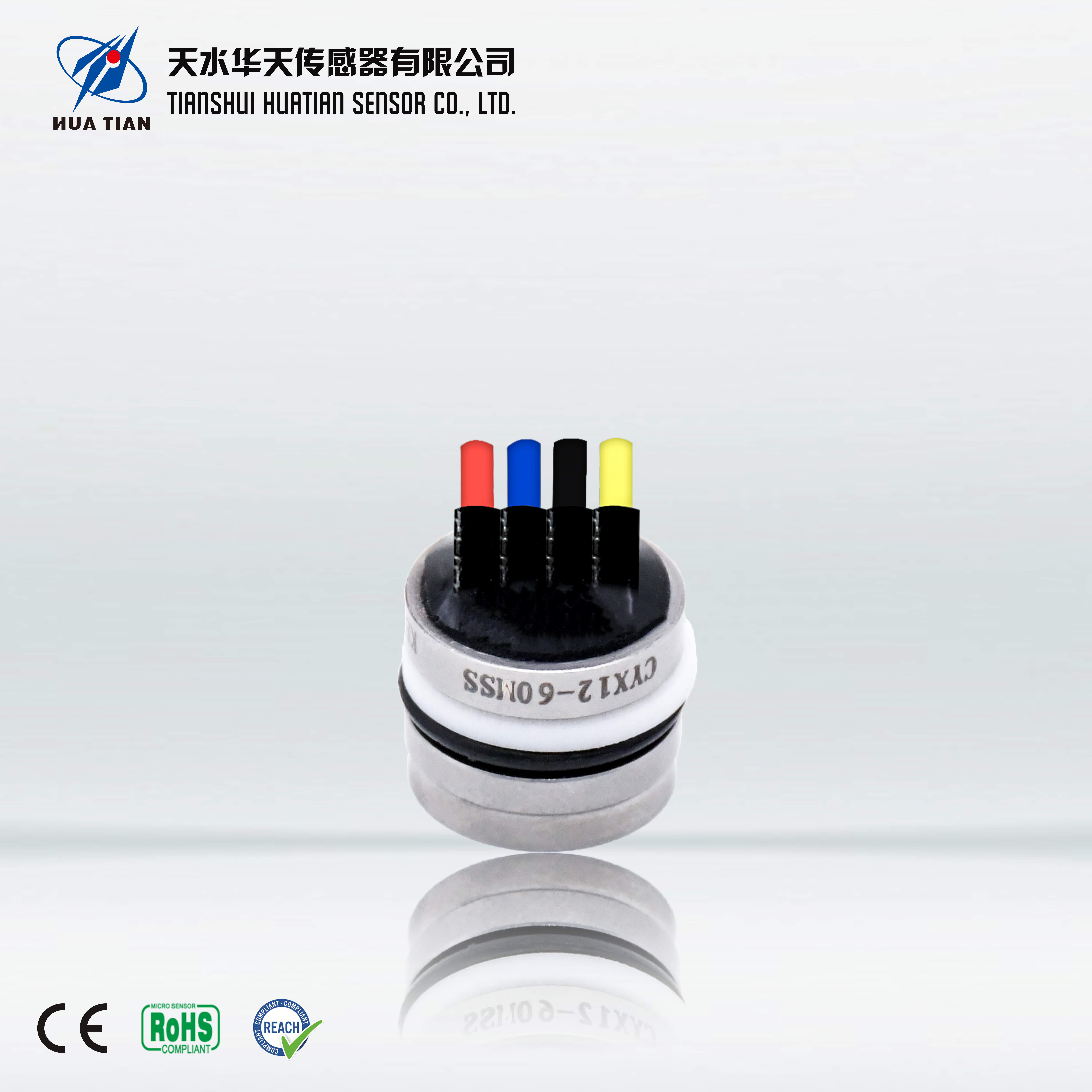

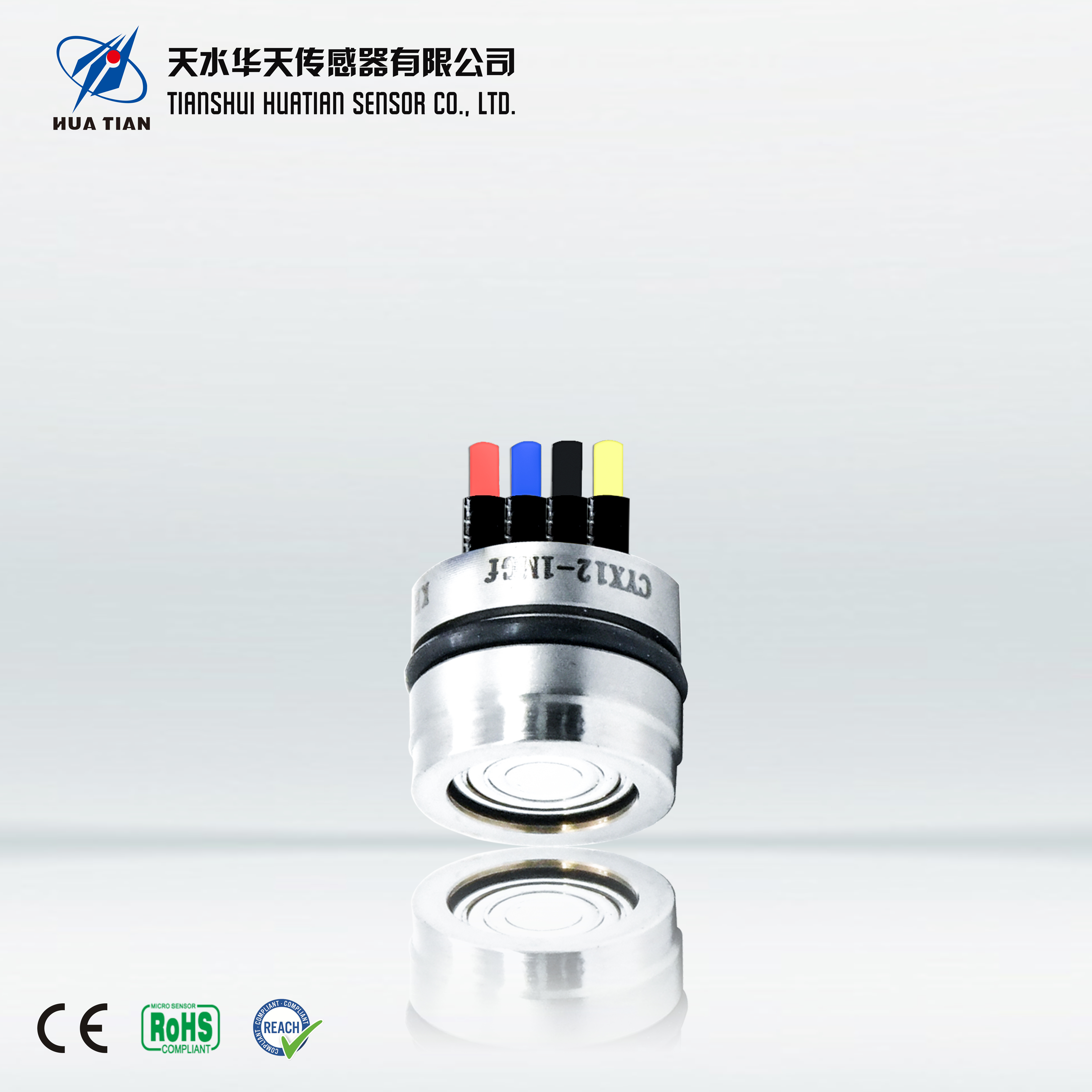

Introduction | CYX12 series of oil-filled pressure sensor adopts piezoresistive chip and international advancedhigh stability, high precision silicon pressure chip, using stress-optimized design of the sinteredseat, through the patch, gold wire bonding, diaphragm welding, high-vacuum oil-filled, pressurecycling de-stressing, high-temperature refining, temperature compensation and other process production. The products have excellent stability and performance. The miniaturized external dimensions are designed to meet the small size requirements of users.This product is used for pressure testing of media compatible with 316L stainless steel, nitrilerubber, or fluororubber. |
Features | ⚫ range: -100kPa～0kPa～200kPa…100MPa ⚫ pressure forms: gauge pressure (G), absolute pressure (A) and seal gauge pressure (S) ⚫ constant current power supply ⚫ isolated structure, suitable for multiple fluid media ⚫ Φ12.6mm pressure oil-filled sensor ⚫ all 316L stainless steel ⚫ tantalum diaphragm can be customized |

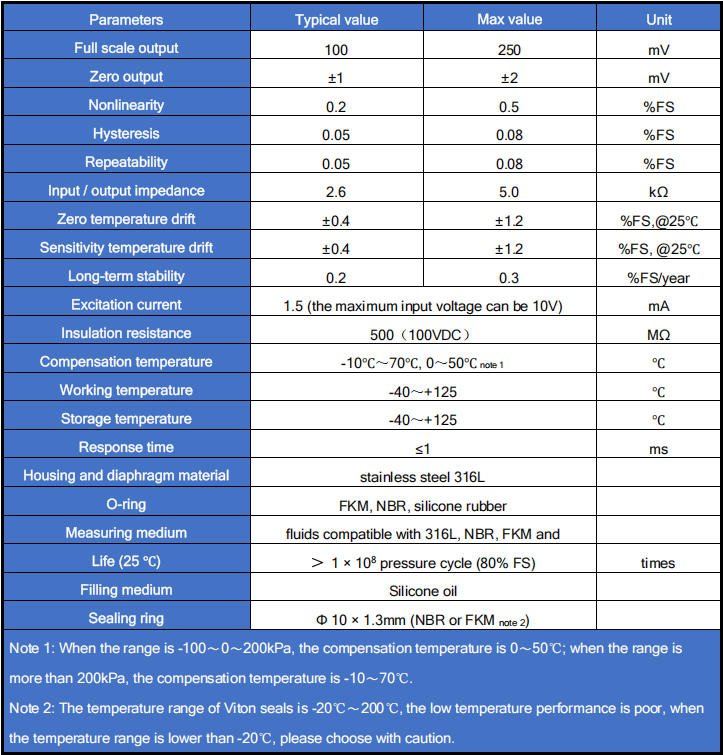

Technical specifications | Electrical performance ⚫ power supply: ≤ 3.0mA ⚫ electrical connection: 0.2mm² four color 100mm silicon rubber flexible wire ⚫ common-mode voltage output: 50% of current type input (typical value) ⚫ input impedance: 2.7kΩ ～ 5kΩ ⚫ output impedance: 3.0kΩ ～ 6kΩ ⚫ response time (10% - 90%): < 1ms ⚫ insulation resistance: 500MΩ / 100V DC ⚫ allowable overvoltage: 1.5 times of full scale Structure performance ⚫ 316L diaphragm material: stainless steel 316L ⚫ 316L shell material: stainless steel 316L ⚫ pin lead: gold-plated Kovar ⚫ sealing ring: NBR, FKM (optional) ⚫ net weight: about 10g Environment conditions ⚫ vibration: no change at 10g RMS, (20-2000) Hz ⚫ constant acceleration: 100g, 11ms ⚫ media compatibility: liquid or gas compatible with ss316L and NBR (FKM optional) Reference conditions ⚫ medium temperature: (25 ± 3) ℃ ⚫ ambient temperature: (25 ± 3) ℃ ⚫ humidity: (50% ± 10%) RH ⚫ ambient pressure: (86-106) kPa ⚫ power supply: (1.5 ± 0.0015) mA DC |
