Modell | CYX20 |

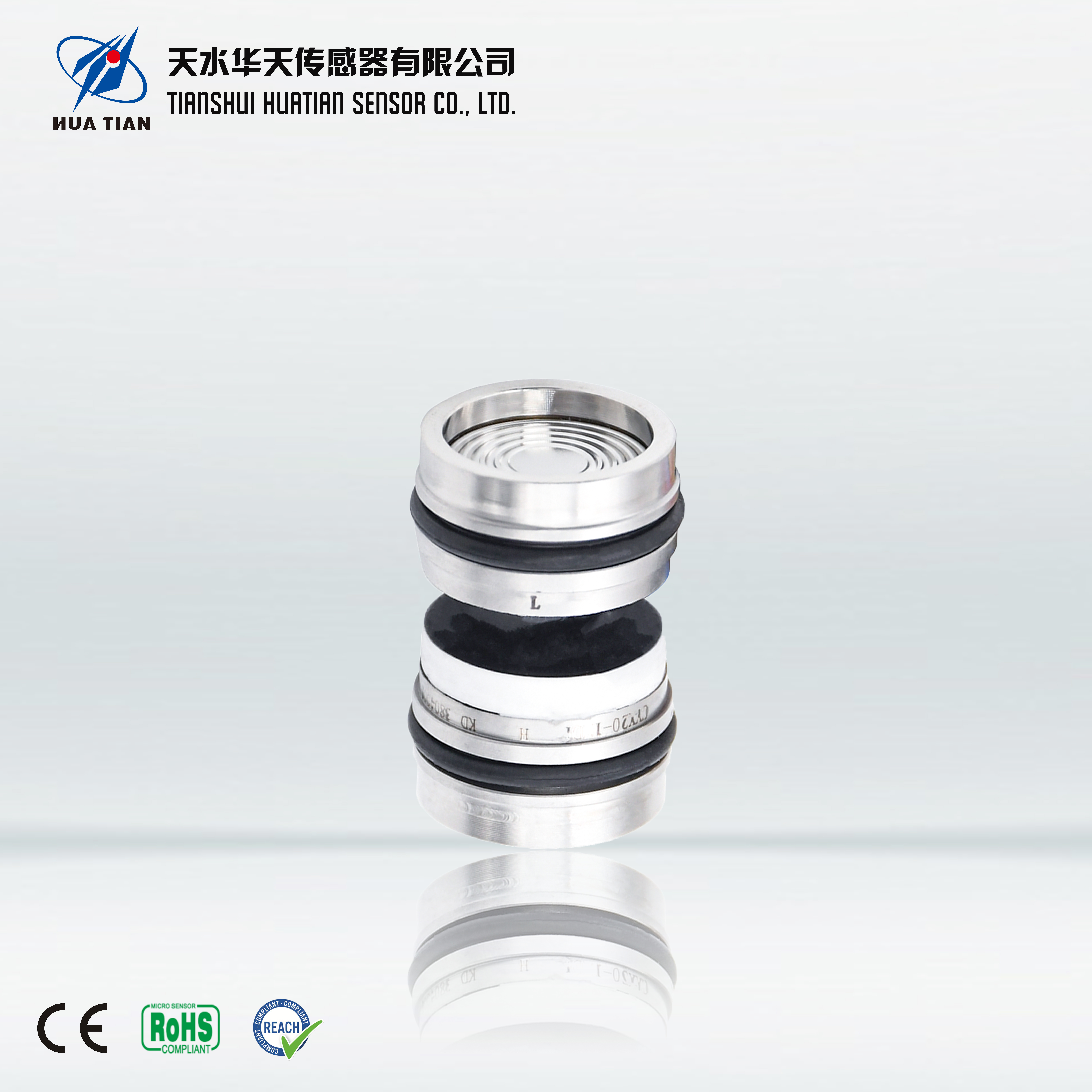

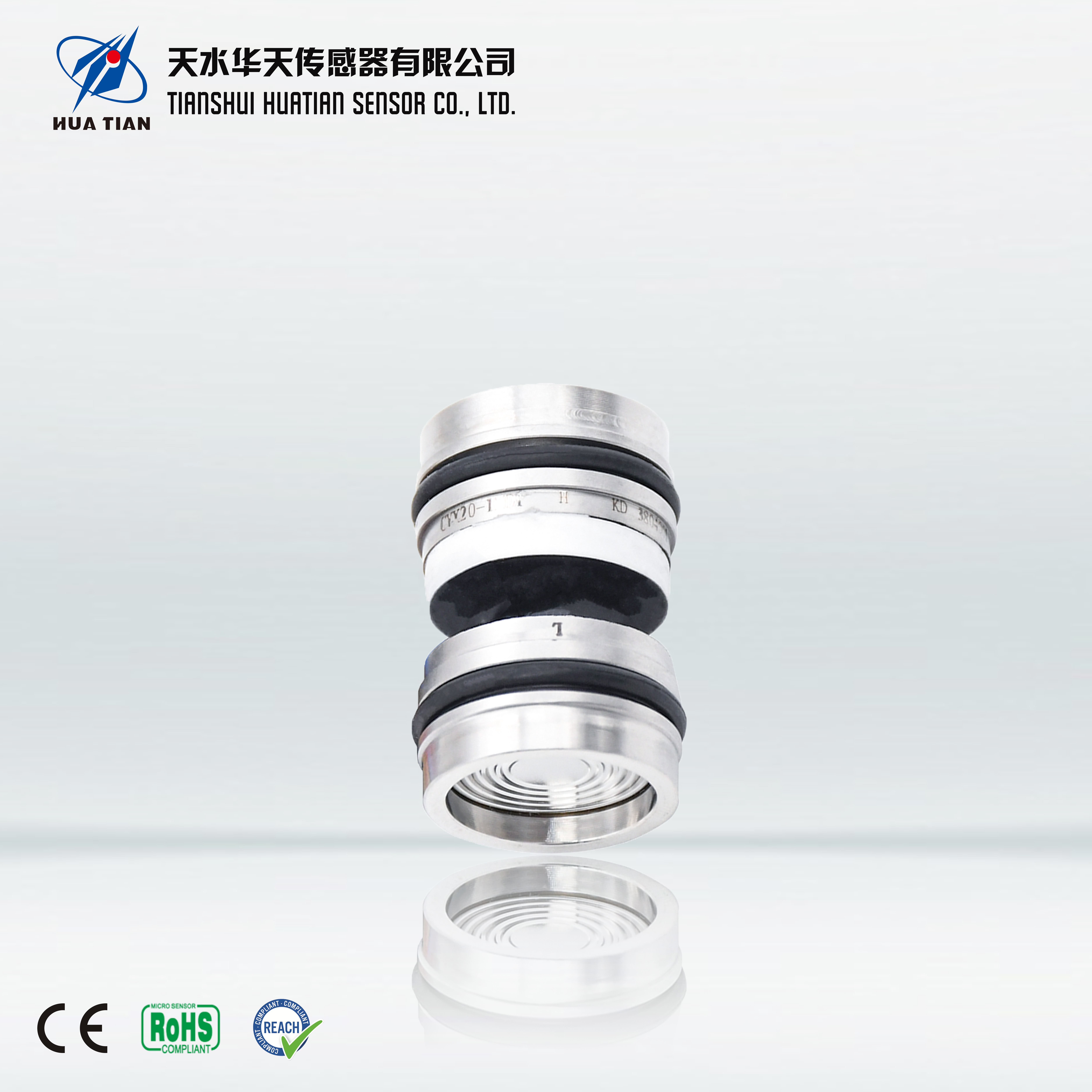

Introduction | CYX20 series differential pressure sensor is a differential pressure sensitive device isolated by stainless steel double corrugated diaphragm. The accurate measurement is achieved by transmitting through the isolation diaphragm and filled silicone oil to the silicon pressure-sensitive element. The core adopts piezoresistive chip with international advanced silicon pressure chips with high stability and high precision, and adopts the sintering base with stress optimization design. The sensor is produced by the following processes: patching, gold wire bonding, diaphragm welding, high vacuum oil injection, pressure cycle stress relief, high temperature aging, temperature compensation, etc. The shape, size and sealing mode of the general products are consistent with the international mainstream products of the same kind, and have good interchangeability. They are widely used for differential pressure and liquid level measurement of compatible media with 316L stainless steel, NBR or FKM. |
Features | ● measurement range: 0 ~ 10kPa…3.5MPa ● constant current / voltage supply ● isolated structure, suitable for multiple fluid media ● all 316L stainless steel ● static pressure 10MPa ● 1.5 times overvoltage of full scale |

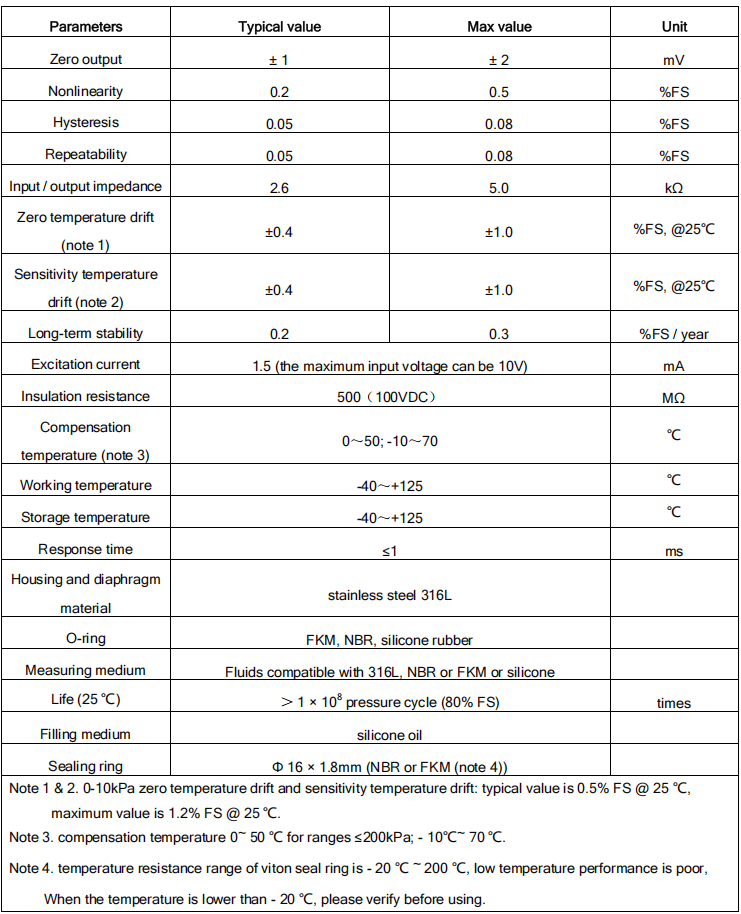

Technical specifications | Electrical performance ● power supply: ≤ 3.0mA; DC ≤ 10V DC ● electrical connection: 0.2mm² four color 100mm silicon rubber flexible wire ● common-mode voltage output: 50% of current type input (typical value), 40% of voltage type input (typical value) ● input impedance: 2.7kΩ ～ 5kΩ ● output impedance: 3.0kΩ ～ 6kΩ ● response time (10% - 90%): < 1ms ● insulation resistance: 500MΩ / 100V DC ● allowable overvoltage: 1.5 times of full scale Structure performance ● diaphragm material: stainless steel 316L ● shell material: stainless steel 316L ● pin lead: silicone rubber flexible wire ● sealing ring: NBR, FKM (optional) ● net weight: about 38g Environment condition ● vibration: no change at 10gRMS, (20-2000) Hz ● constant acceleration: 100g, 11ms ● media compatibility: liquid or gas compatible with 316L and NBR (FKM optional) Reference conditions ● medium temperature: (25 ± 3) ℃ ● ambient temperature: (25 ± 3) ℃ ● humidity: (50% ± 10%) RH ● ambient pressure: (86-106) kPa ● power supply: (1.5 ± 0.0015) mA DC |
