Modell | CYX24 |

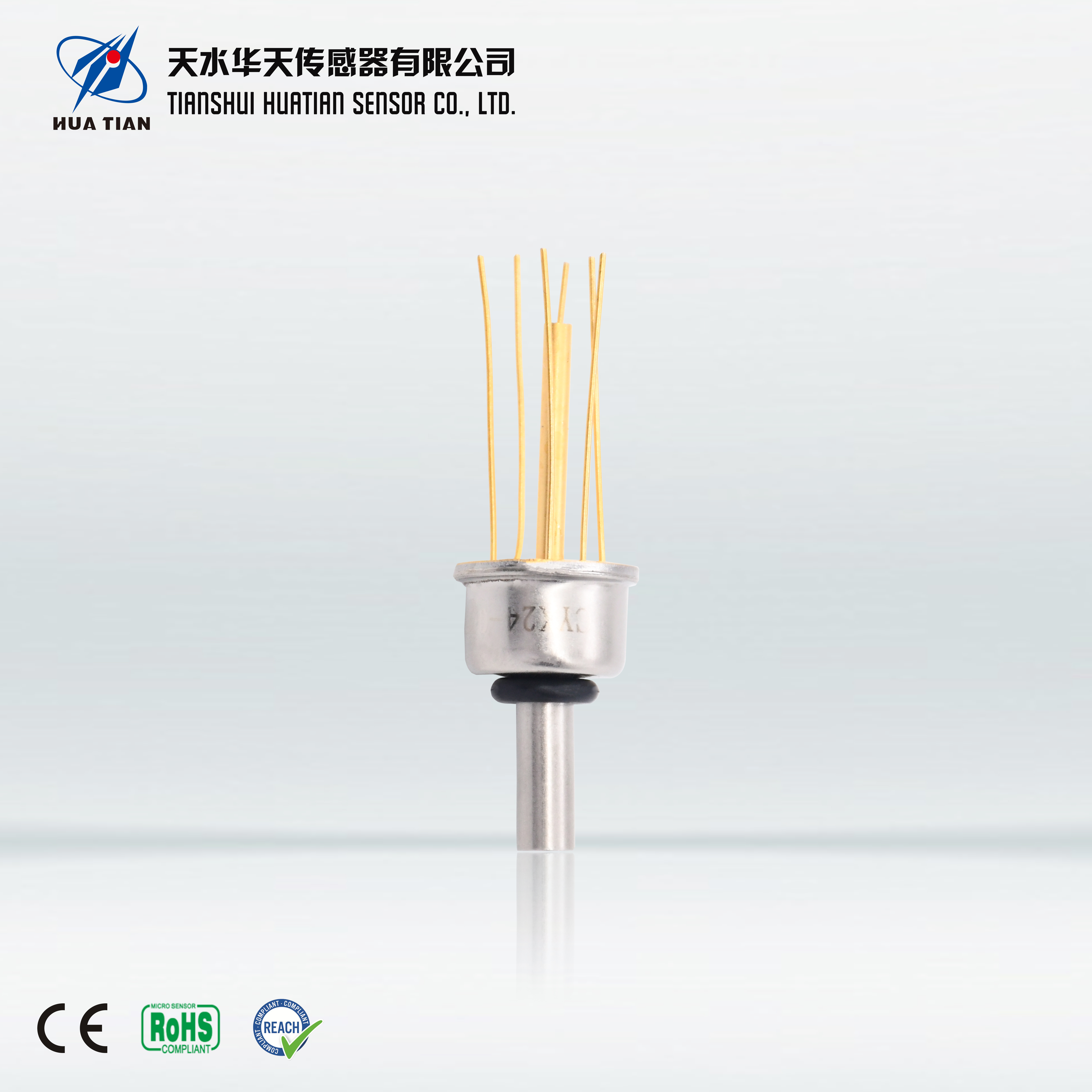

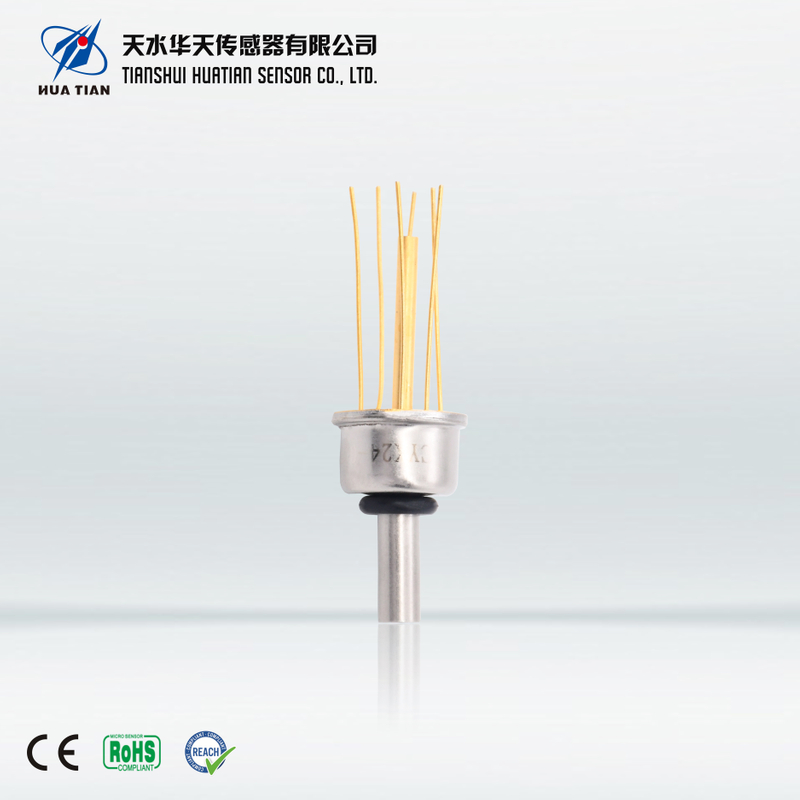

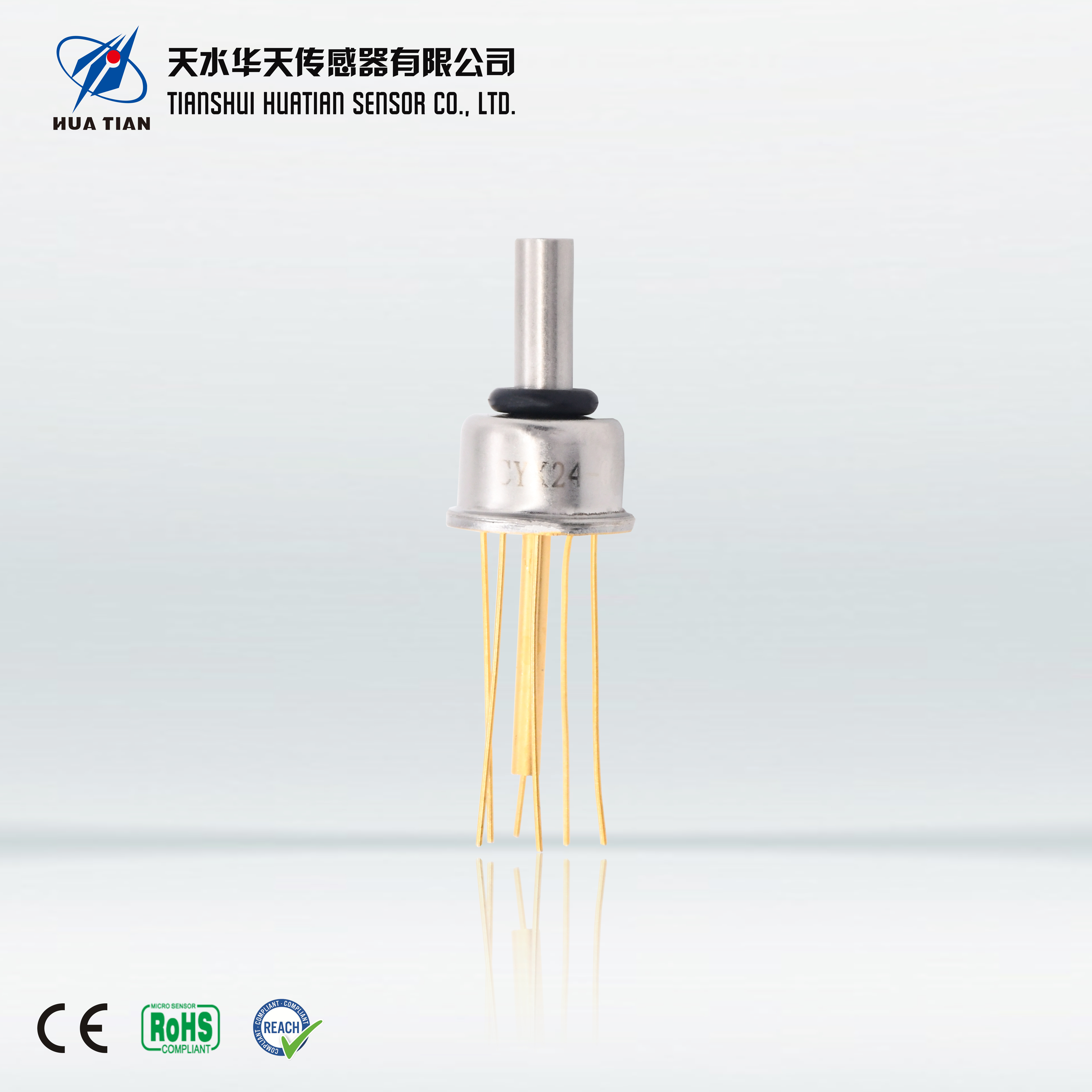

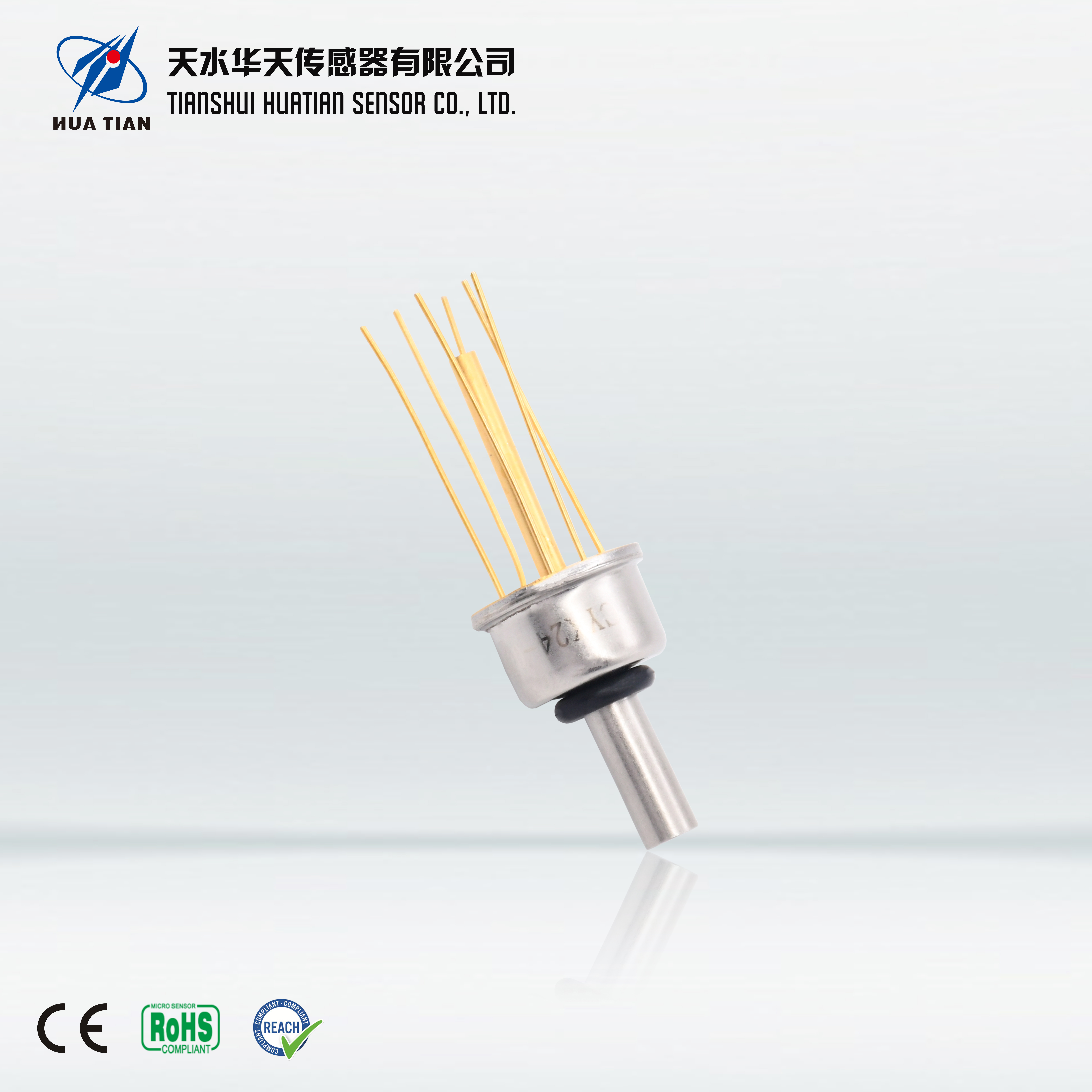

Introduction | CYX24 series pressure sensor adopts the internationally advanced high stability and highprecision silicon pressure chip, and adopts the sintering seat with stress optimization design,which is produced by the processes of chip mounting, gold wire bonding, pressure cycle stress relief, high temperature aging, temperature compensation, etc. With more than 30 years of development, production experience and technological innovation, the products have excellent stability and performance, and are widely recognized by users. CYX24 series pressure sensors are used for pressure detection of non-corrosive dry gases. |
Features | ● measurement range: 0kPa～2kPa…600kPa ● pressure forms: gauge pressure (G), absolute pressure (A) and differential pressure(D) ● constant current / voltage supply |

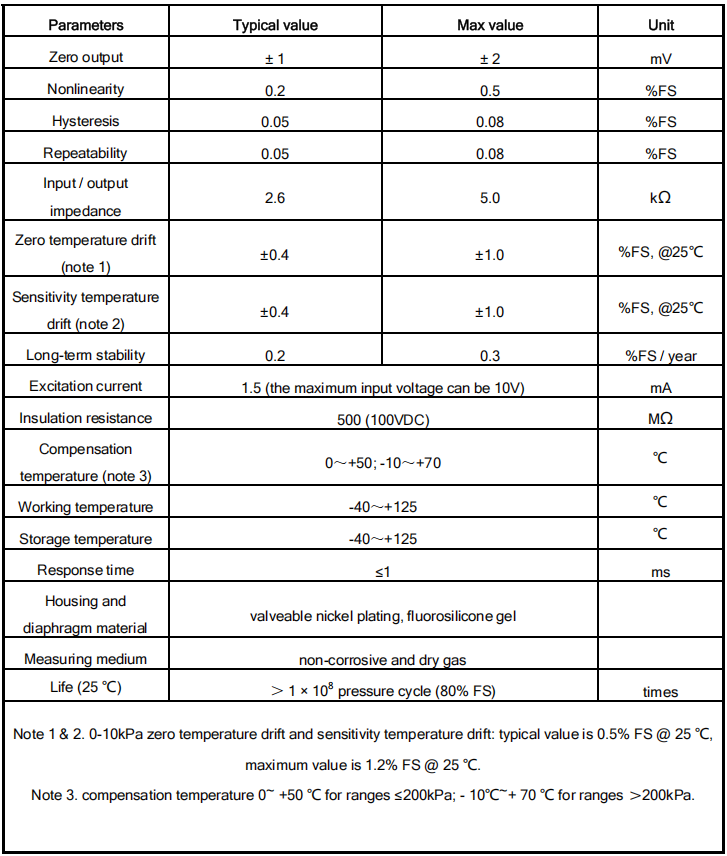

Technical specifications | Electrical performance ● power supply: ≤ 3.0mA; DC ≤ 10V DC ● electrical connection: 0.2mm² four color 100mm silicon rubber flexible wire ● common-mode voltage output: 50% of current type input (typical value), 40% of voltage type input (typical value) ● input impedance: 2.7kΩ ～ 5kΩ ● output impedance: 3.0kΩ ～ 6kΩ ● response time (10% - 90%): < 1ms ● insulation resistance: 500MΩ / 100V DC ● allowable overvoltage: 1.5 times of full scale Structure performance ● shell material: Kovar nickel plating ● pin lead: gilded Kovar Environment condition ● vibration: no change at 10gRMS, (20-2000) Hz ● constant acceleration: 100g, 11ms ● media compatibility: liquid or gas compatible with ss316L and NBR (Viton optional) Reference conditions ● medium temperature: (25 ± 3) ℃ ● ambient temperature: (25 ± 3) ℃ ● humidity: (50% ± 10%) RH ● ambient pressure: (86-106) kPa ● power supply: (1.5 ± 0.0015) mA DC |
