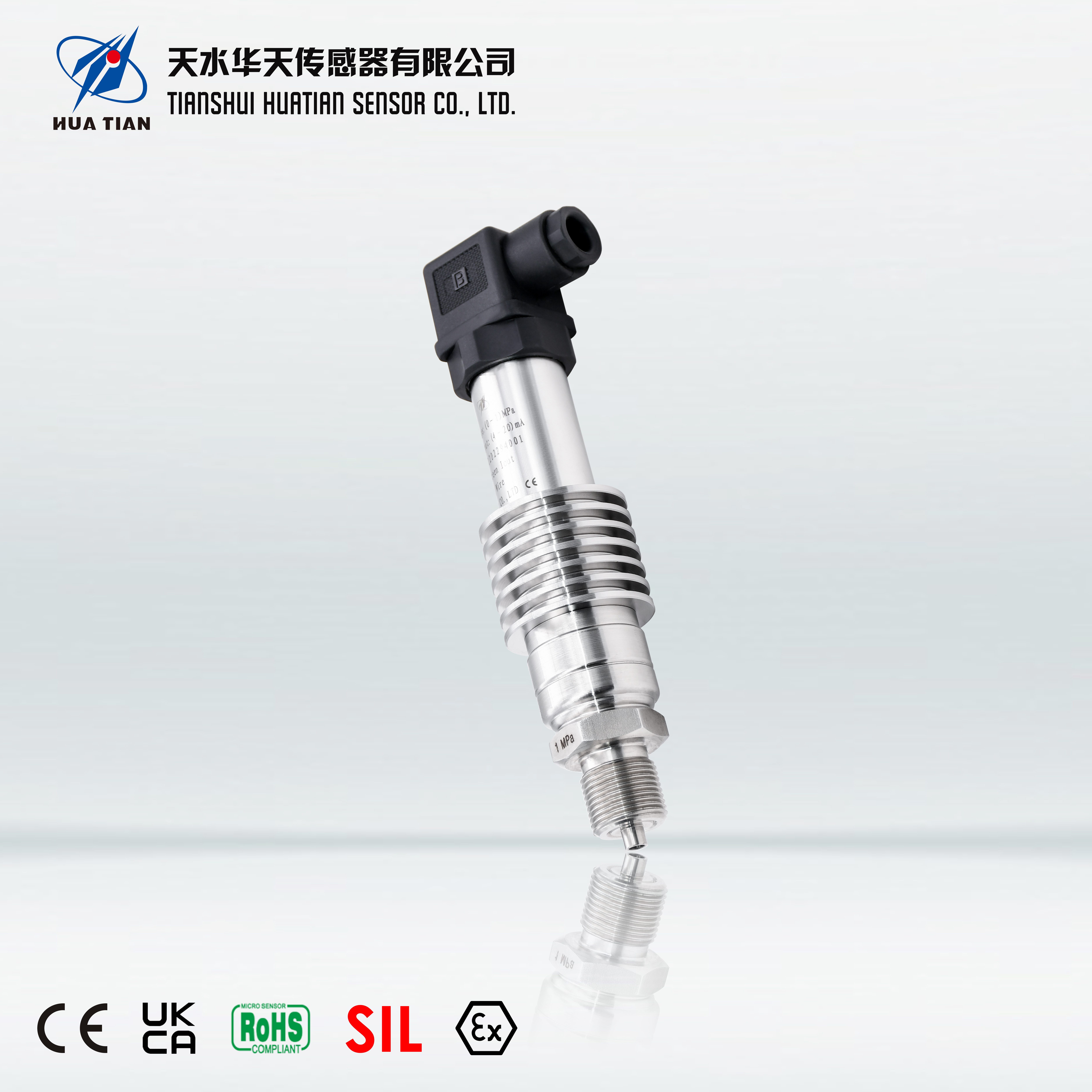

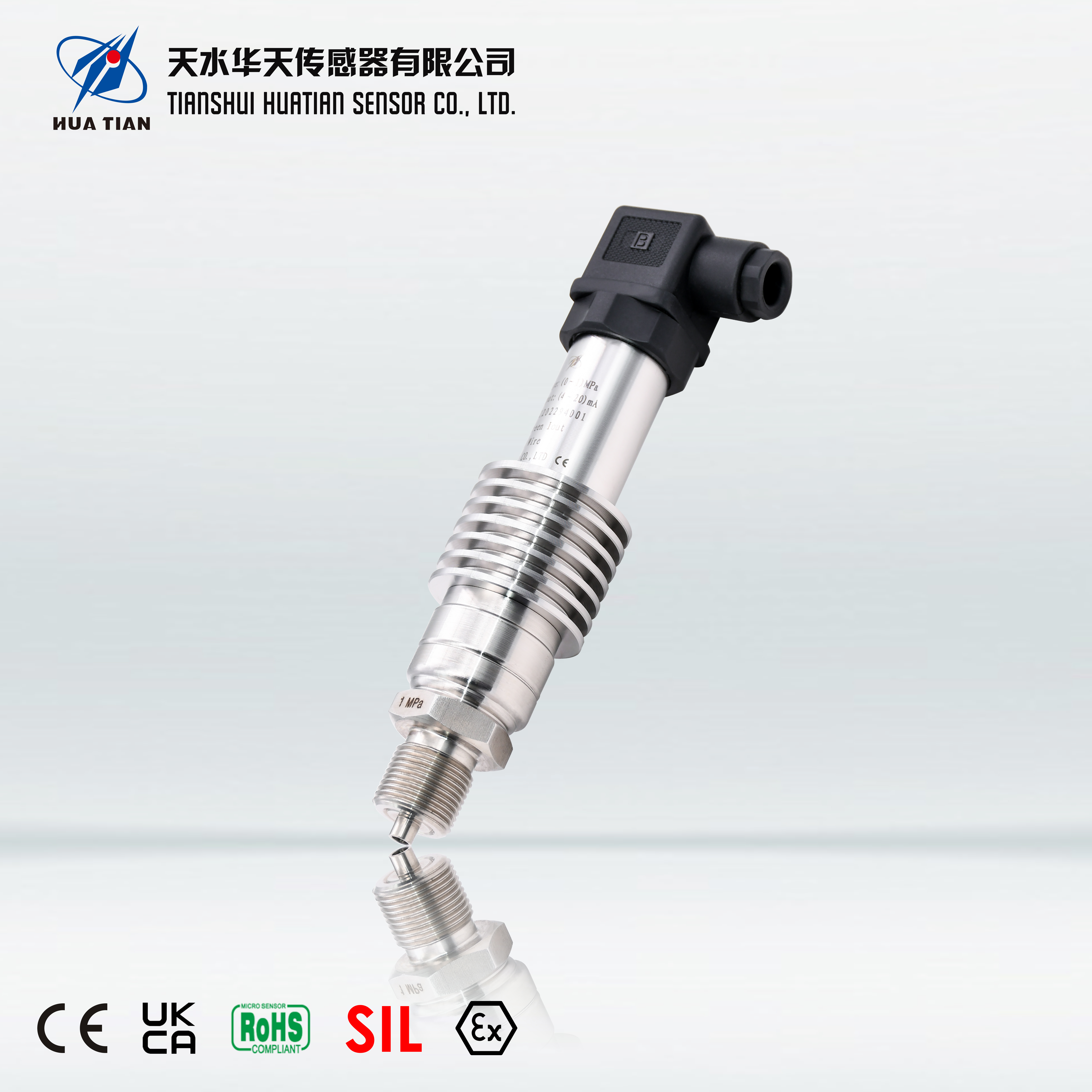

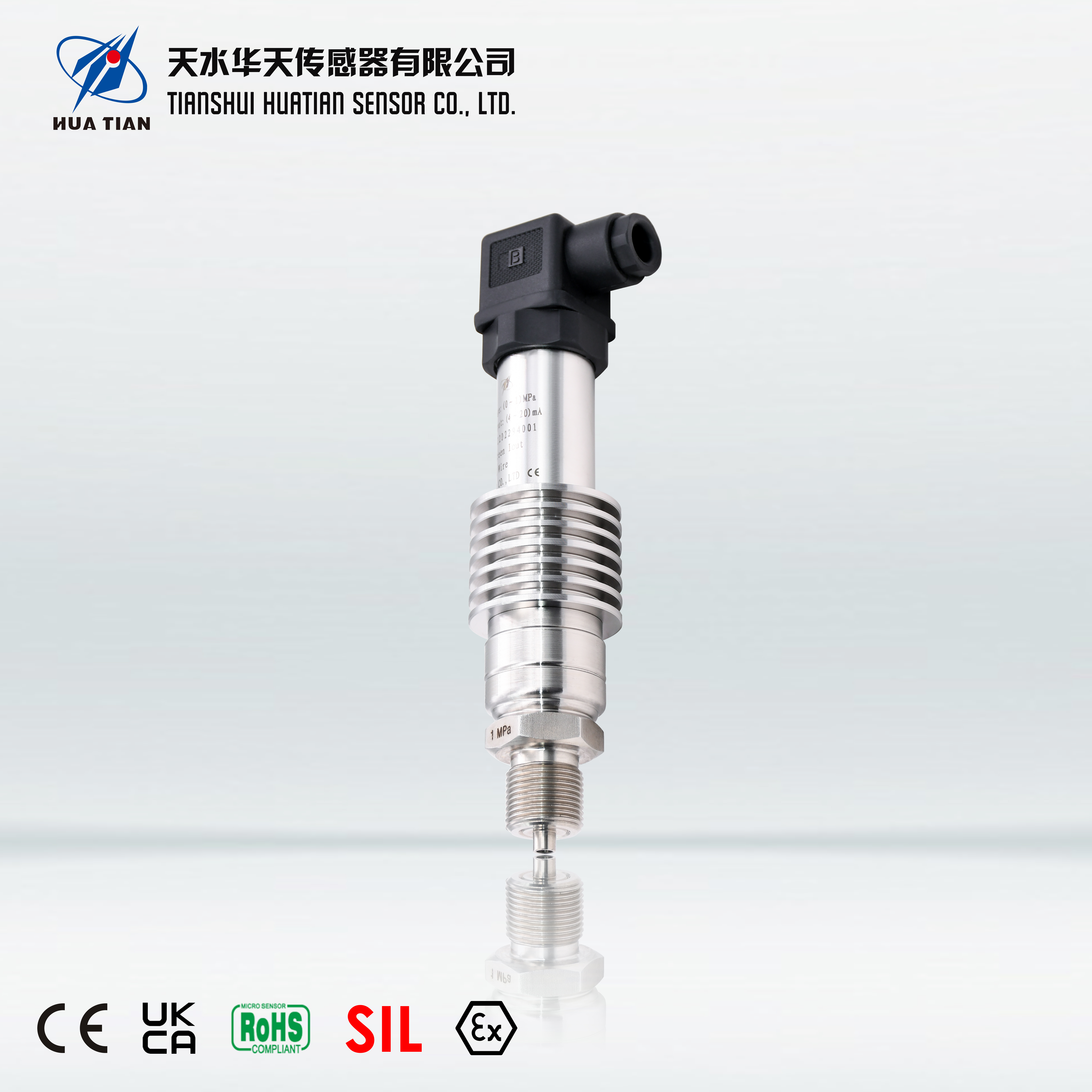

Model | CYB0900 Series |
Introduction | CYB0900 series high temperature pressure transmitter selects sapphire, sputtered film pressure sensor as the sensitive core, and outputs standard industrial application and networking signals through temperature compensation, digital circuit correction and signal conditioning. Each type of product has undergone careful design, component screening, process verification and curing, cyclic loading stress, aging, environmental simulation testing and other processes to ensure that each product is stable and reliable. |

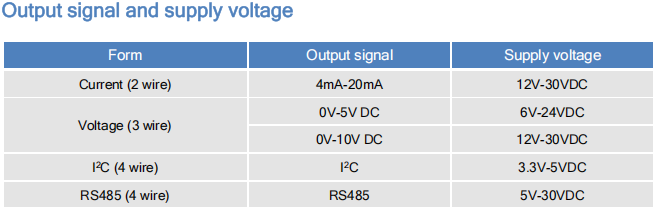

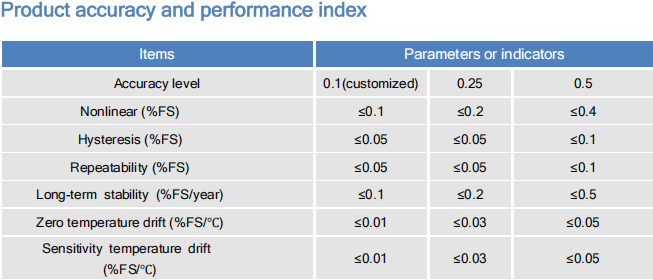

Features | ● Form of pressure: G, A, S ● Range: -0.1MPa … 0kPa-10kPa … 100MPa ● Overload capacity: ≤2 times(＜10MPa), ≤1.5 times(≥10MPa) ● Electrical connection: Housman socket, cable direct outlet, ● Aviation socket, industrial terminal ● Accuracy: ± 0.1%FS (customized), ± 0.25%FS, ± 0.5%FS ● Output signal: 4mA-20mA, 0V-10VDC, I 2C, RS485 ● Response time: ≤3ms (10%-90%) ● Measuring medium: fluids compatible with titanium alloy |
Applications | ● Petroleum ● Electric power ● Chemical industry ● Medicine ● Metallurgy ● Food ● Civil explosion ● Environmental protection |
Technical specifications |     |
