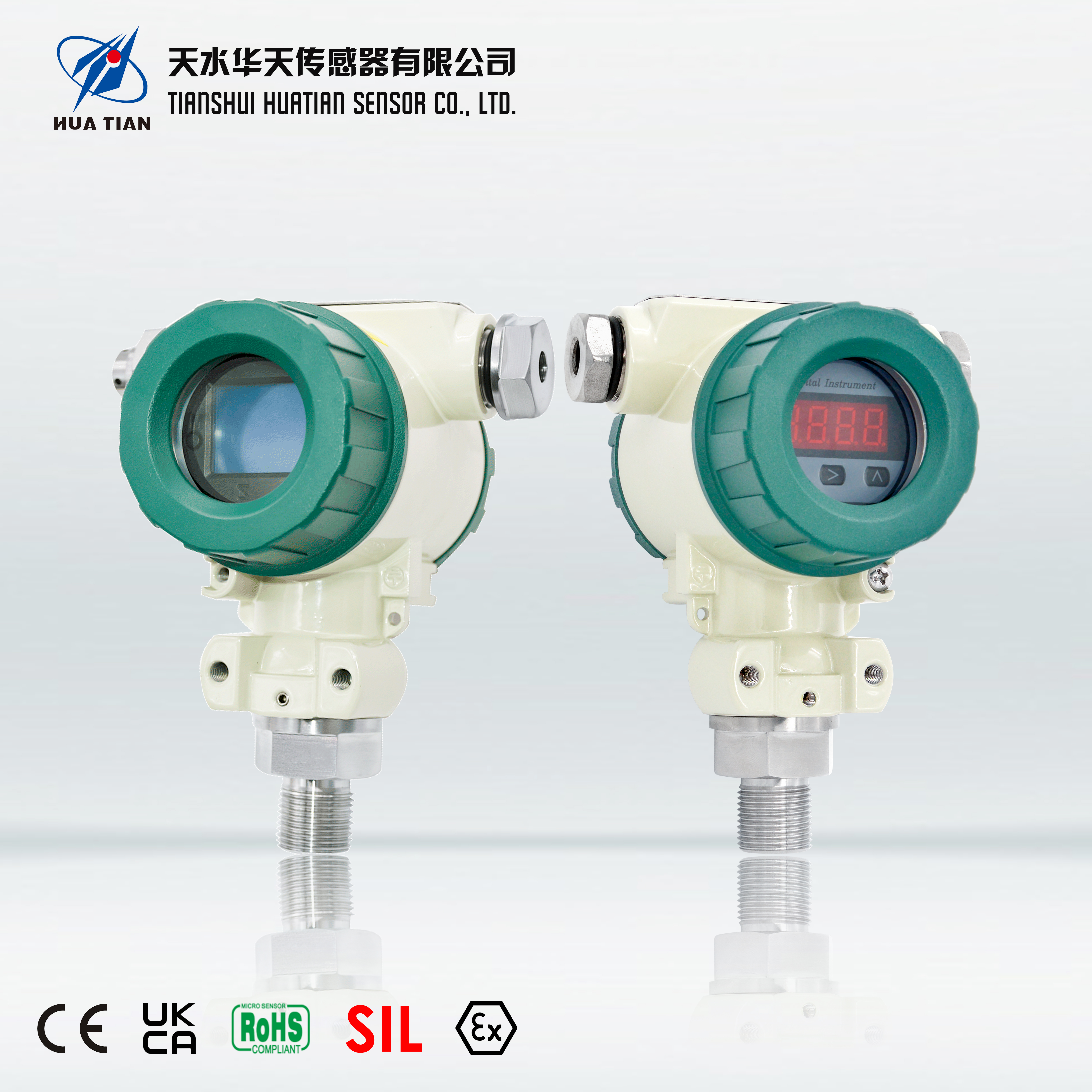

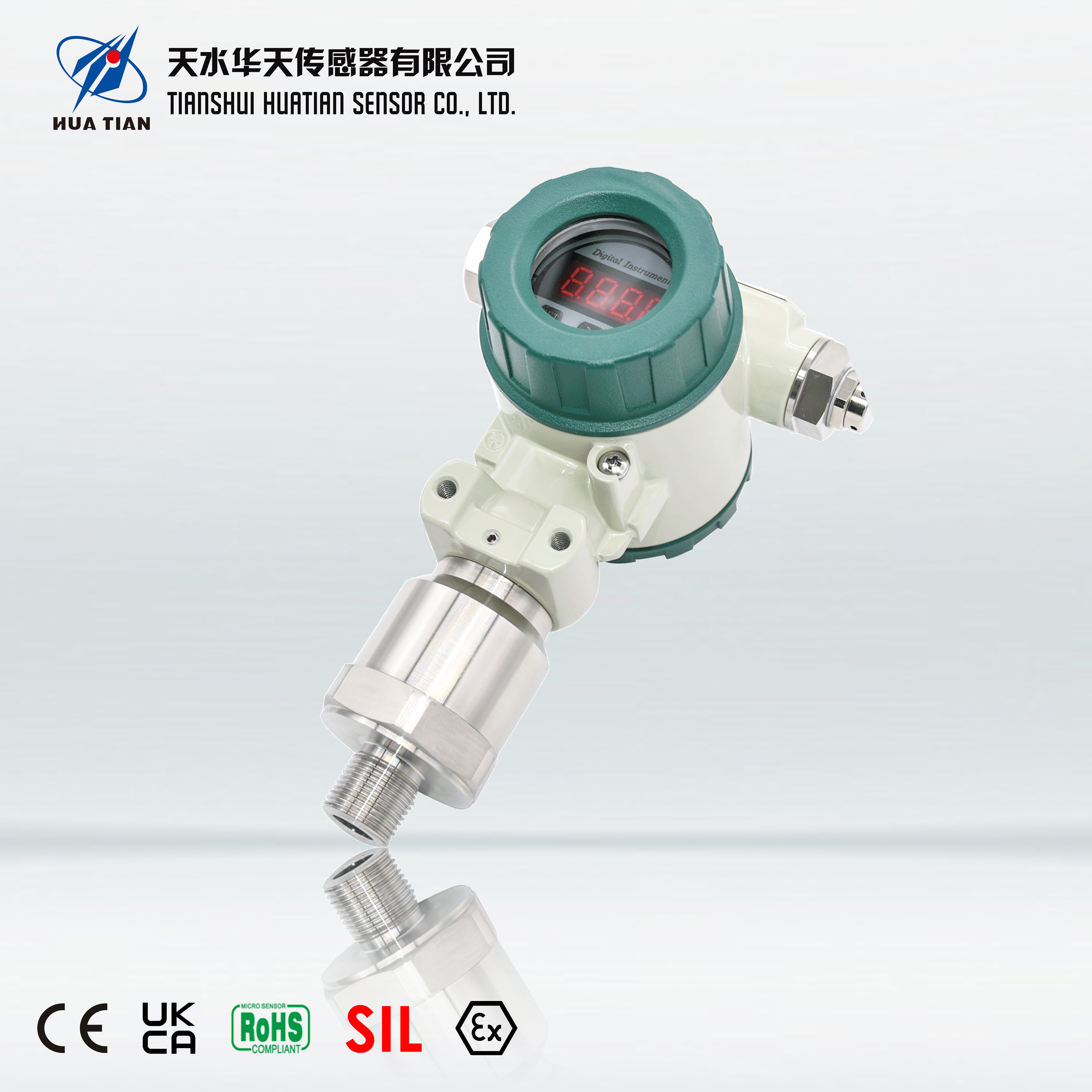

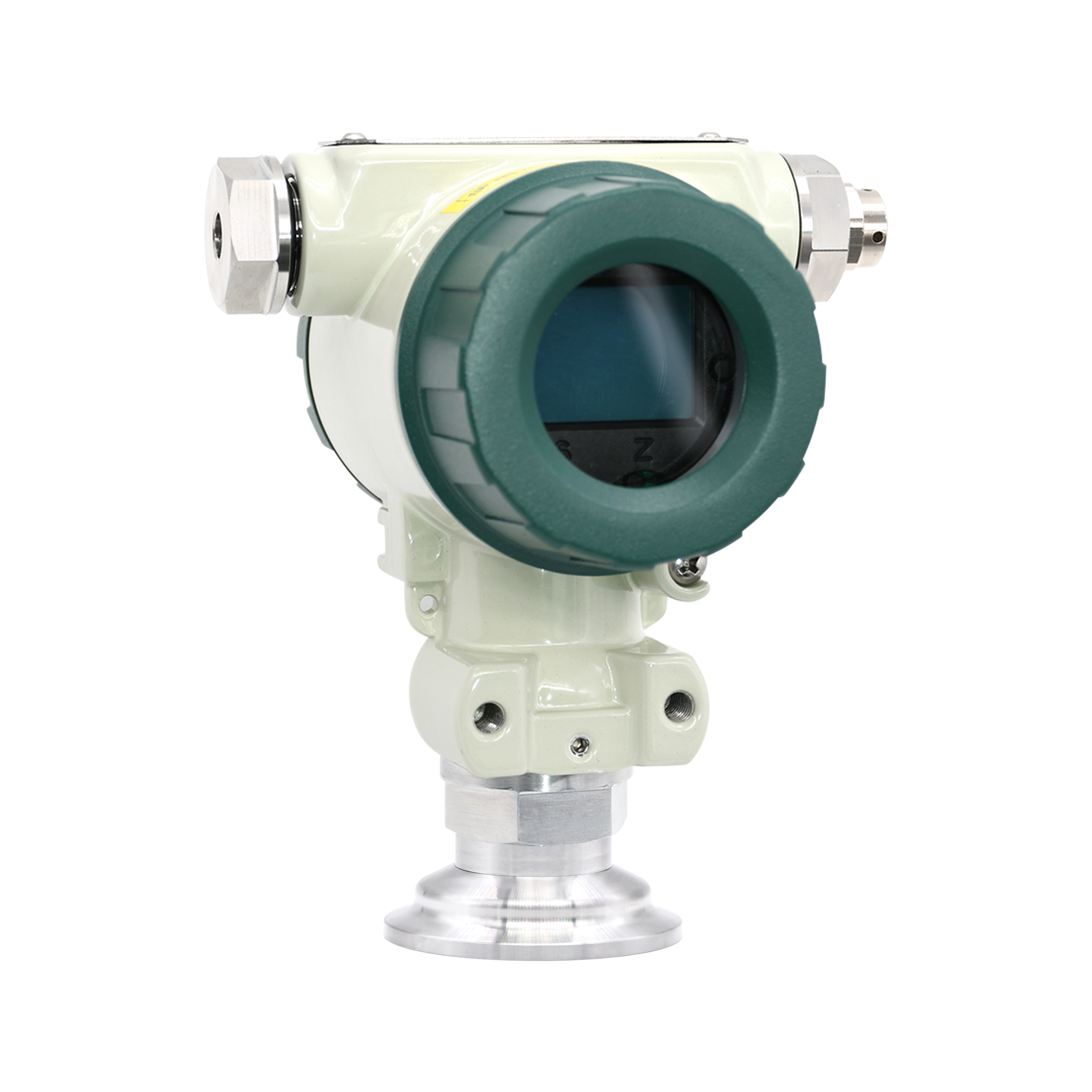

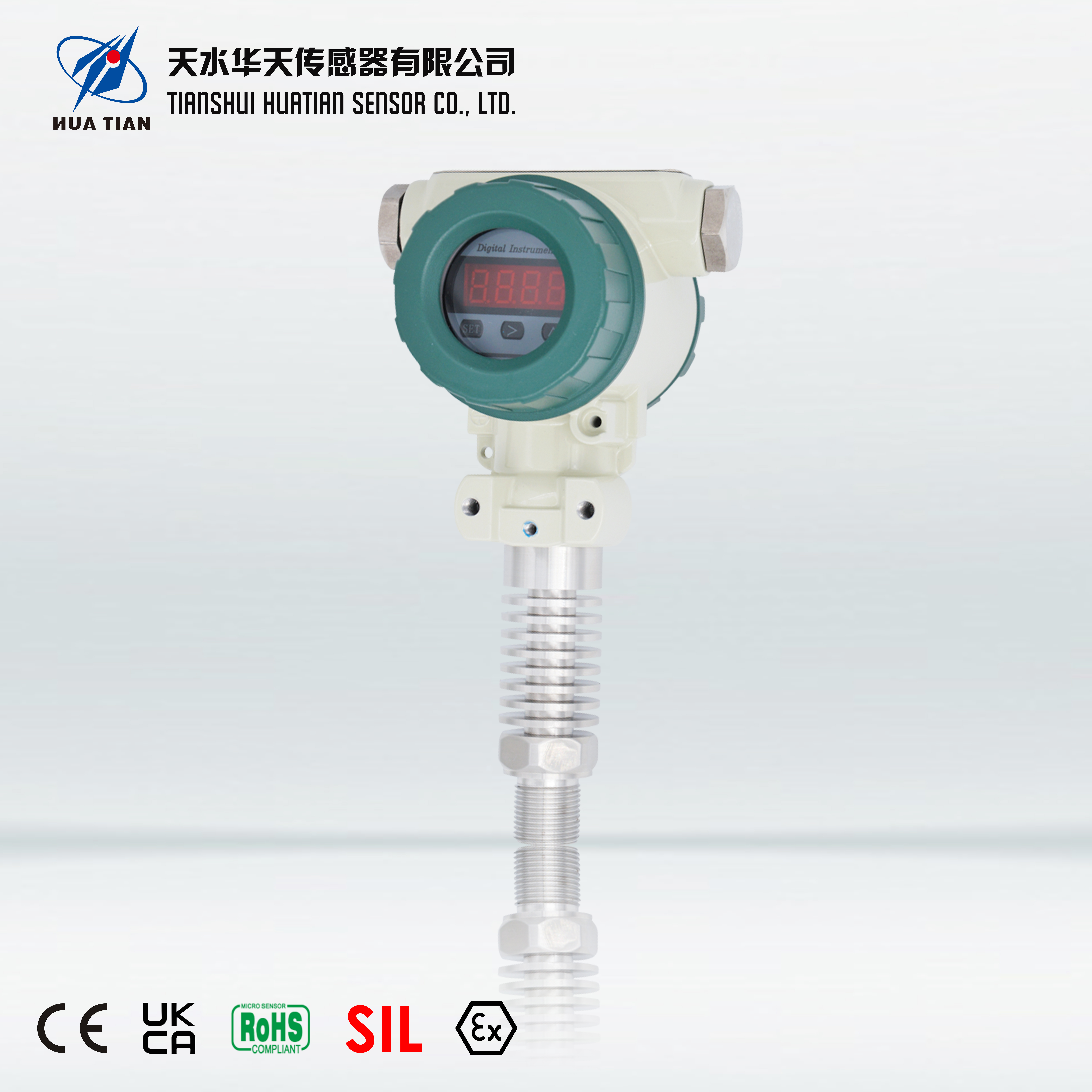

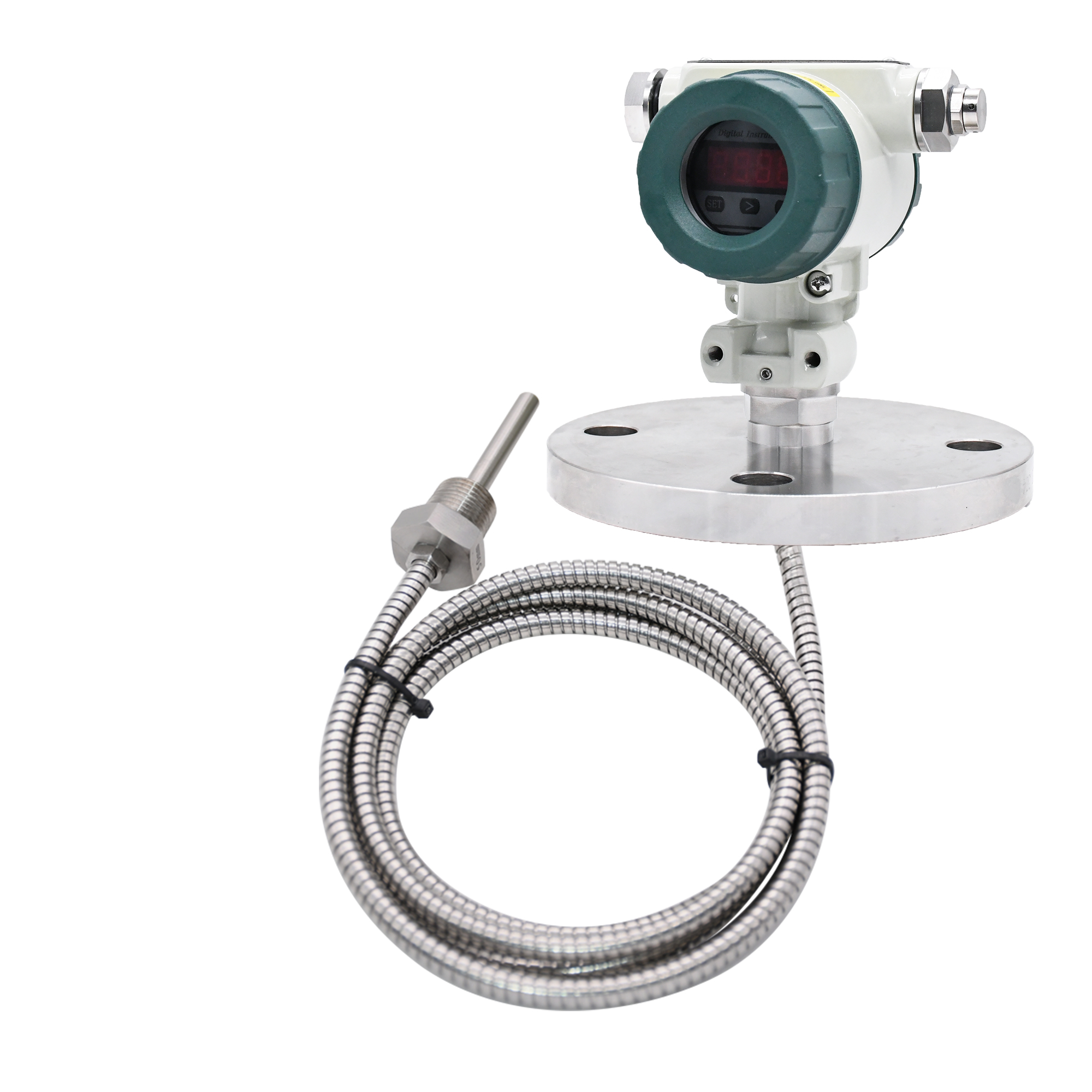

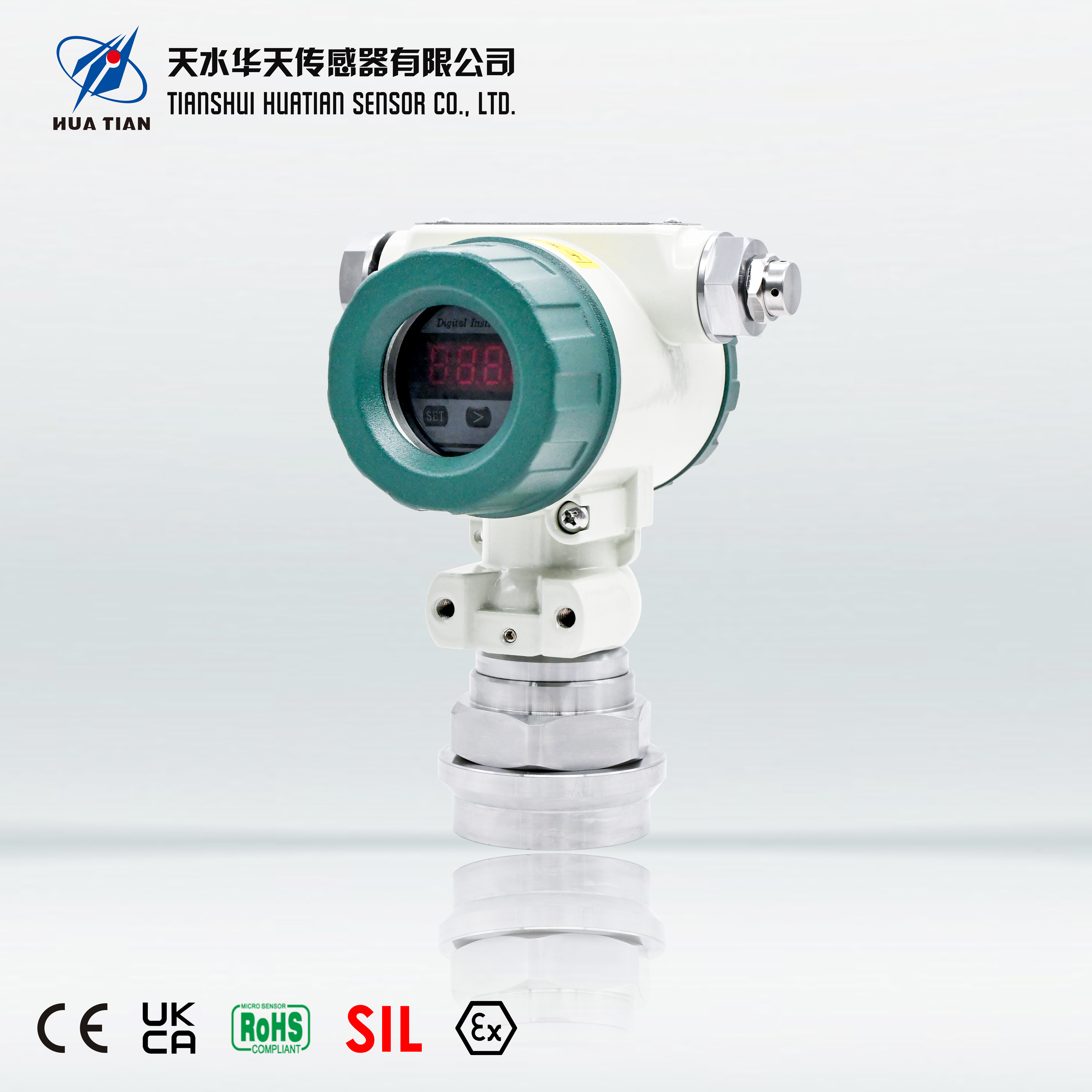

Model | CYB0500 Series Pressure Transmitters |
Introduction | The CYB0500 series industrial pressure transmitter carefully selects high reliability silicon pressure resistors, ceramic capacitors, sapphire, sputtering thin film pressure sensors, etc. as sensitive cores according to the application characteristics of different industries. After temperature compensation, digital circuit correction, and signal conditioning, it outputs standard industrial application and networking signals. Each product in this series of industrial pressure transmitters has undergone careful design, component screening, process validation curing, cyclic loading stress relief, aging, environmental simulation testing, and other processes to ensure the stability and reliability of each product. |

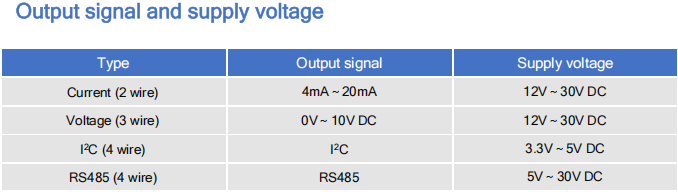

Features | ● Pressure form: Gauge pressure, absolute pressure, sealed gauge pressure ● Range: -0.1MPa … 0kPa～10kPa … 100MPa ● Overload capacity: ≤2times(＜10MPa), ≤1.5times（≥10MPa） ● Electrical connection: Industrial terminal blocks ● Accuracy: ±0.1%FS (customized), ±0.25%FS, ±0.5%FS ● Output signal: 4mA～20mA (HART protocol can be stacked), 0V～10VDC、 RS485 (can output 4mA to 20mA signals simultaneously), IIC ● On-site display: 4-digit LED / 4-digit LCD ● Respond time: ≤3ms（10%～90%） ● Measuring medium: fluid compatible with 304, 316L, or ceramic |
Applications | ● Coal mine ● Oil field ● Medicine ● Chemical industry ● Water services ● Civil explosion ● Shipping ● Environment protection |

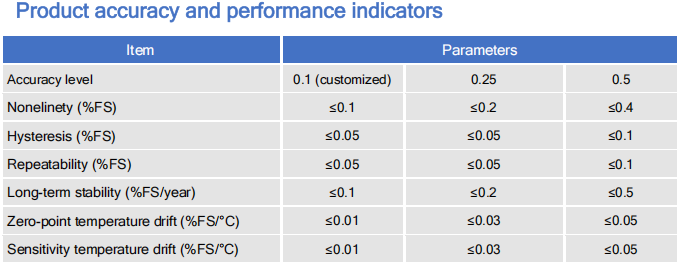

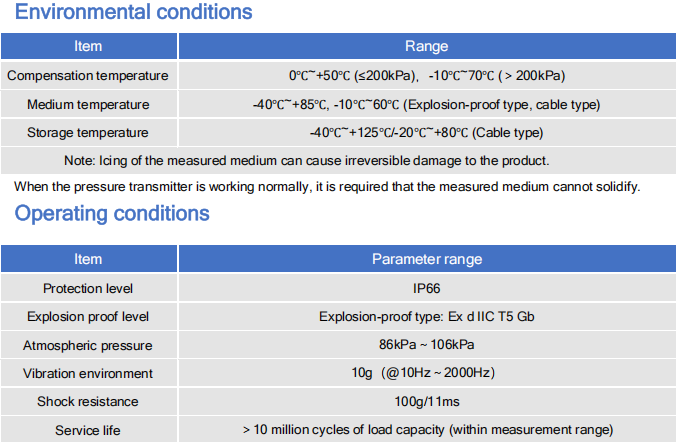

Technical specifications |     |
