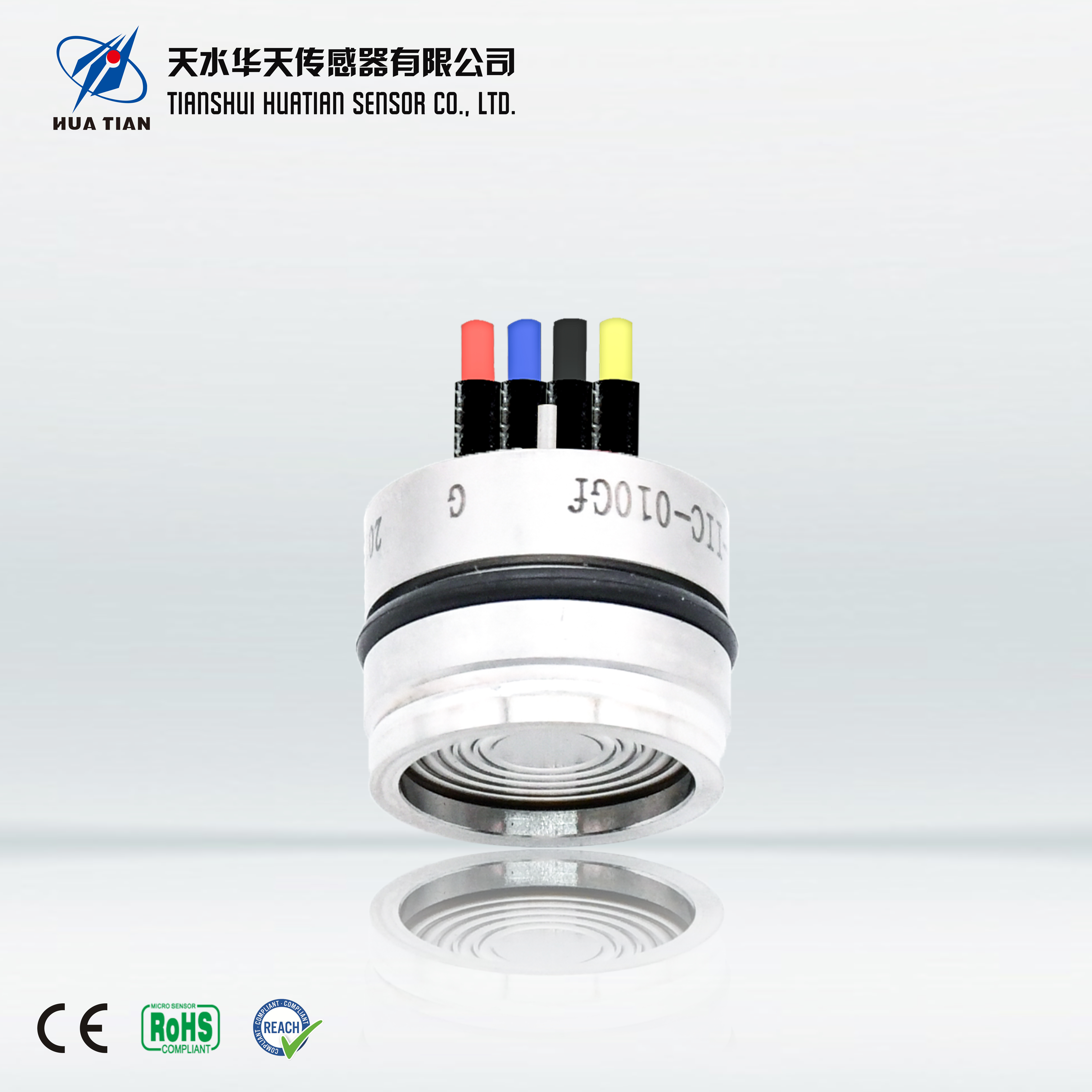

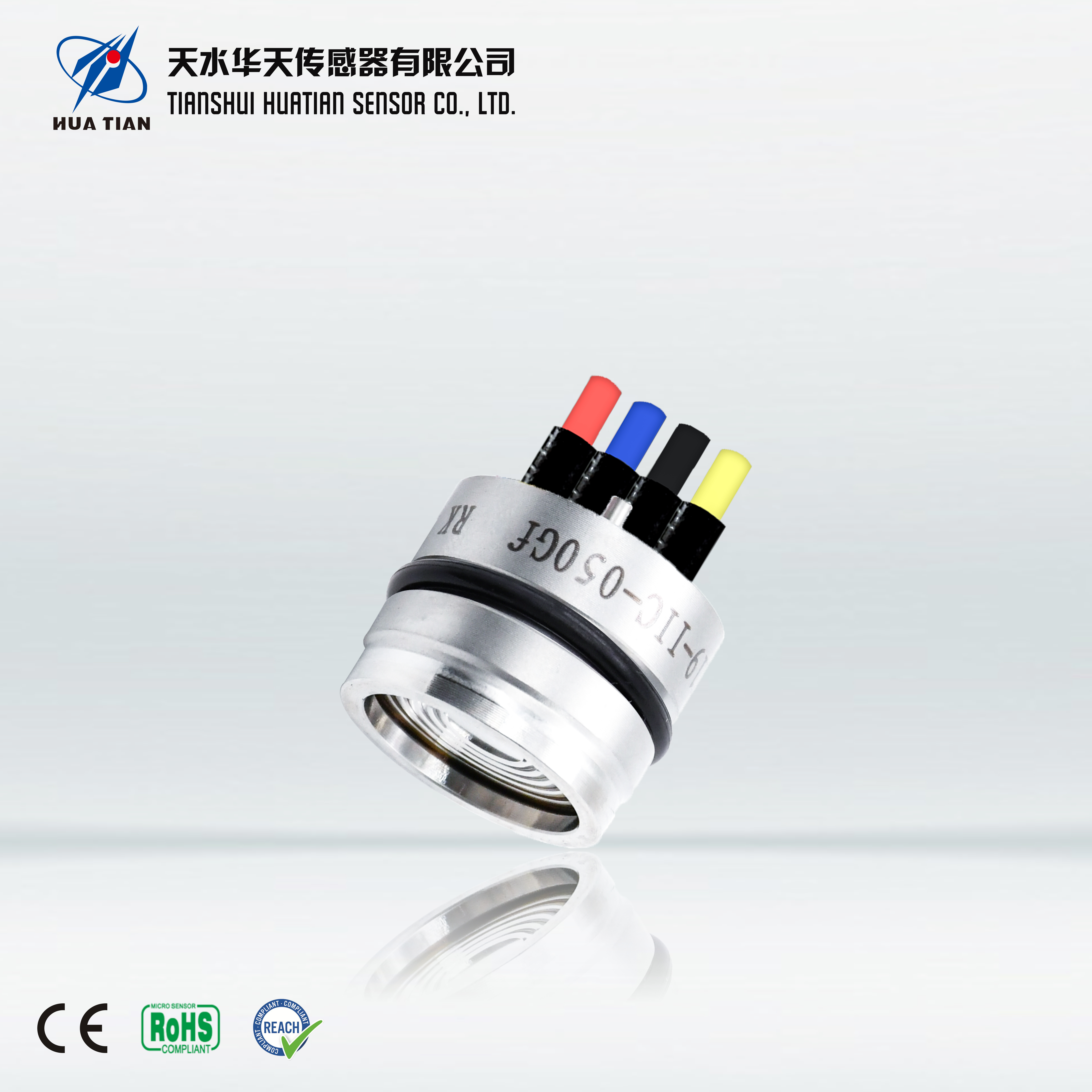

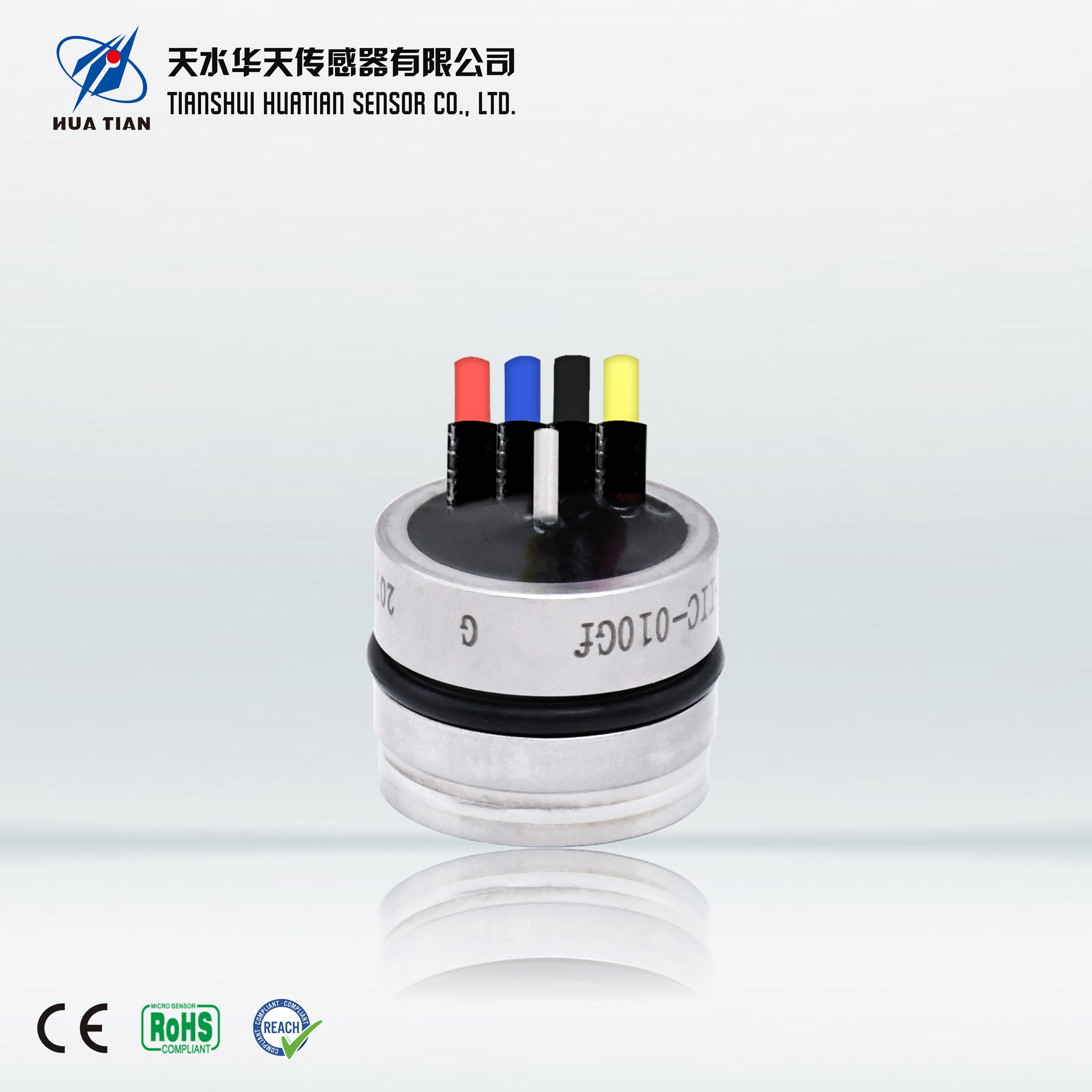

Modell | CYX19-IIC |
Introduction | CYX19-IIC series of oil-filled pressure sensors choose piezoresistive chip international advanced high-stability, high-precision silicon pressure chip, using stress-optimized design of the sintered seat, through the patch, gold wire bonding, diaphragm welding, high-vacuum oil-filled, pressure cycling de-stressing, high-temperature refining, temperature compensation, and other process production. After more than twenty years of development, production experience and process innovation, the product has excellent stability and excellent performance, widely recognized by users. CYX19-IIC oil-filled core pressure sensor and general-purpose CYX19 products have the same shape, assembly dimensions and sealing form, the measurement signal to the I2C bus mode digital output, the measurement range of -100kPa ~ 0kPa ~ 7kPa ... 100MPa. |
Features | ● range: -100kPa～0kPa～7kPa…100MPa ● available in Gauge Pressure (G), Absolute Pressure (A) and Sealed Gauge Pressure (S)forms ● digital compensation, digital output in I2C bus mode ● low power consumption, sleep mode operation ● Φ19mm Standard OEM pressure oiling core body |

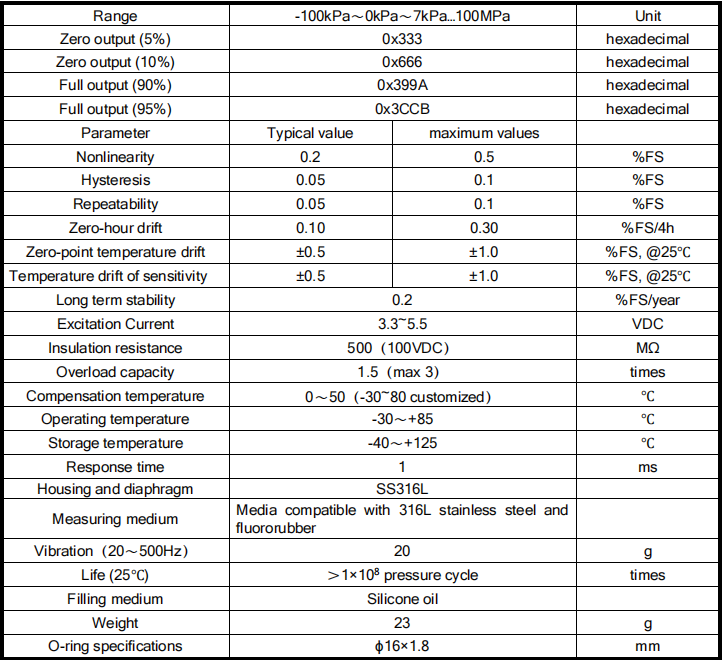

Technical specifications | Electrical performance ● power supply: 3.3V DC～5V DC ● electrical connection: 0.2mm2 4-color ,100 mm silicone rubber flexible conductor ● input impedance: 2.7kΩ～5kΩ ● output impedance: 3.0kΩ～6kΩ ● respond time: (10%～90%): 3ms ● insulation resistance: 500MΩ/100V DC ● allowable overvoltage: 1.5 times full scale Structure performance ● diaphragm material: stainless steel 316L ● Housing material: stainless steel 316L ● pressure pipe material: stainless steel 316L ● pin lead: Gold Plated Kovar ● sealing ring: fluoroelastomer ● net weight: about 23g Environmental conditions ● vibration: no change at 10gRMS, (20-2000) Hz ● constant acceleration: 100g, 11ms ● media compatibility: liquids or gases compatible with 316L stainless steel and fluoroelastomers Basic conditions ● medium temperature: (25± 3)℃ ● ambient temperature: (25± 3) ℃ ● humidity: (50%± 10%) RH ● environment pressure: (86～106)kPa ● power supply: (3.3/5± 0.1V DC) |
