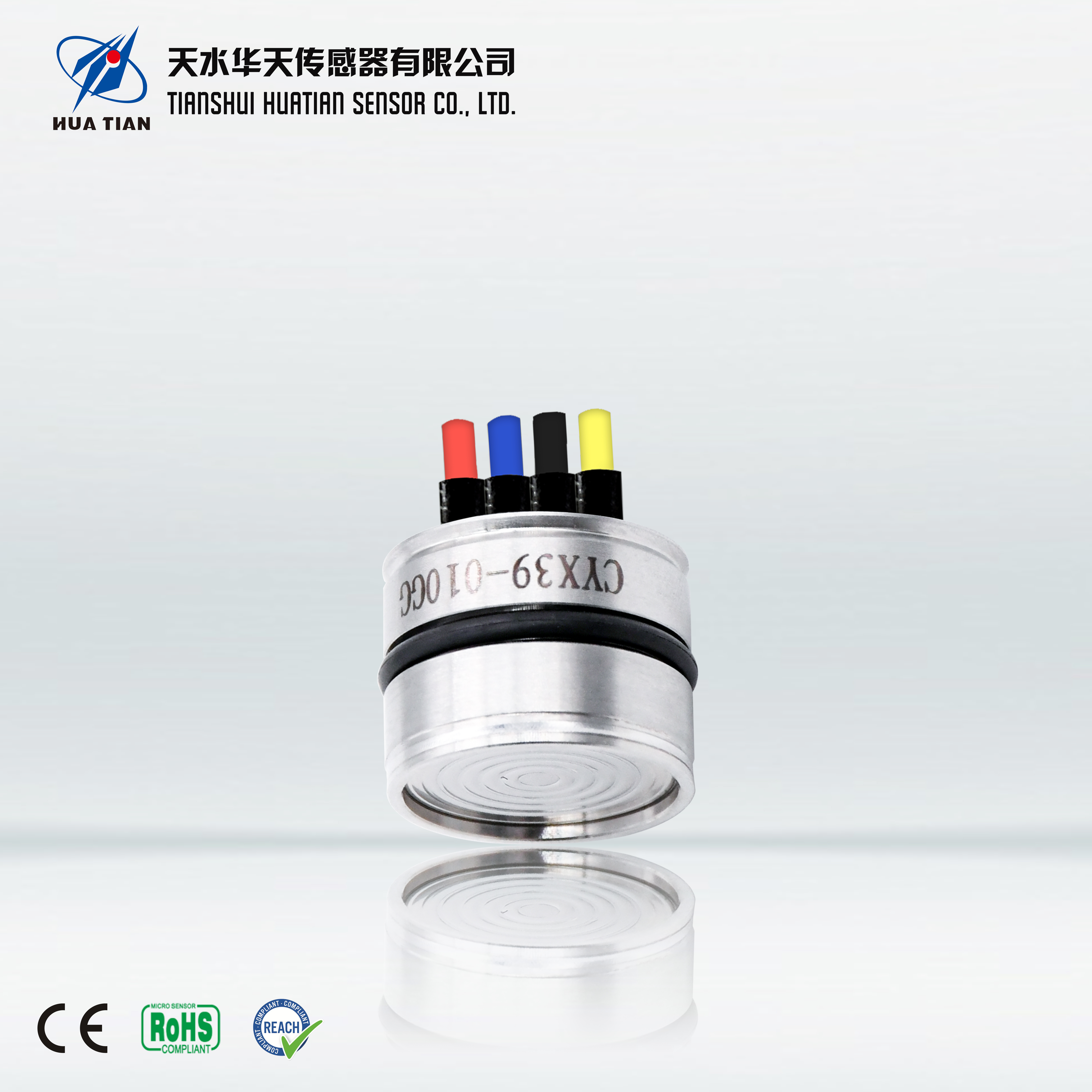

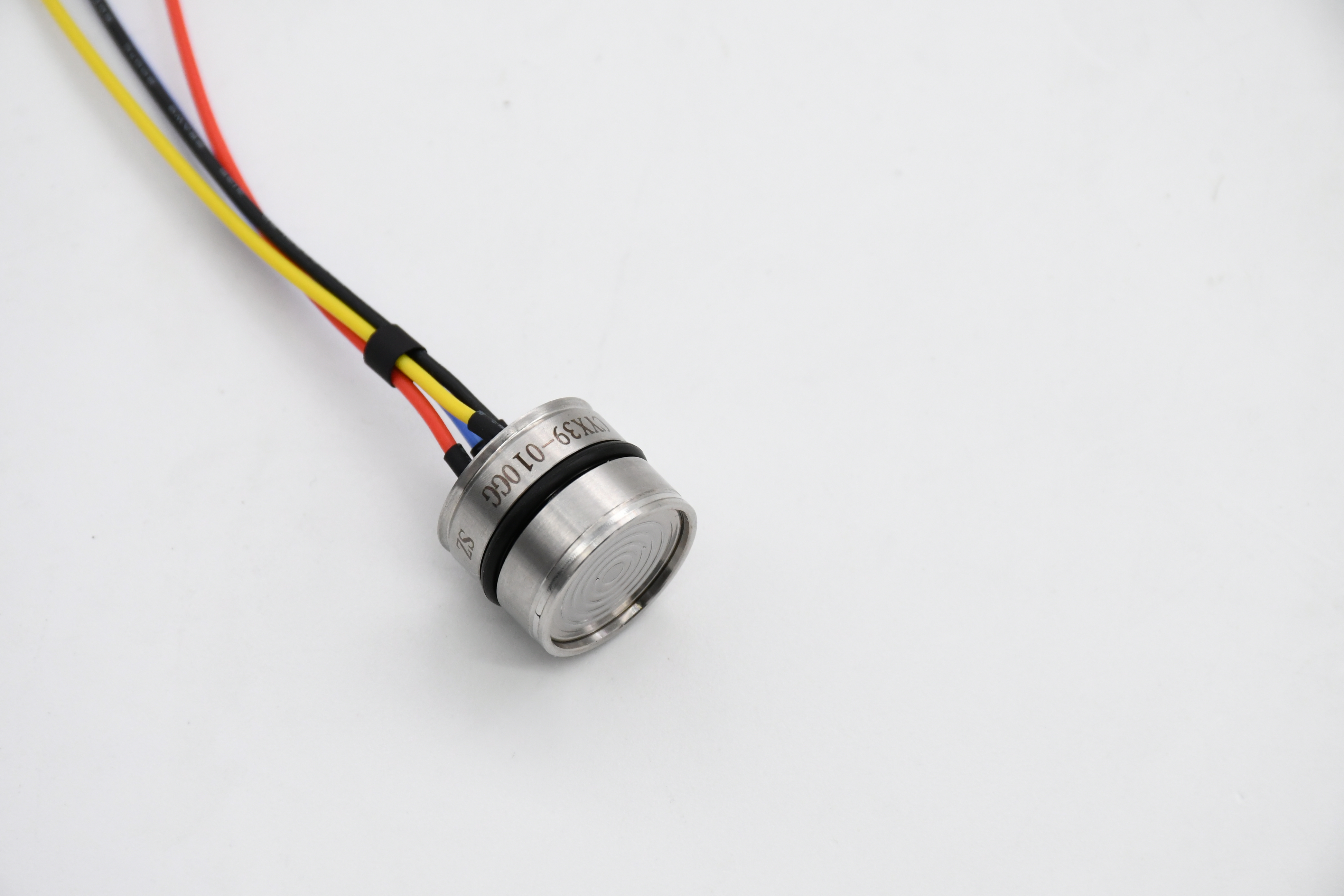

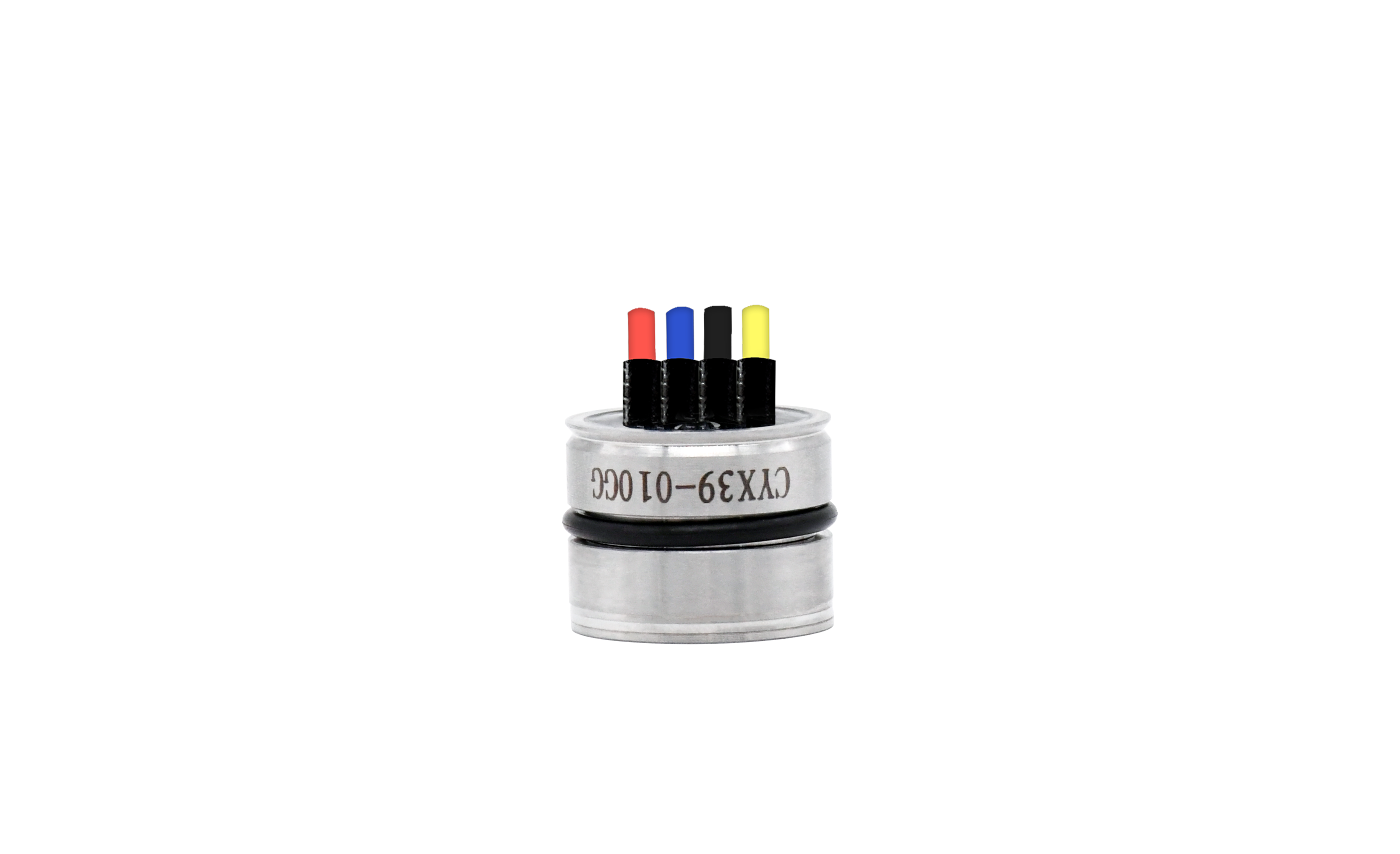

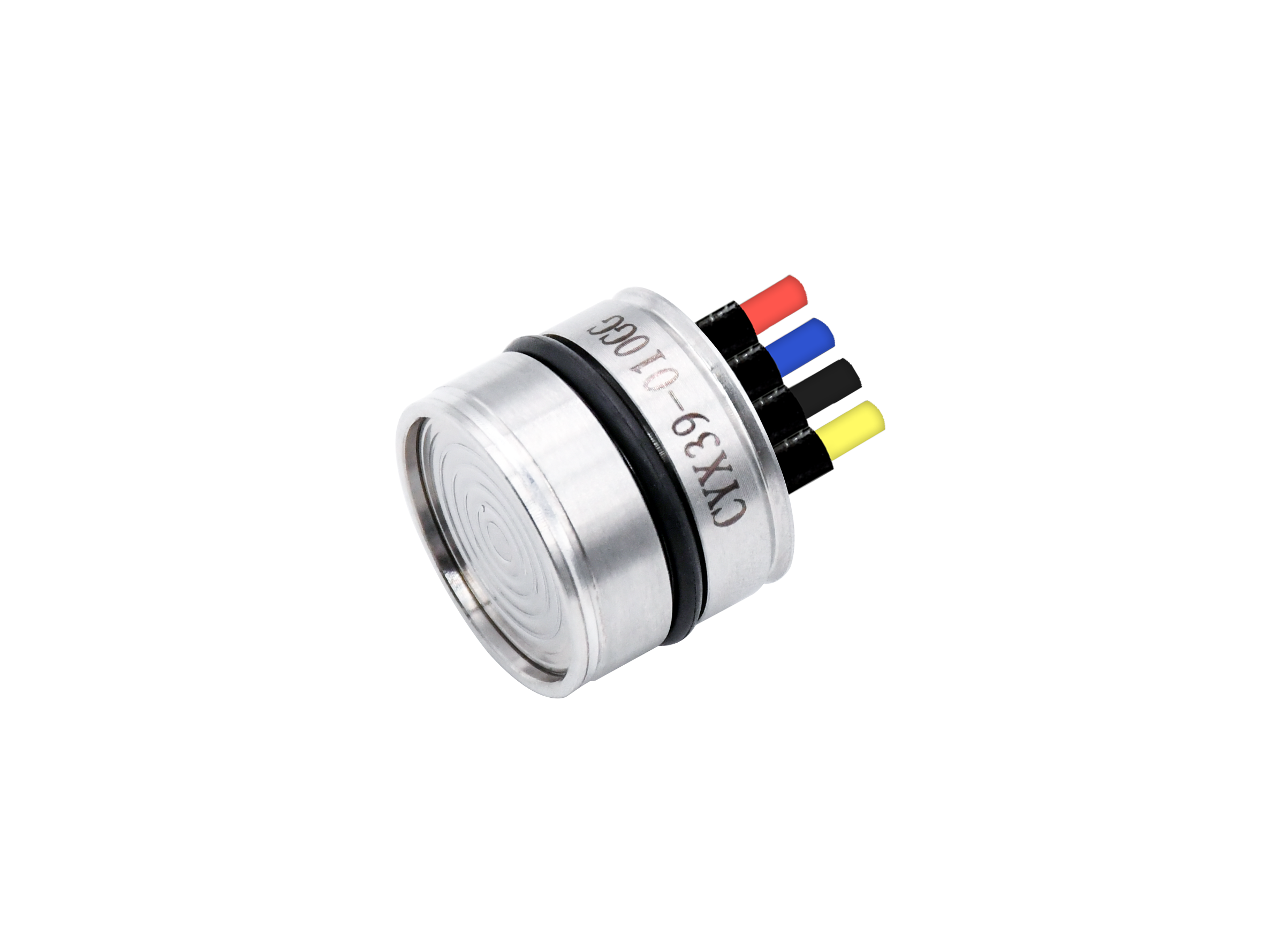

Model | CYX39 |
Introduction | The CYX39 series is a medium-isolated high-precision pressure sensor. The product uses internationally advanced, highly stable, and highly reliable diffusion silicon chips, which are encapsulated in a 316L stainless steel structure with an outer diameter of 19 mm. Through processes such as chip mounting, gold wire bonding, diaphragm welding, and high-vacuum oil filling, the product meets industrial measurement requirements. The product eliminates residual stress through structural optimization and fatigue pulsation processing, significantly improving its temperature drift performance (typical value ≤0.5% FS @ 25℃, range ≥10 kPa), outperforming conventional products. It is suitable for scenarios requiring long-term continuous monitoring (such as process industries and liquid level monitoring), reducing calibration frequency and lowering maintenance costs. |
Features | ● lrange: 0kPa～7kPa…35kPa ● pressure form: gauge pressure ● constant current/voltage power supply ● isolated structure, suitable for multiple fluid media ● Φ 19mm standard OEM pressure oil injection core ● shell material: 316L stainless steel and Kovar alloy ● diaphragm material: 316L stainless steel |

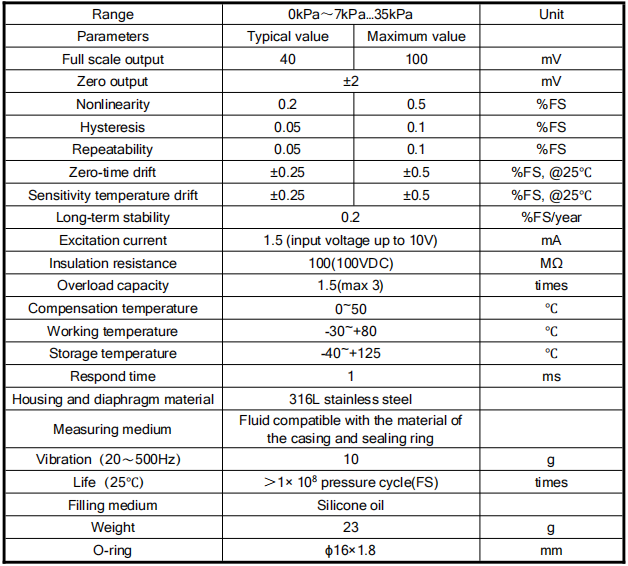

Technical specifications | Electrical performance ● power supply: ≤3.0mA, DC≤10V DC ● electrical connection: 0.2mm2 4-color ,100 mm silicone rubber flexible conductor ● common mode voltage output: 50% of current input (typical), 40% of voltage input (typical) ● input impedance: 1kΩ~5kΩ ● output impedance: 2.5kΩ~5.5kΩ ● response time (10% - 90%): < 1ms ● insulation resistance: 100MΩ / 100V DC ● allowable overvoltage: 1.5 times of full scale Structure performance ● diaphragm material: stainless steel 316L ● shell material: Stainless steel 316L ● pressure tube material: gold-plated Kovar ● pin leads: Gold-plated Kovar ● sealing ring: Nitrile rubber, fluorine rubber (optional) ● net weight: about 23g (general) Environmental conditions ● vibration: no change at 10gRMS, (20-2000) Hz ● constant acceleration: 100g, 11ms ● media compatibility: liquid or gas compatible with 316L and NBR (Viton optional) Reference conditions ● medium temperature: (25 ± 3) ℃ ● ambient temperature: (25 ± 3) ℃ ● humidity: (50% ± 10%) RH ● ambient pressure: (86-106) kPa ● power supply: (1.5 ± 0.0015) mA DC |
