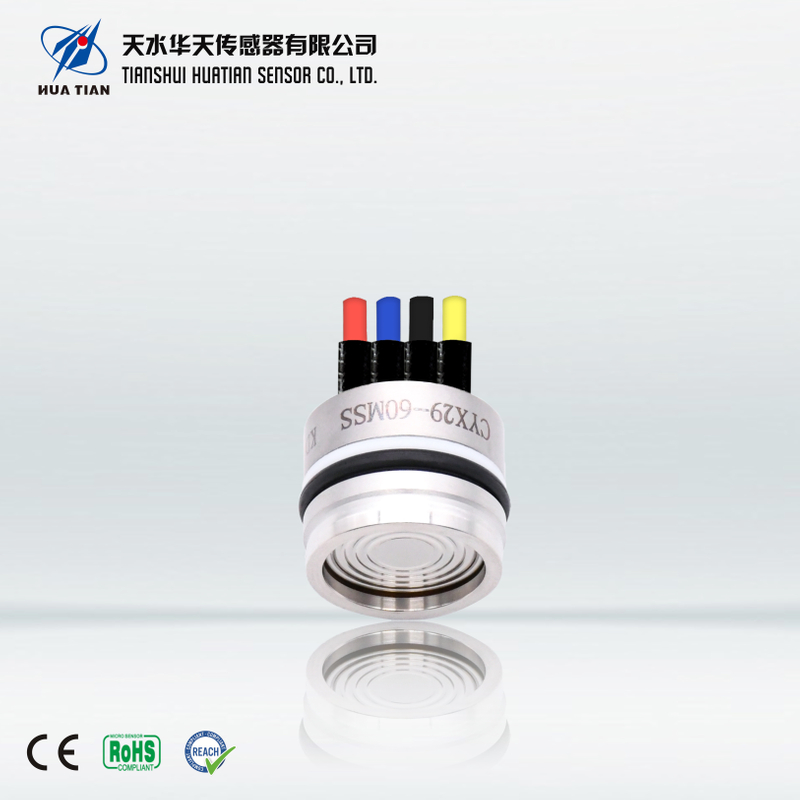

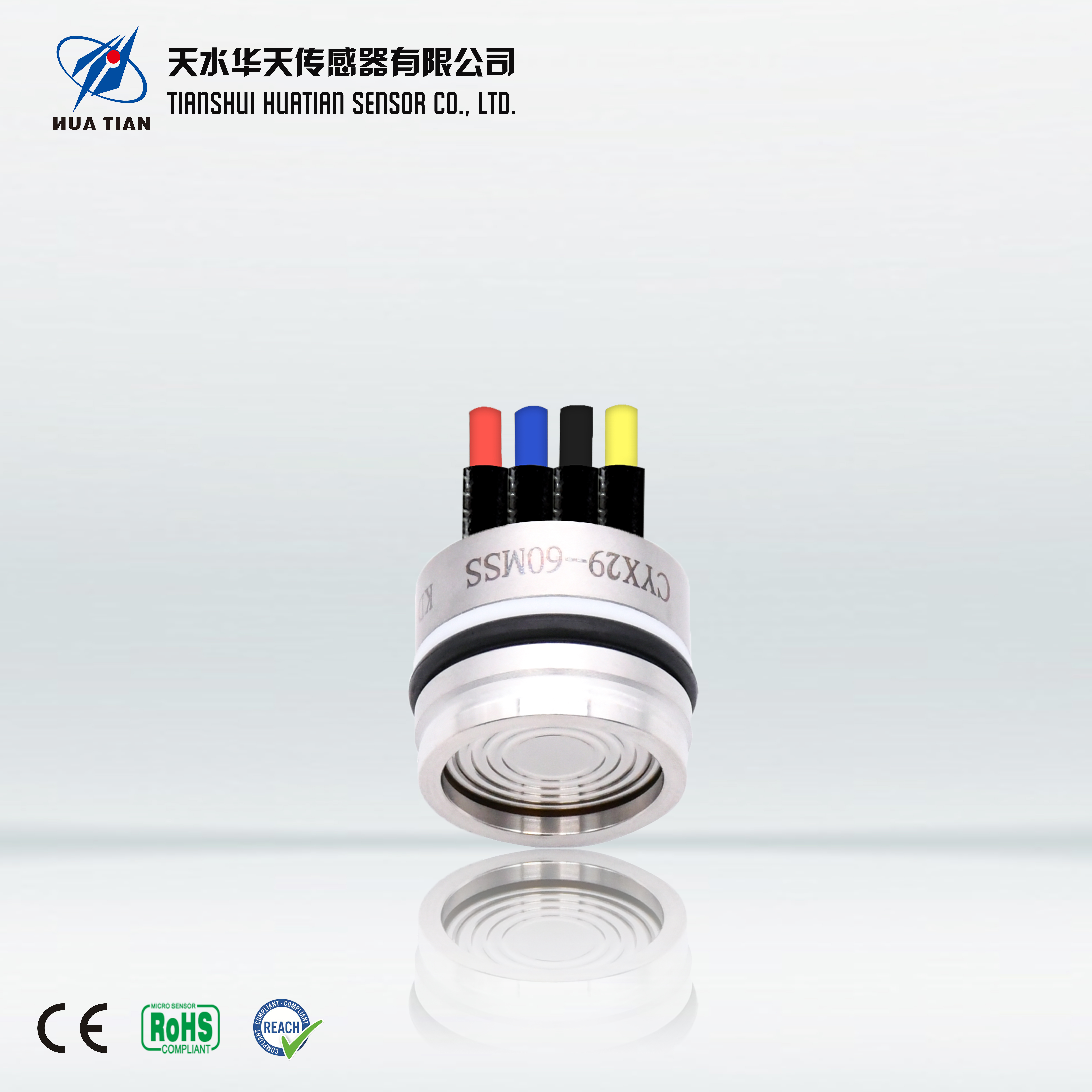

Modell | CYX29 |
Introduction | CYX29 series of oil-filled pressure sensors use domestic high-stability, high-precision silicon pressure chip, using stress-optimized design of the sintered seat, through the patch, gold wire bonding, diaphragm welding, high-vacuum oil-filled, pressure cycling de-stressing, high-temperature refining, temperature compensation, and other process production. More than thirty years of development, production experience and process innovation, the product has excellent stability and excellent performance, widely recognized by users. |
Features | ● range: 0kPa～100kPa…100MPa ● pressure forms: gauge pressure (G), absolute pressure (A) and seal gauge pressure(S) ● constant current/voltage power supply ● isolated structure, suitable for multiple fluid media ● Φ 19mm standard OEM pressure oil injection core ● all 316L stainless steel, titanium construction optional, tantalum diaphragm customized |

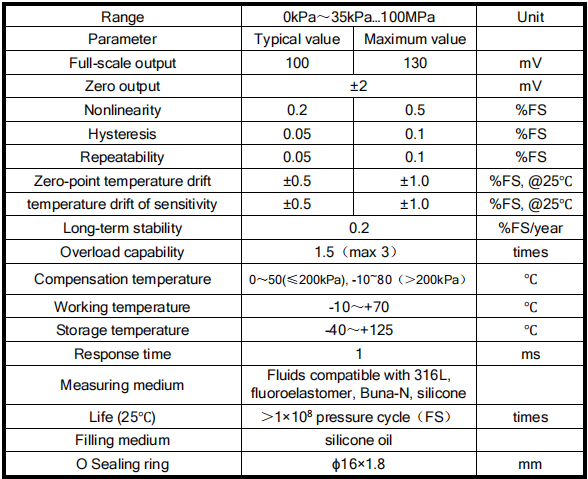

Technical specifications | Electrical performance ● power supply: ≤2.0mA, DC≤10V DC ● electrical connection: 0.2mm2 four color 100mm silicone rubber flexible wire ● common-mode voltage output: 50% of current type input (typical value), 40% of voltage type input (typical value) ● response time (10% - 90%): < 1ms ● insulation resistance: 500MΩ / 100V DC ● allowable overvoltage: 1.5 times of full scale Structure performance ● diaphragm material: stainless steel 316L titanium TA1 (type CYX29Ti) ● shell material: stainless steel 316L Titanium TC4 (Type CYX29T) ● pressure tube material: stainless steel 316L ● pin Leads: Gold Plated Corvair ● sealing ring: NBR, Viton (optional) ● net weight: about 23g (general purpose) Environment condition ● vibration: no change at 10gRMS, (20-2000) Hz ● constant acceleration: 100g, 11ms ● media compatibility: liquid or gas compatible with 316L and NBR (FKM optional) Reference conditions ● medium temperature: (25 ± 3) ℃ ● ambient temperature: (25 ± 3) ℃ ● RH humidity: (50% ± 10%) RH ● ambient pressure: (86-106) kPa ● power supply: (1.5 ± 0.0015) mA DC |
