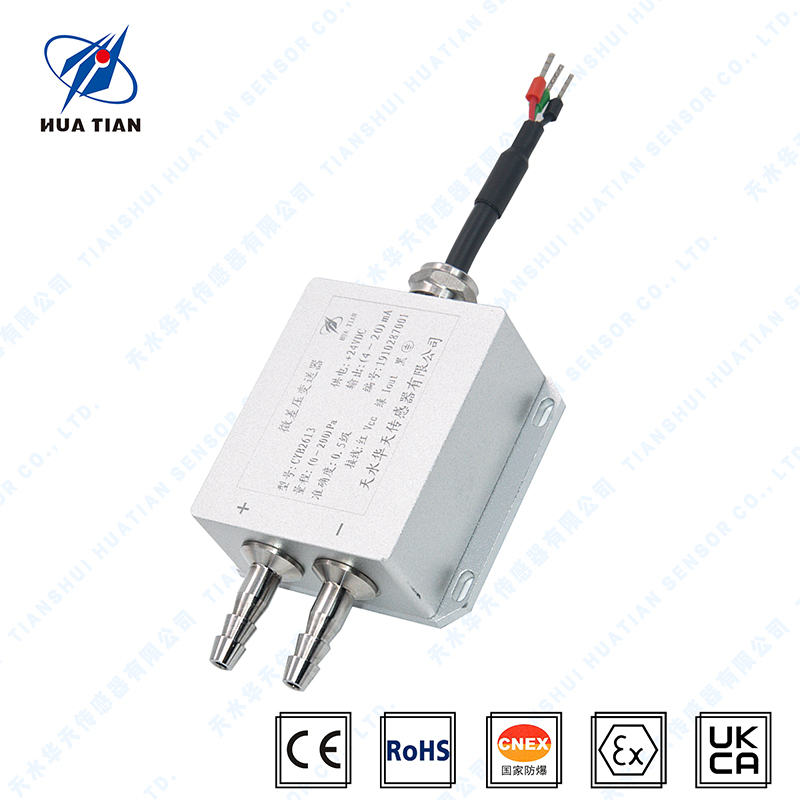

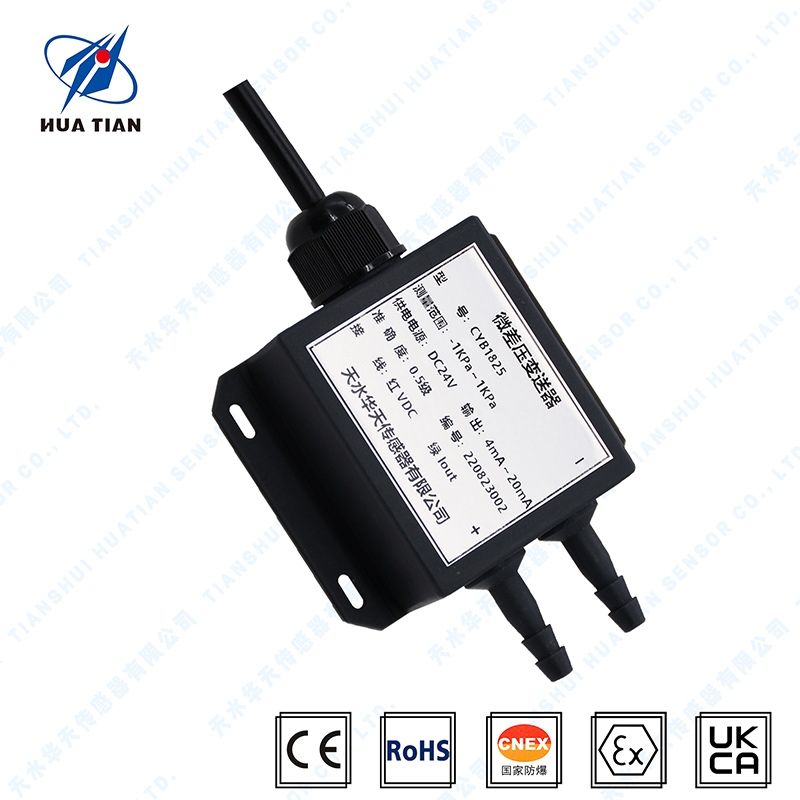

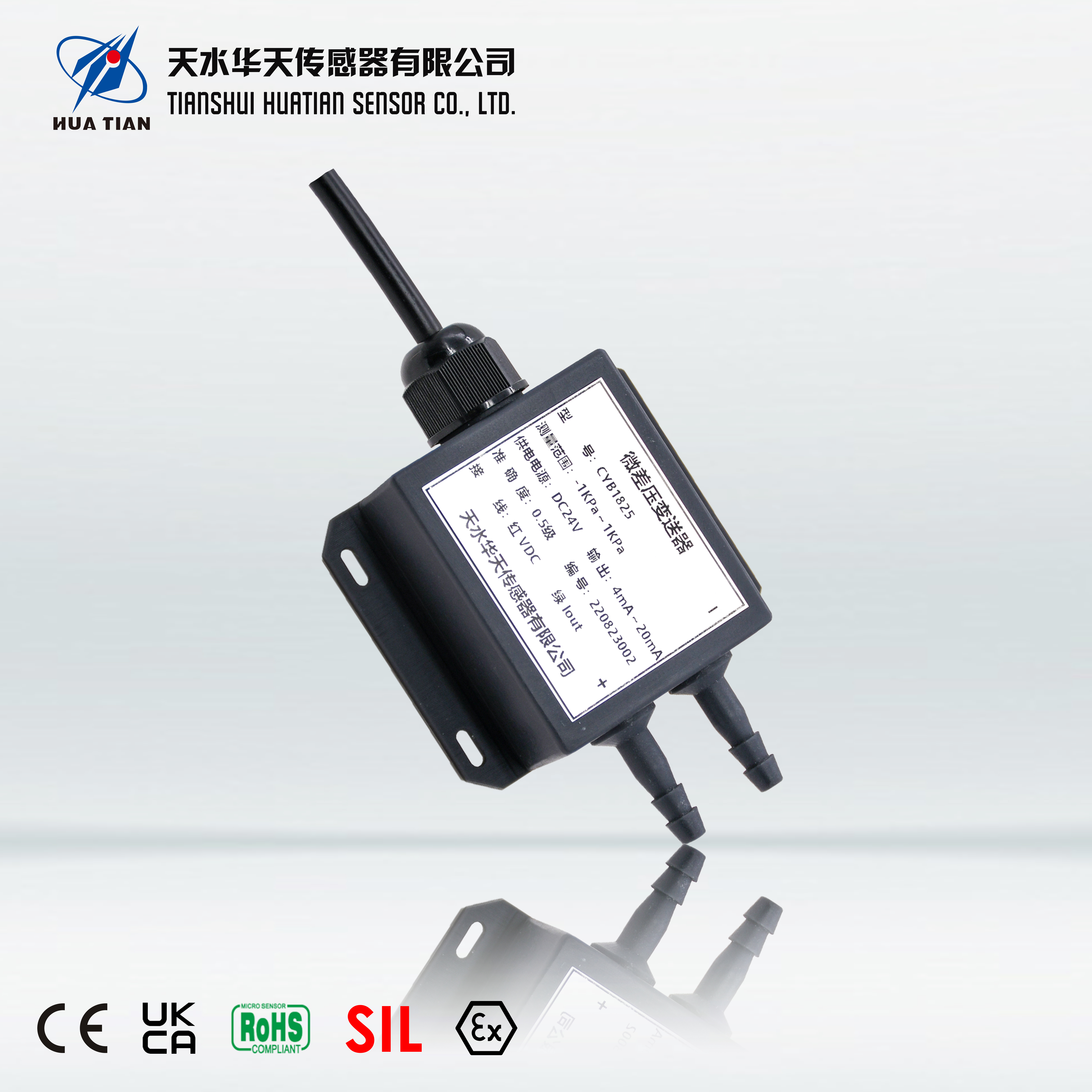

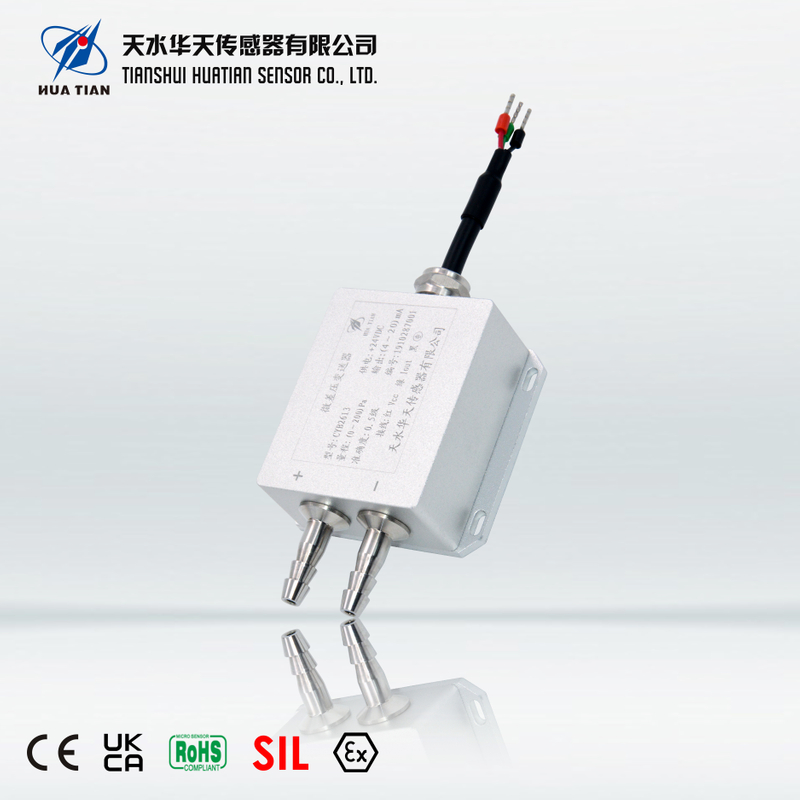

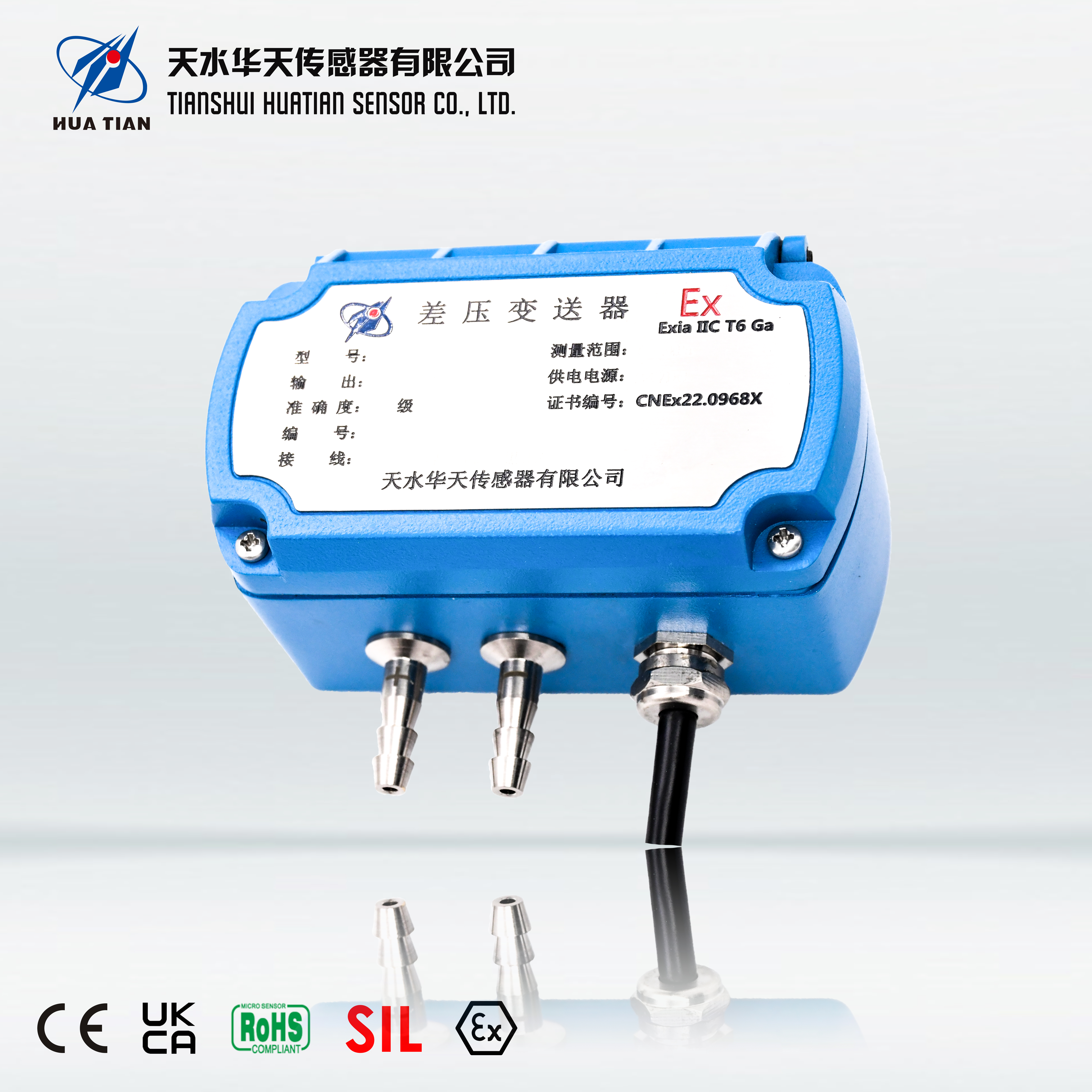

| Model | CYB1800 |
| Introduction | CYB1800 series micro differential pressure transmitter adopts silicon MEMS micro pressure chip. After temperature compensation, linear compensation, signal amplification, V / I conversion, auti-surge, reverse polarity protection and other transmission circuit signal processing, the transmitter output industrial standard 4mA-20mA and other signal. All digital calibration, no movable potentiometer, temperature drift performance, stability has been improved. This series of products adopt two isolation protection methods. Products with a range of less than 5kPa are mainly used for differential pressure measurement of non-corrosive gases; ranges of 5kPa and above are suitable for non-corrosive media measurement of stainless steel and sealing ring media. |
| Features | Form of pressure: Differential pressure(D) |
| Range: 0Pa～±100Pa, 500Pa … 1000Pa; 0kPa, 2kPa, 10kPa … 100kPa | |
| Overload capacity: ≤2 times | |
| Static pressure: ≤100kPa | |
| Electrical connection: Cable direct outlet | |
| Accuracy: ±0.25%FS, ±0.5%FS, ±1.0%FS | |
| Output signal: 4mA～20mA, 0V～5VDC, 0V～10VDC, RS485, I2C | |
| Response time: ≤3ms （10%～90%） | |
| Measuring medium: ＜5kPa, non-corrosive gas, ≥5kPa, fluids compatible with ss316L silicon | |
| Applicable | HVAC |
| Textile | |
| Chemical industry | |
| Medicine | |
| Metallurgy | |
| Food | |
| Electric power | |
| Environmental protection | |

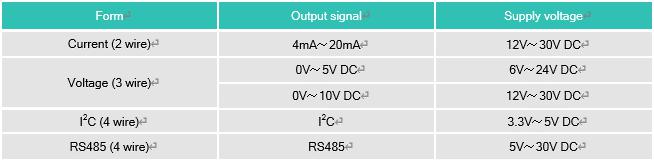

| Technical specifications | 1. Output signal and supply voltage |
  | |

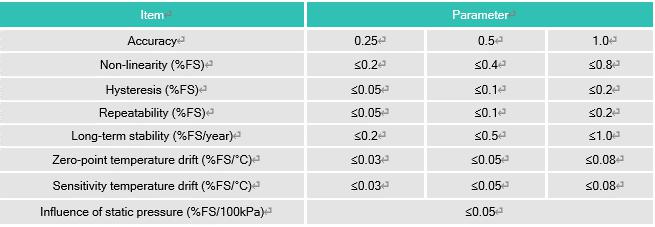

| 2. Product accuracy and performance index | |
 | |

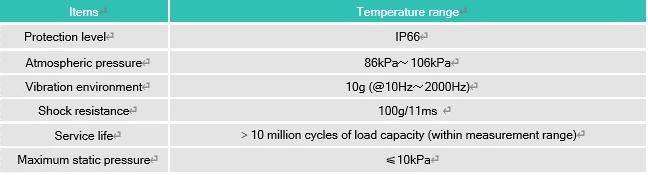

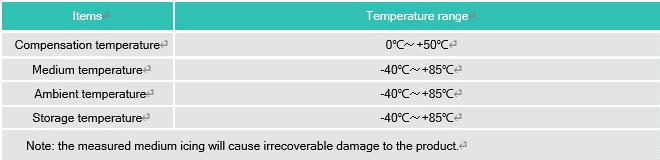

| 3. Environmental conditions | |
 | |
| 4. Operating conditions | |
 | |

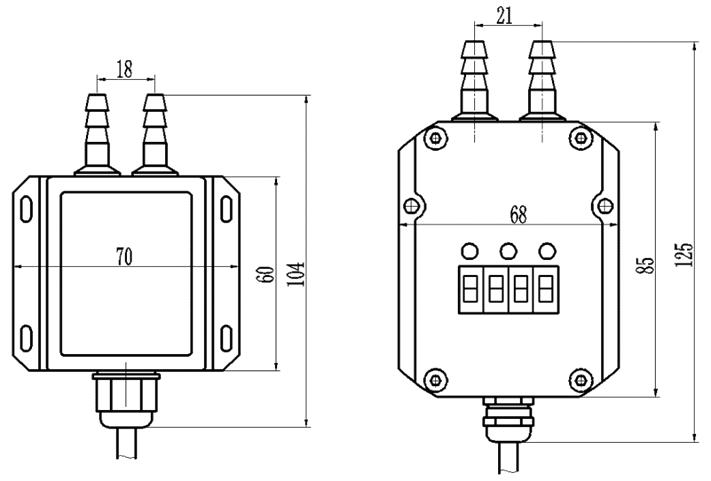

| 5. Typical appearance structure drawing (unit: mm) | |
| The following figure shows the typical product structure. Other structure please contact for consultation and customization. | |
 |
