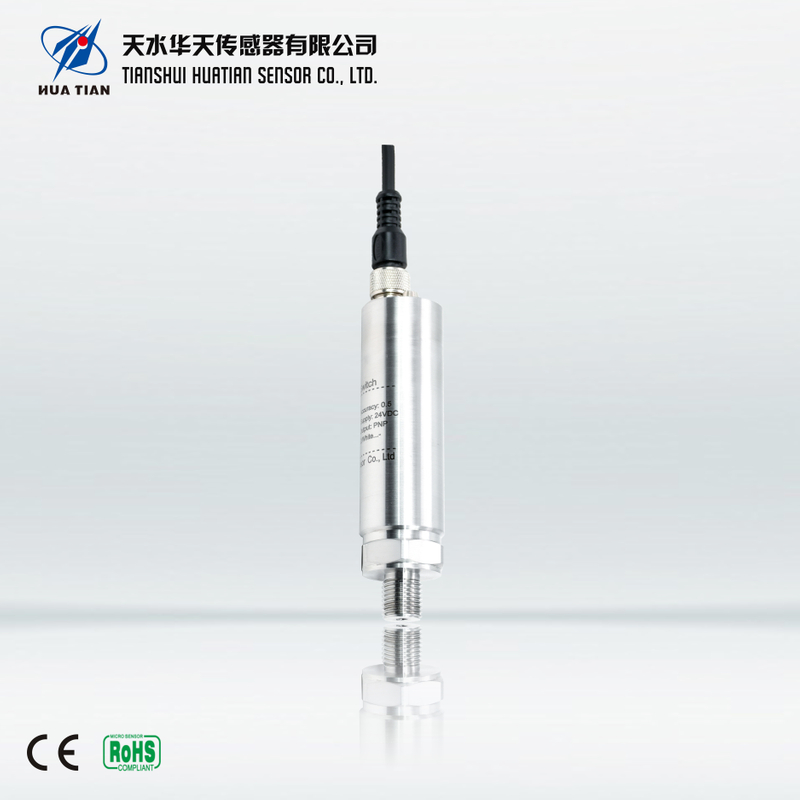

| Model | CYBK0101 |
| Introduction | CYBK0101 series pressure switch adopts our company high-reliable pressure sensor as the core sensitive component, after digital circuit correction and signal conditioning, then output standard switching signal, the switching point is set according to the customer's demand. This series of products can be used to indicate, monitor and control the pressure situation at the installation site. With high measurement accuracy, fast response speed, stable output, reliable performance, special requirements can be customized. Shell adopts stainless steel material, elegant, compact size, easy to install. |
| Features | Form of pressure: gauge pressure，absolute pressure |
| Range: -0.1kPa～0kPa～10kPa … 60Mpa | |
| Operating voltage: 12VDC~30VDC | |
| Medium temperature: -30℃～60℃ | |
| Output signal: relay contact | |
| Accuracy: ±0.25%FS, ±0.5%FS | |
| Response time: ≤3ms (10%～90%) | |
| Overload capacity: ≤200%FS (<10MPa); ≤150%FS (≥10MPa) | |
| Measuring medium: fluids compatible with ss304, ss316L or ceramics | |
| Applicable | Industrial Site |
| fire & water | |
| Deep Well Oil & Gas | |
| Chemical Energy | |
| Pipe Network Monitoring | |
| Hydrological Surveys | |
| Technical specifications | Product accuracy and performance index |
  | |

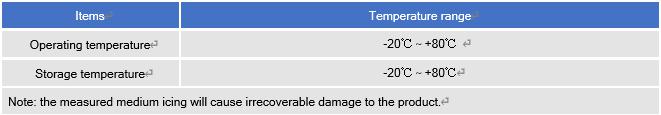

| Environmental conditions | |
 | |

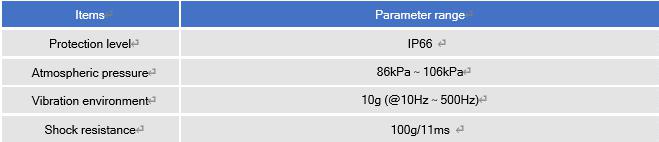

| Operating conditions | |
 | |

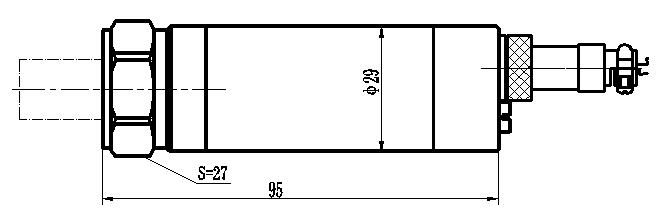

| Typical appearance structure drawing (unit: mm) | |
| The following figures show the typical product structure. Other structures please contact Huatian for consultation and customization. | |
 |
