| Model | CYB4300 |

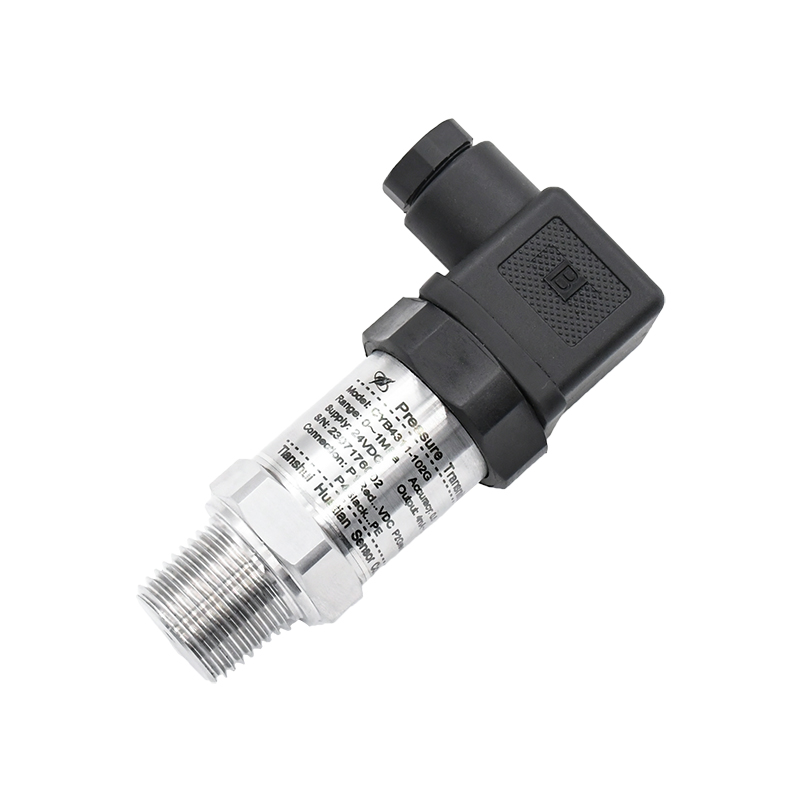

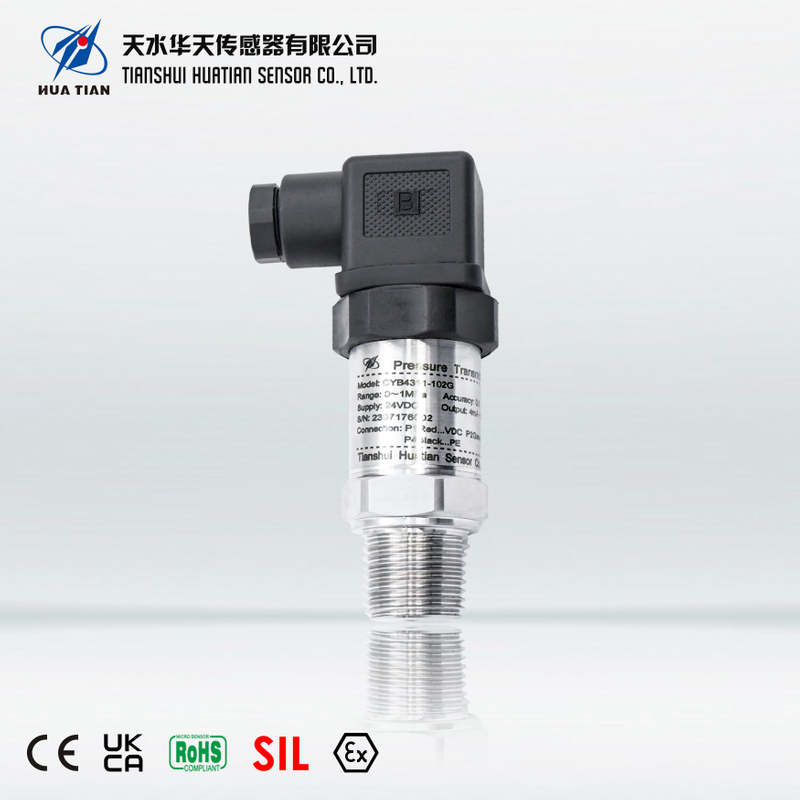

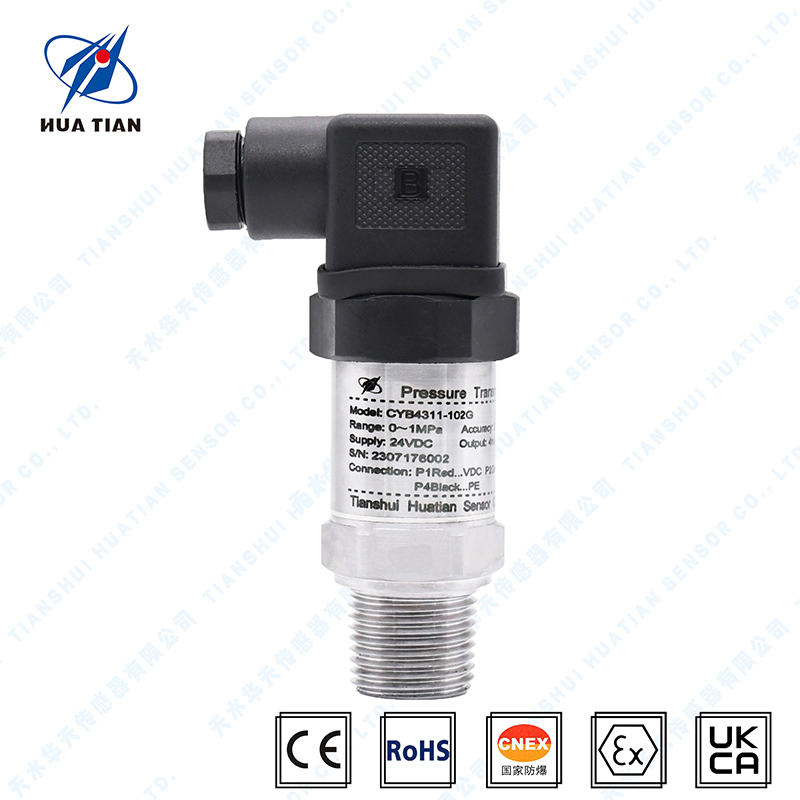

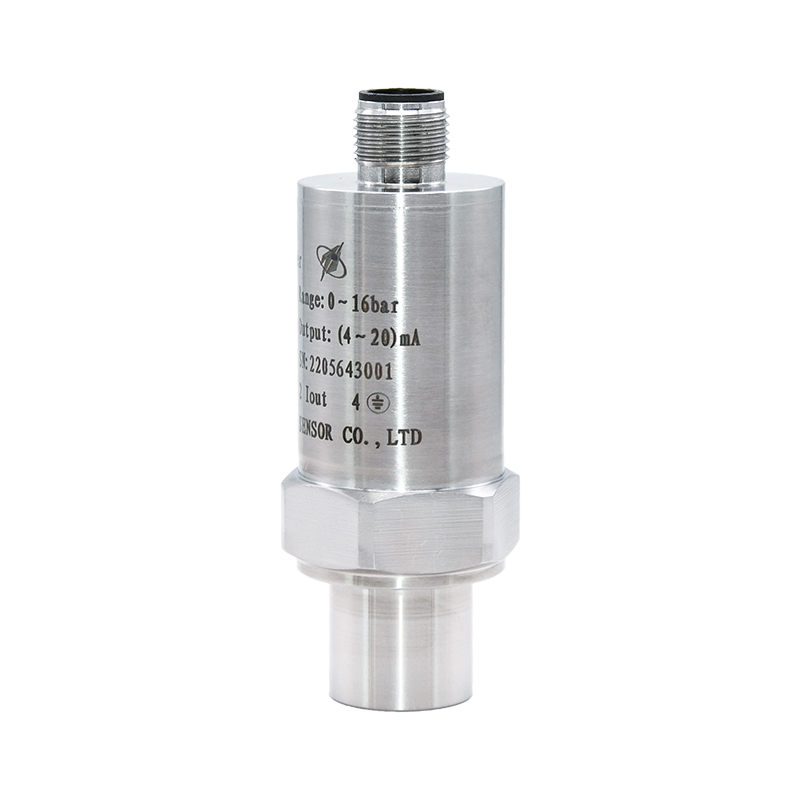

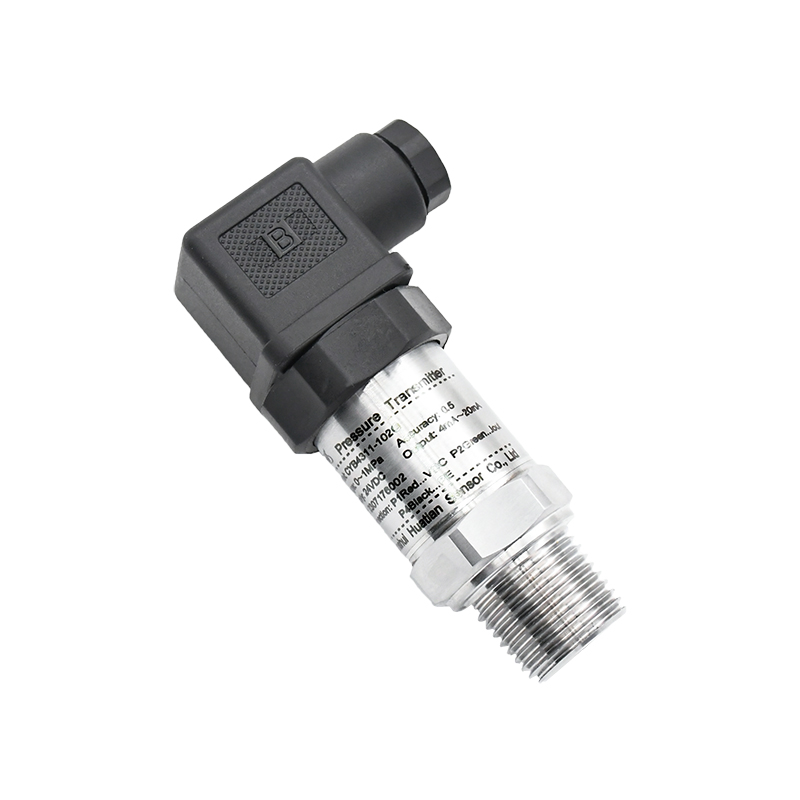

| Introduction | CYB4300 series pressure transmitter is a rod-shaped small profile pressure transmitter. Adopting high reliable metal sputtering thin film sensor as the sensitive core, after temperature compensation, digital circuit correction and signal conditioning, it output standard signal for industrial applications and networking. The medium measuring part is 17-4PH elastic stainless steel with good medium resistance. CYB4300 series pressure transmitter has undergone careful design, component screening, process verification and curing, cyclic loading stress relief, aging, environmental simulation testing and other processes to ensure that each product is stable and reliable. |
| Features | Form of pressure: gauge pressure，absolute pressure |
| Range: 0MPa～1MPa…150MPa | |
| Overload capacity: ≤200%FS (0～60MPa), ≤150%FS (70～200MPa) | |
| Electrical connection: Hirschman socket, Aviation socket, cable direct outlet | |
| Accuracy: ±0.1%FS (customized), ±0.25%FS, ±0.5%FS | |
| Output signal: 4mA～20mA, 0V～5VDC, 0V～10VDC, I2C, RS485 | |
| Response time: ≤3ms (10%～90%) | |
| Measuring medium: Fluids compatible with 17-4PH stainless steel | |
| Applicable | Metallurgy |
| Gas Networks | |
| Coal Mines | |
| Oil Refining | |
| Chemical Industry | |
| Oil Pipelines | |
| Shipping and Aeropace | |
| Automatic Control | |
| Output signal and supply voltage | |
  | |

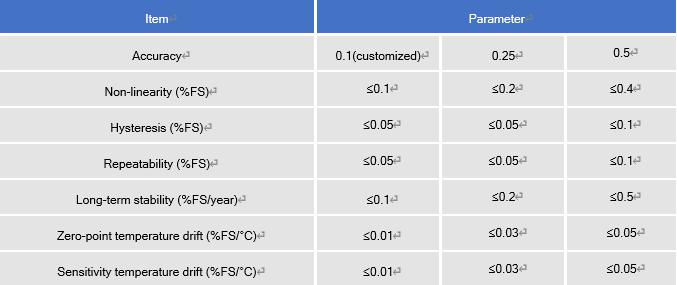

| Product accuracy and performance index | |
 | |

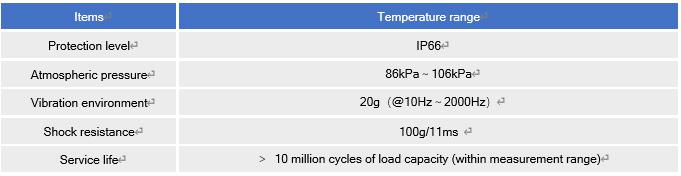

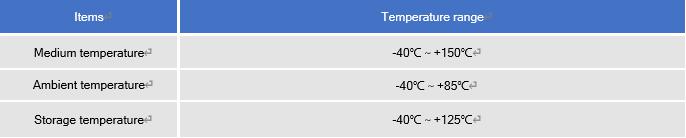

| Environmental conditions | |
 | |
| Operating conditions | |
 | |

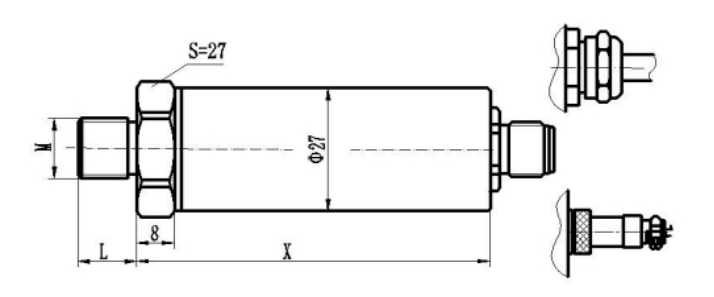

| Typical appearance structure drawing (unit: mm) | |
| The following figures show the typical product structure. Other structures please contact Huatian for consultation and customization. | |
 | |

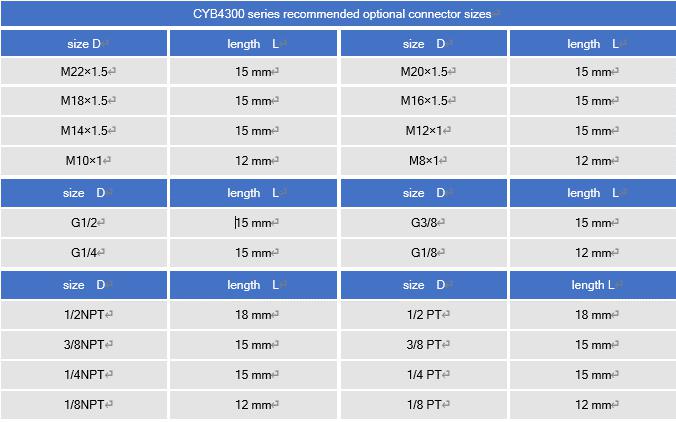

| Optional connector size description | |
 |
