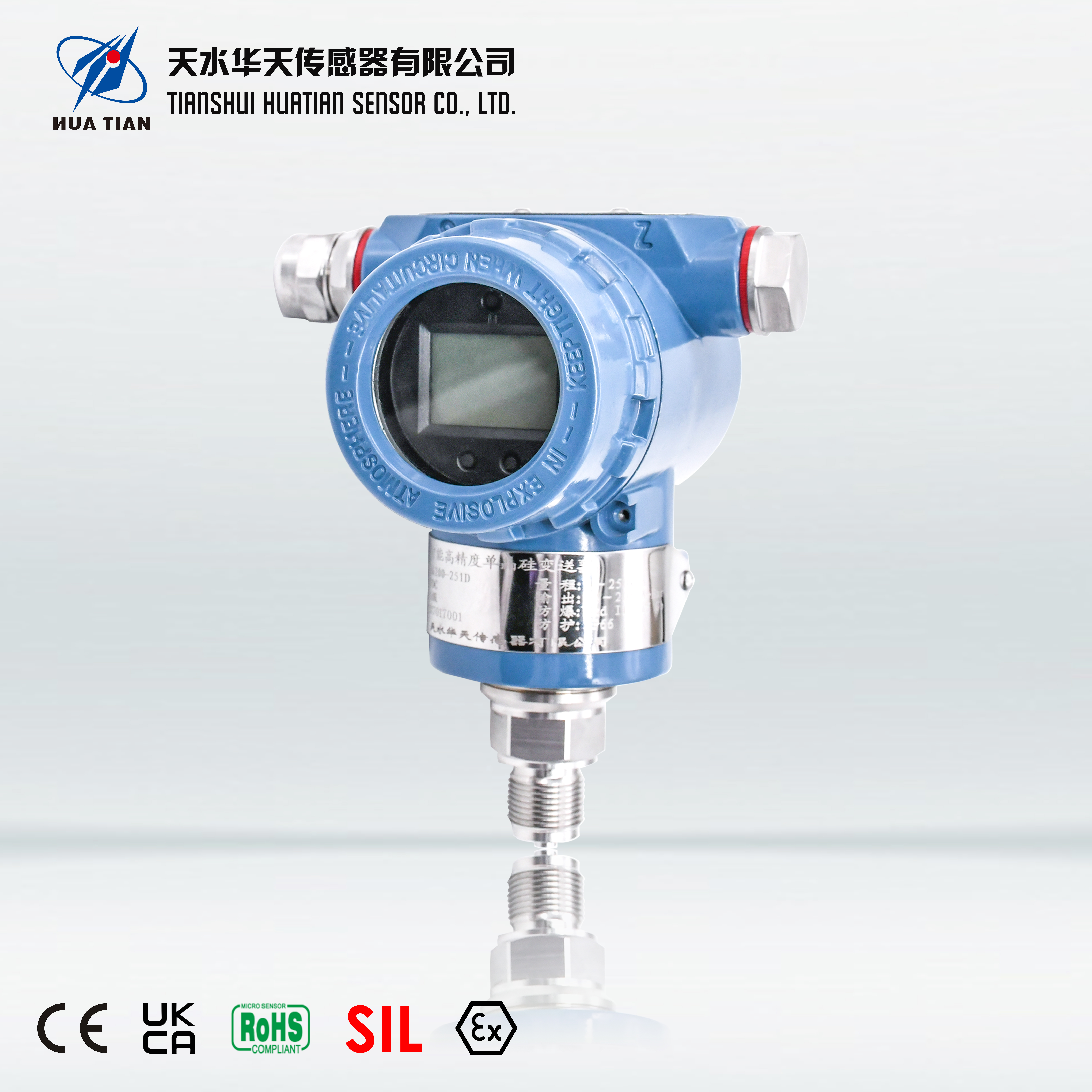

| Model | CYB6200 |
| Introduction | CYB6200 series monocrystalline silicon pressure transmitter a high-performance, high-precision pressure transmitter. This product adopts the domestic advanced monocrystal silicon production process, embedded intelligent signal processing module. After temperature compensation, the product has high measurement accuracy. The product has high measurement accuracy, good long-term stability, fast response rate, lightning protection and anti-interference protection, data backup and recovery functions. It can be applied to high stability and high accuracy of pressure and liquid level measurement in petrochemical, power transmission and other fields. The product supports LCD display, 4-20mA standard industrial analog signal output and HART communication protocol, which is convenient to use, safe and reliable, and supports PC terminal for configuration. |

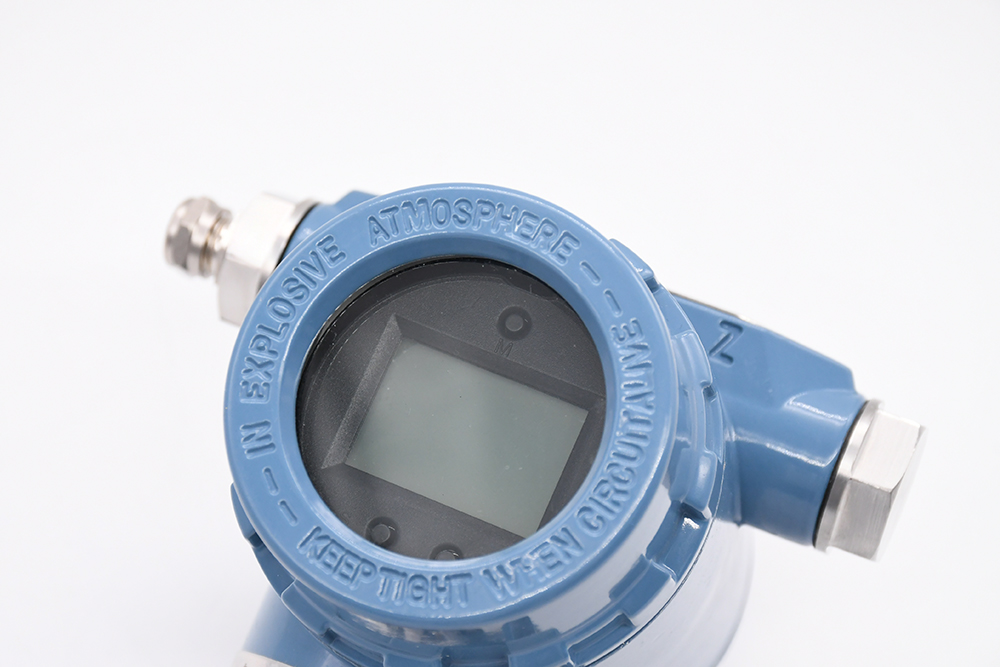

| Features | 5-digit LCD digital display with backlight for real-time pressure indication |
| key operation of the display block for data fine-tuning, range migration, data recovery, etc. | |
| standard HART communication, configurable via PC | |
| product with data backup and recovery function | |
| multiple display functions (Pa, kPa, MPa, bar, mbar, %, psi, mmH2O) | |
| monocrystalline silicon sensors away from the media contact surface for mechanical and thermal isolation | |
| built-in temperature-sensitive compensation elements increasing product accuracy and stability | |
| Applicable | Pulp and Paper |
| Machinery and Equipment / Shipbuilding | |
| Petroleum / Petrochemical / Chemical | |
| Steel / Nonferrous metals / Ceramics | |
| Electricity / City gas / other businesses | |
| Technical specifications | Electrical parameters |
| Power supply: General purpose: 24VDC (10.5~45) VDC Intrinsic safety explosion protection: 24VDC (10.5~26) VDC | |
| Output signal: 4~20mA, 4~20mA+HART (Mode can be set) Saturation current Upper limit: 20.8mA Lower limit: 3.8mA Alarm current Upper limit: 22.8mA Lower limit: 3.6mA | |
| Response time: 10ms | |
| Load resistance: 0~2119Ω working condition 250~600Ω HART communication | |
| Power consumption: ≤500mW@24VDC, 20.8mA | |
| Bridge resistance: 6k ±0.5kΩ | |
| Power line spacing: 15cm or more (Please avoid parallel wiring) | |
| Technical parameters | |
| Measurement medium: Liquid or gas Accuracy: ±0.1%(≥40KPa) ±0 .075% /±0.1% /±0 .25% Long-term stability: ≤ 0.1%FS/year Calibration Temperature: 20℃±5℃ Zero-point temperature drift: ≤±0.01%FS/℃ Sensitivity temperature drift: ≤±0.01%FS/℃ Compensation temperature: -30℃~70℃ Transmission distance: ≤1000 m Power supply impact: ≤ 0.005%FS/V Overpressure effects: ≤ 0.05% FS/10MPa Vibration effects: On arbitrary axes, 200HZ/g is 0.1%FS Location Impact: Between the horizontal and vertical positions approximately 250Pa Zero Migration: Migration within -20% to +20% of maximum range Protection grade: IP66 Temperature range of measuring medium: Silicon oil filled sensors: -40~120℃ Fluorine oil filled sensor: -45~160℃ Operating ambient temperature: -40~85℃, Integrated LCD display: -30~70℃ Operating ambient humidity: 5~100%RH@40℃ Storage ambient temperature: -40~110℃, Integrated LCD display: -30~70℃ | |
| Electromagnetic compatibility performance | |
  | |

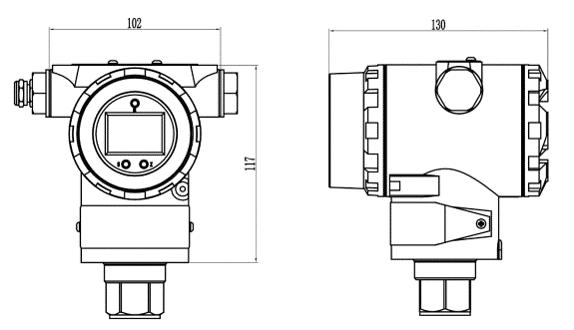

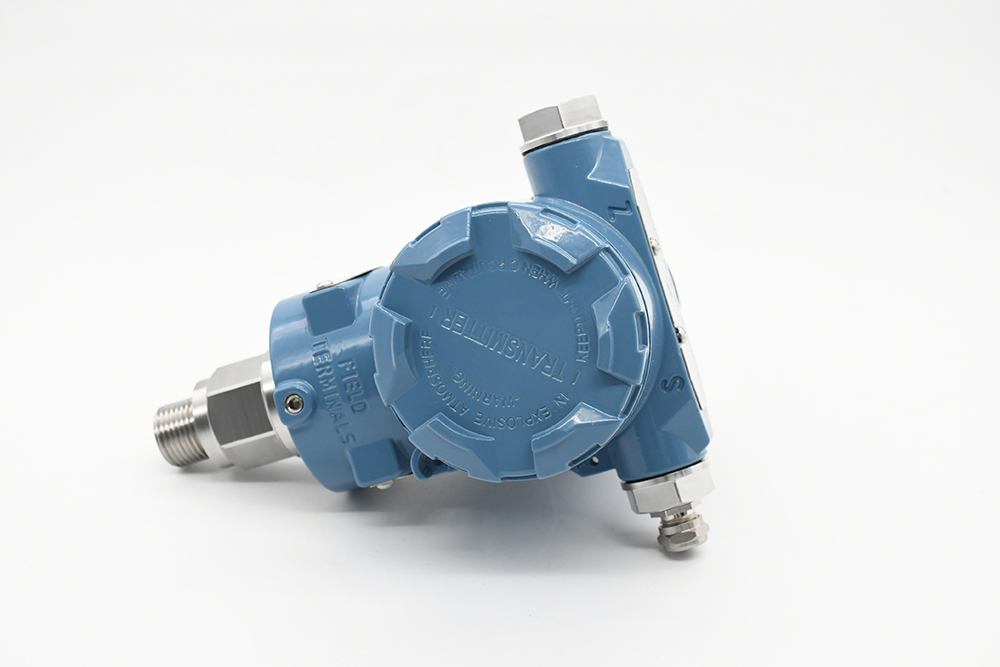

| Appearance | |
 |
