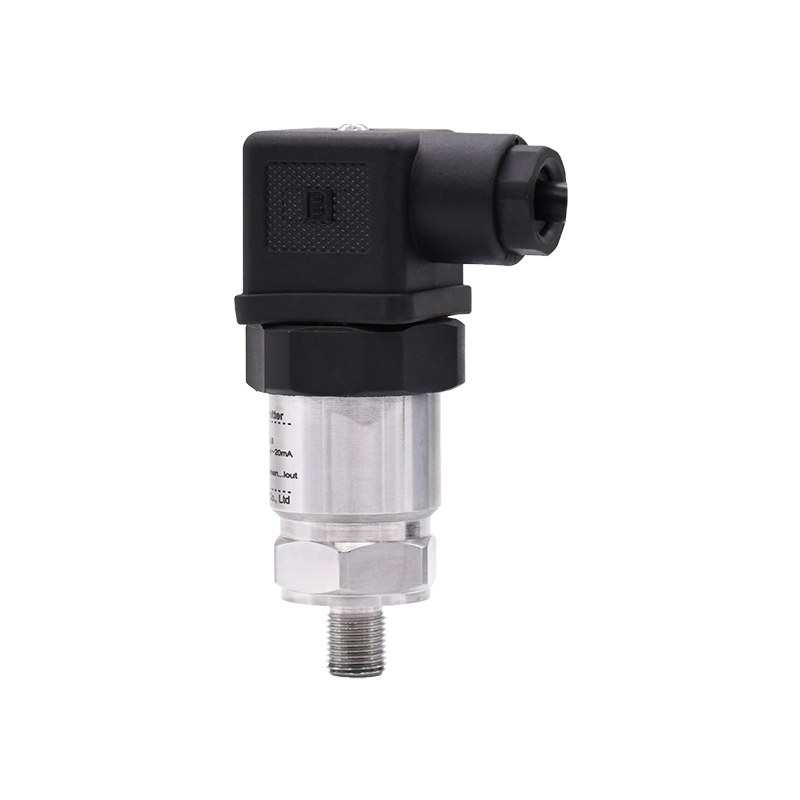

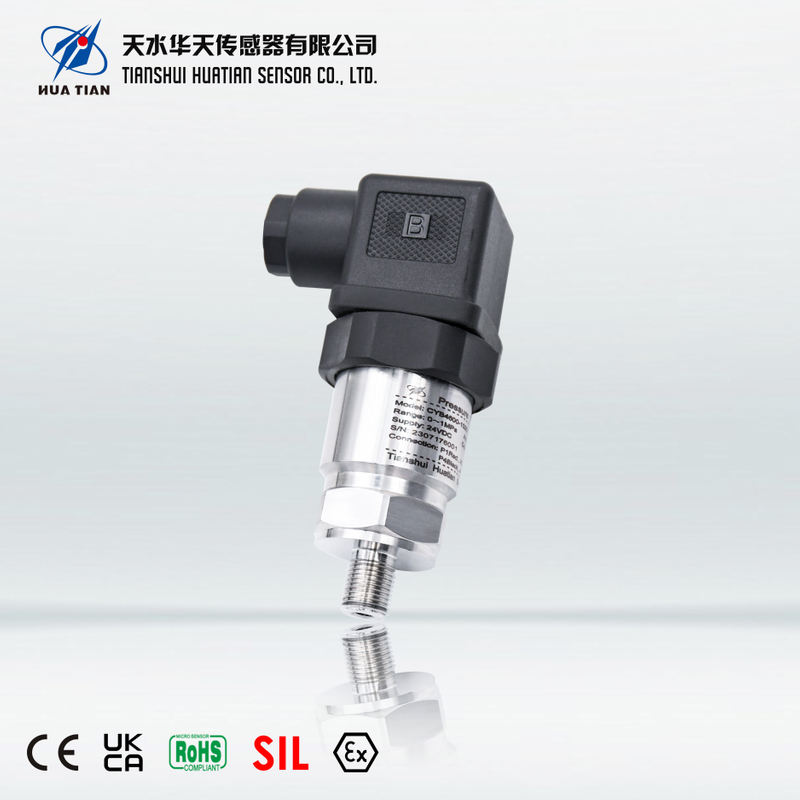

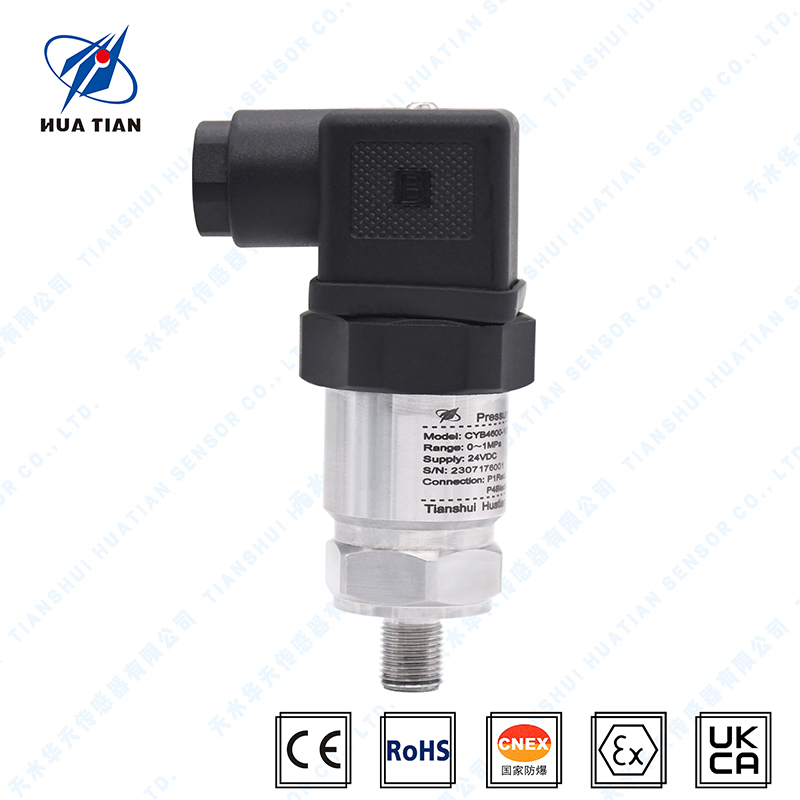

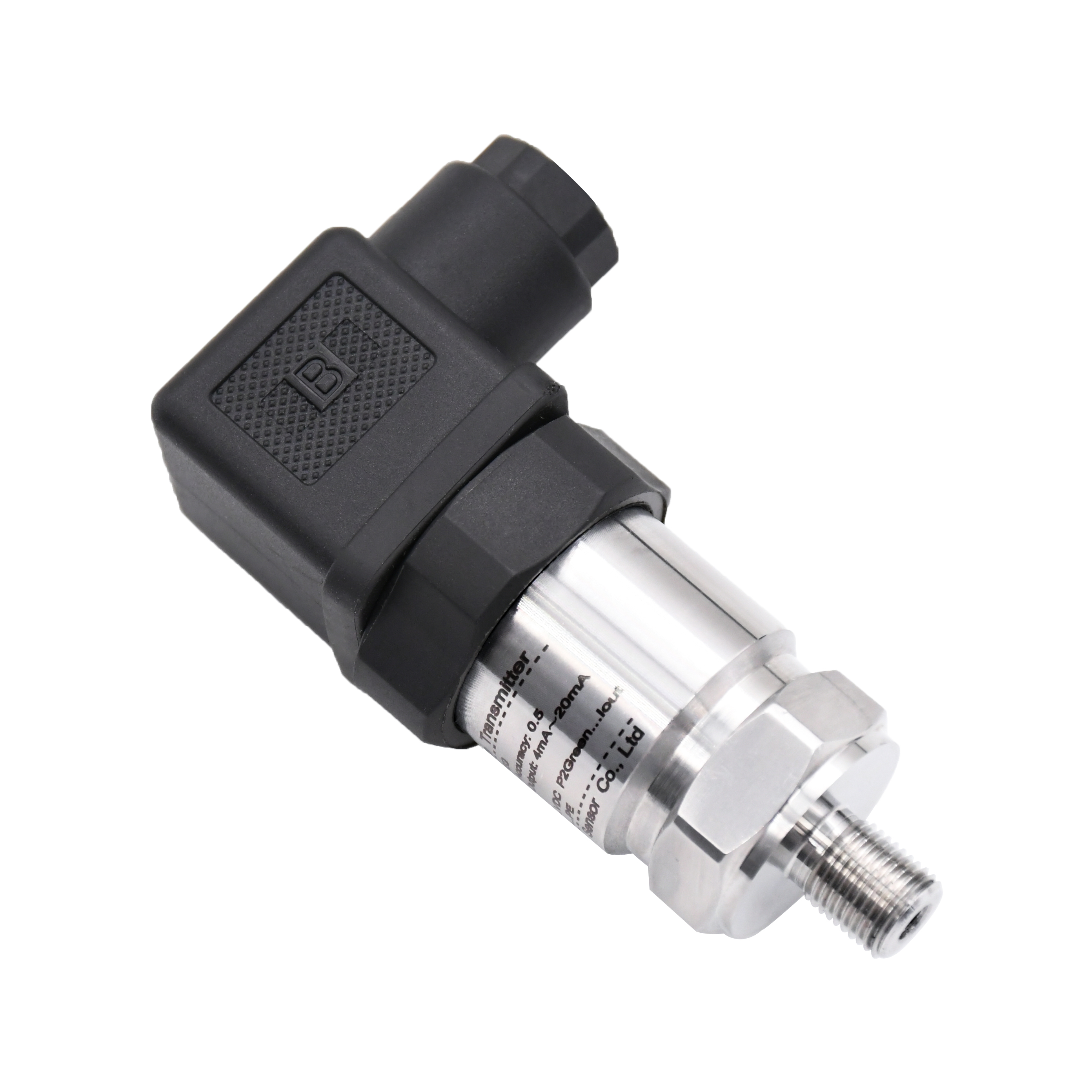

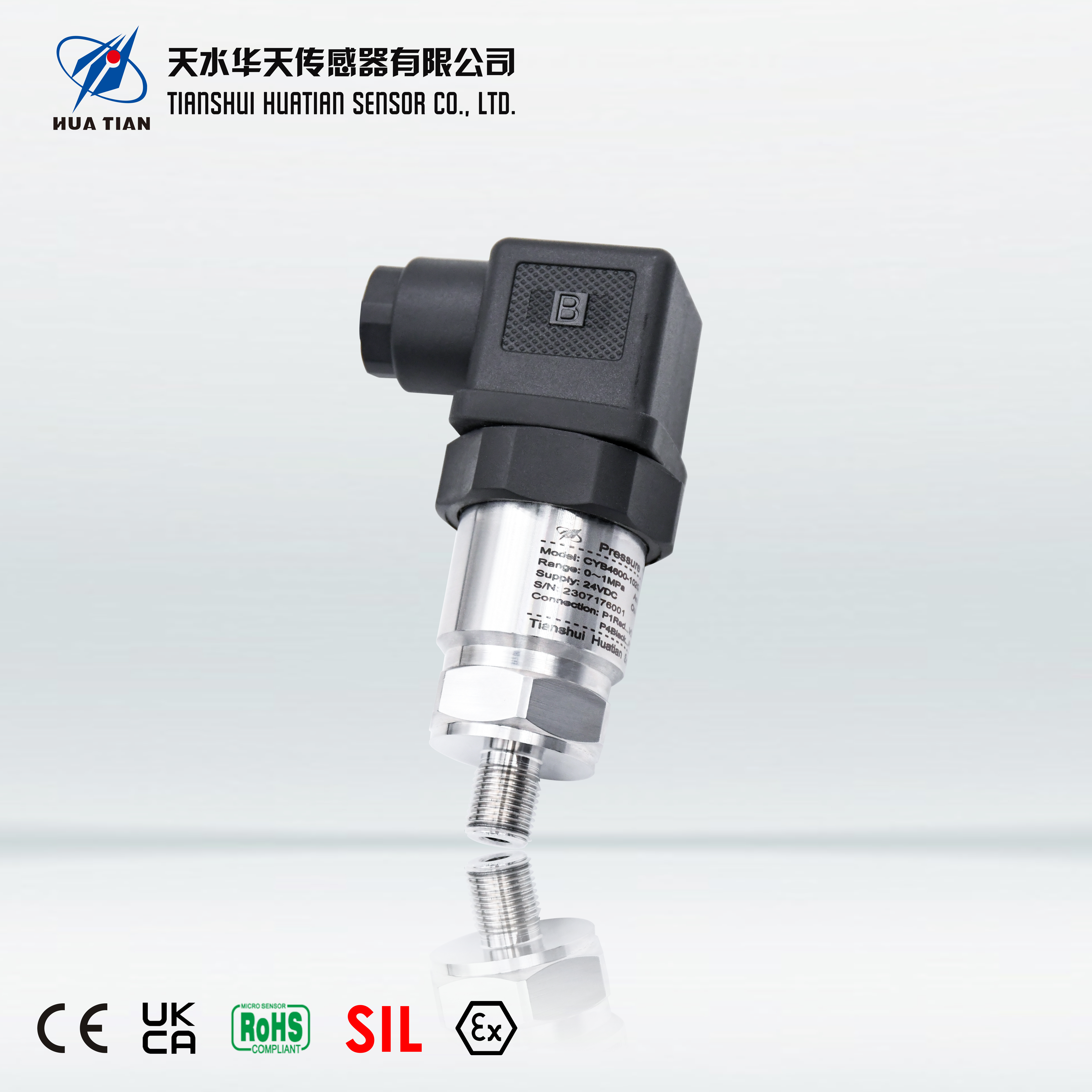

| Model | CYB4600 |
| Introduction | CYB4600 series is suitable for environmental protection, medical and health care, air conditioning and refrigeration systems and other general industrial application scenarios. The product selects high reliable ceramic piezoresistive pressure sensor, after temperature compensation, digital circuit correction and signal conditioning, then output standard industrial application and networking signals. CYB4600 series pressure transmitter after careful design, component screening, process verification curing, cyclic loading stress relief, aging, environmental simulation testing and other processes to ensure that each product is stable and reliable. |
| Features | Form of pressure: gauge pressure, absolute pressure |
| Range: -0.1MPa～0MPa … 40MPa | |
| Overload capacity: 200%FS | |
| Breakdown pressure: 300%FS | |
| Electrical connection: Packard socket, Hirschman socket, Aviation socket | |
| Accuracy: ±1%FS | |
| Output signal: 4mA～20mA, 0.5V～4.5VDC (others can be customized) | |
| Response time: ≤3ms (10%～90%) | |
| Measuring medium: compatible with ceramic, stainless steel and brass for liquids or gases | |
| Applicable | Air conditioning systems |
| Health care | |
| Environmental protection | |
| Refrigeration units | |
| Piping systems | |
| Automation control | |

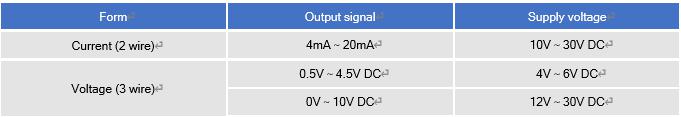

| Output signal and supply voltage | |
  | |

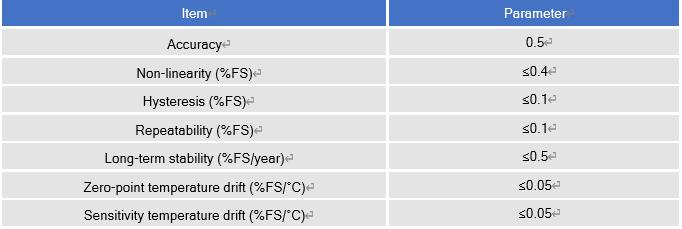

| Product accuracy and performance index | |
 | |

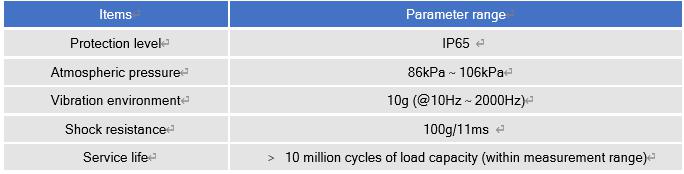

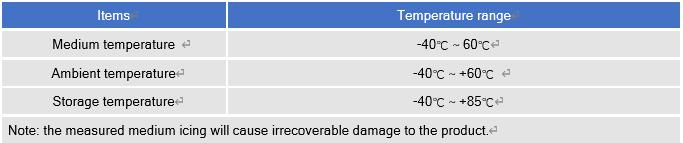

| Environmental conditions | |
 | |
| Operating conditions | |
 | |

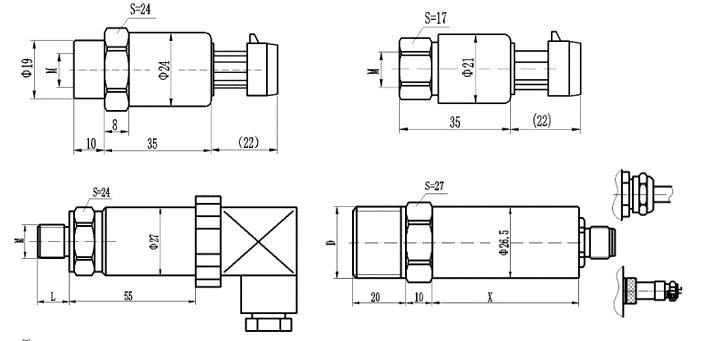

| Typical appearance structure drawing (unit: mm) | |
| The following figures show the typical product structure. Other structures please contact Huatian for consultation and customization. | |
 |
