| Model | CYB4201 |

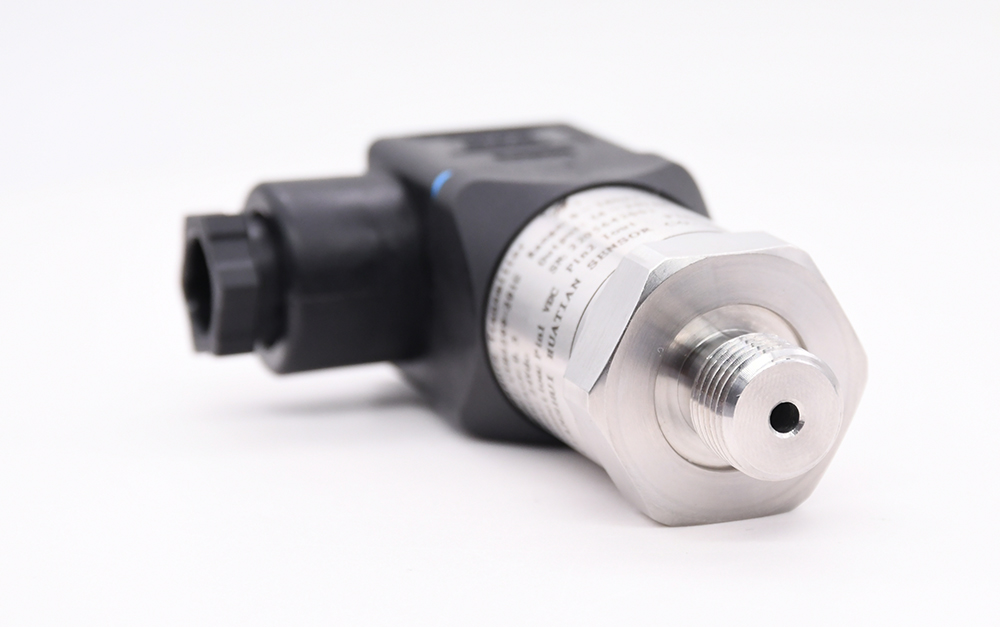

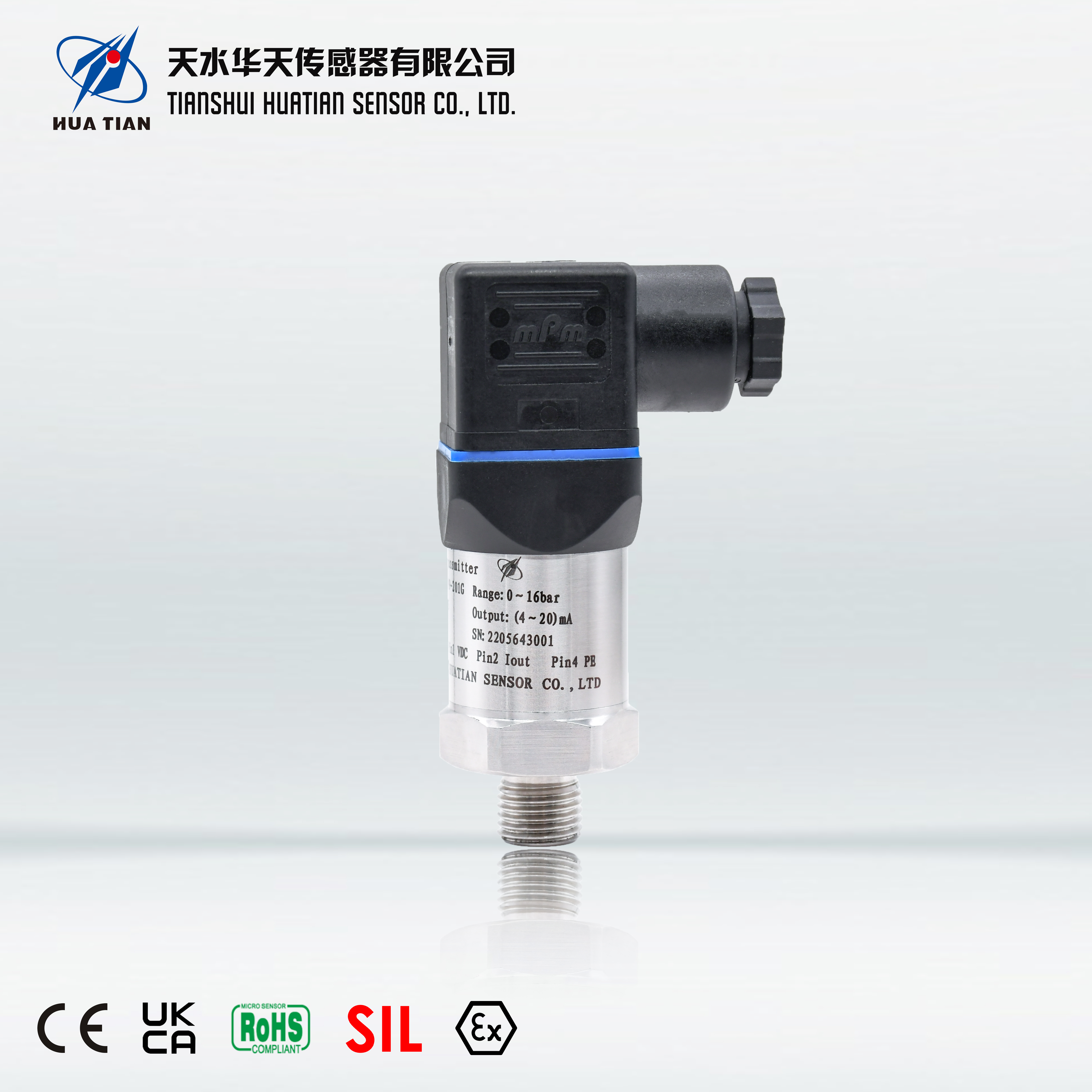

| Introduction | CYB4201 type pressure transmitter is a small form factor pressure transmitter. The highly reliable silicon piezoresistive pressure sensor etc. is selected as the sensitive core, and after temperature compensation, digital circuit correction and signal conditioning, the standard industrial application and networking signal is output. Good electromagnetic compatibility design, in the acquisition of reliable performance at the same time both high-cost performance. CYB4201 type pressure transmitter after careful design, component selection, process verification curing, cyclic loading stress relief, old refining, environmental simulation test and other processes to ensure that each product is stable and reliable. |
| Features | Pressure type: gauge pressure, absolute pressure, sealed gauge pressure |
| Range: 0MPa ~ 1MPa ... 40MPa (customizable) | |
| Overload capacity: ≤ 1.5 times | |
| Electrical connection: hirschmann socket, aviation socket | |
| Accuracy: ±0.5%FS | |
| Process connection: G¼ (other interfaces can be customized) | |
| Output signal: 4～20mA, 0～5VDC, 0～10VDC, I2C | |
| Structural characteristics: fully welded, gauge pressure product with breathable membrane | |
| Measuring medium: air, water, mixed oil and other fluids compatible with 316L stainless steel | |
| Applications | Water Treatment Refrigeration systems Pumps and compressors Hydraulic pneumatic Measurement and control Vessels Machinery and equipment |

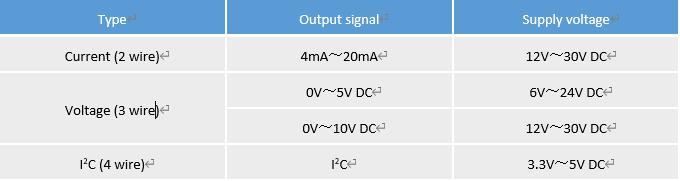

| Technical specifications | Output signal and supply voltage |
  | |

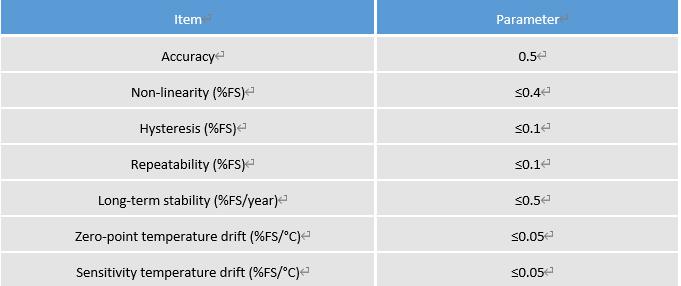

| Parameter of production | |
 | |

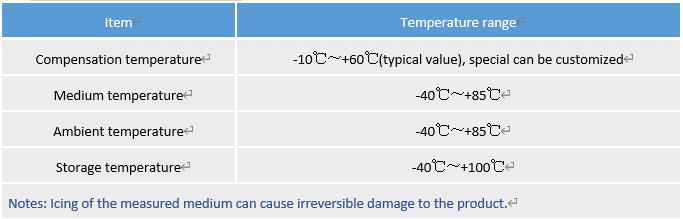

| Environmental conditions | |
 | |

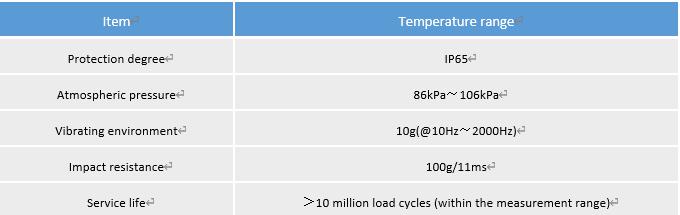

| Working conditions | |
 | |

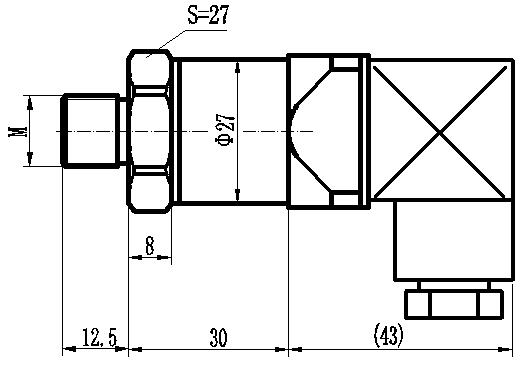

| Typical external structure drawing (unit: mm） | |
 |
